Page 67

Rockwell Automation Publication PROCES-UM002A-EN-P - July 2014
67
Visualization
Chapter 5

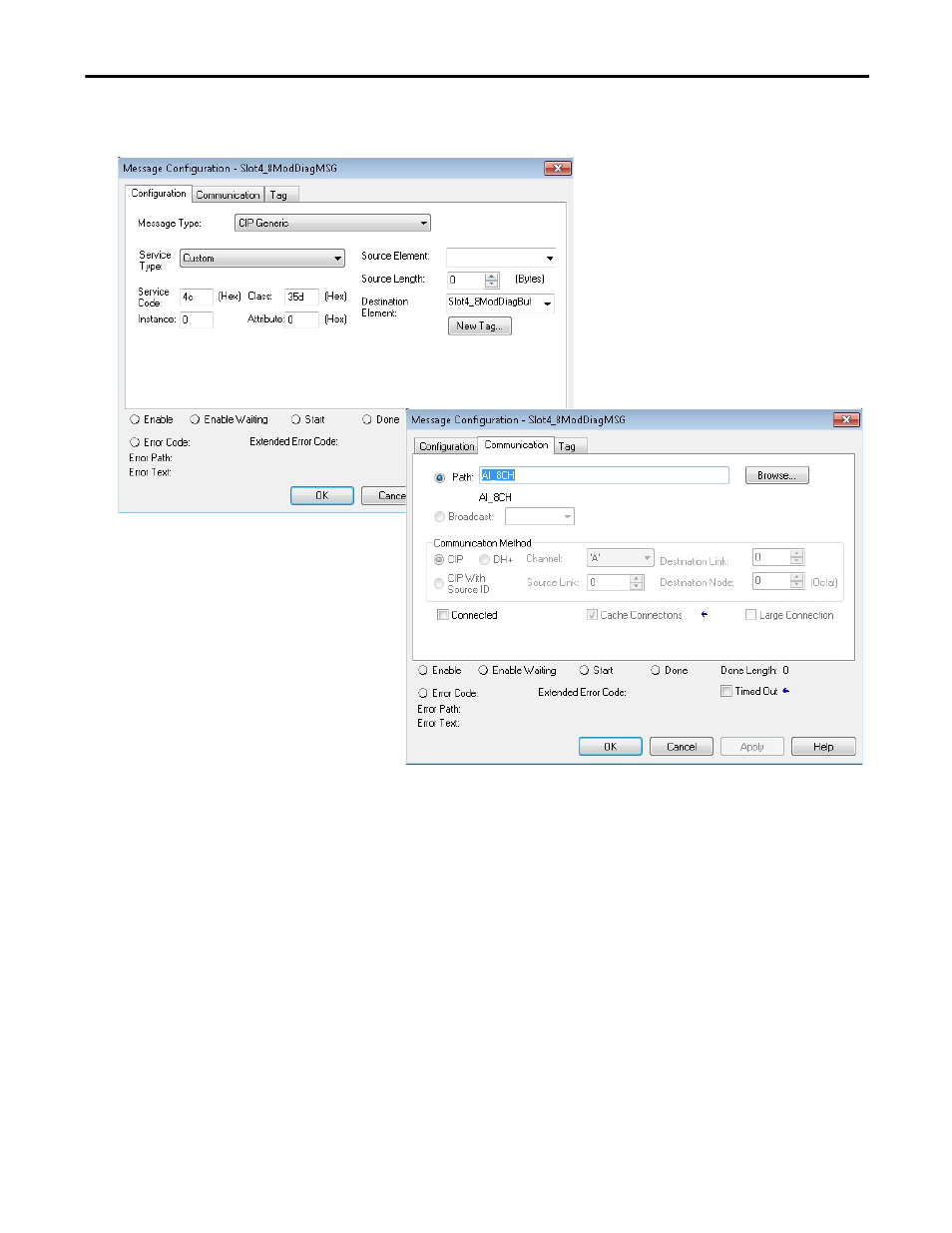

• Configure the Ref_ModDiagMSG tag so the path points to the Analog
HART Interface module in the chassis.
Configure I_AB56IFxH_Chan
Make the following modifications to the I_AB56IFxH_Chan Add-On
Instruction.
• You must create the backing tag. Follow a system or naming convention for
your application to indicate the channel of the analog input module that it
is referencing.
