Deltabar S Differential Pressure
Appendix I
Advantages:
• Standard operating pressures: 160 bar and 420 bar
• High long-term stability
• Very high single-sided overload resistance
• Second process barrier (Secondary Containment) for enhanced integrity

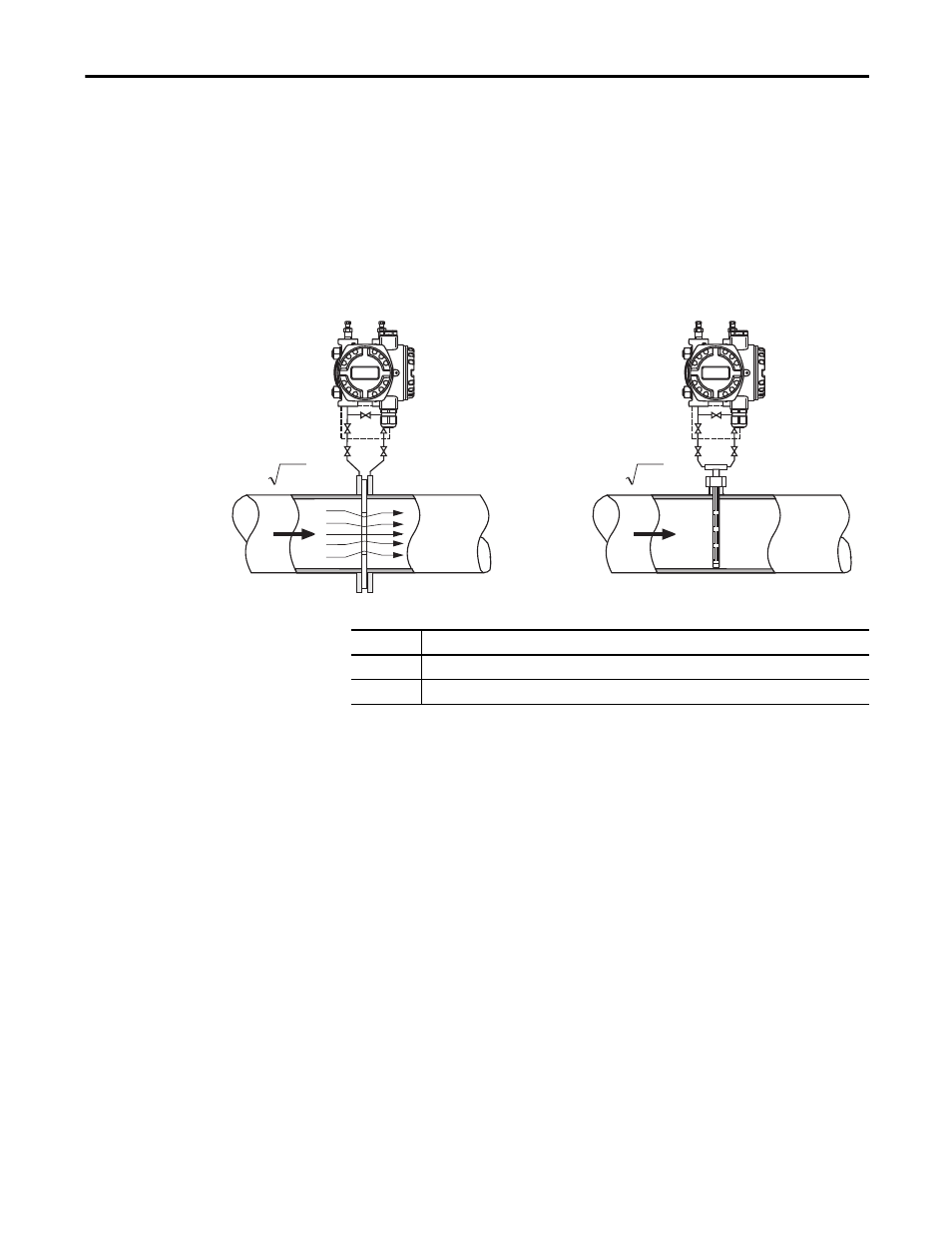

The following is an example of flow measurement with Deltabar S and primary
element. The left is the Orifice place and the right is the Pitot tube.
Q
Q
p
1
p
1
p
2
p
2
Q ~
Δp
Q ~
Δp
+
+
–
–
Item
Description
Q
Flow
p
Differential pressure, p = p1 - p2
