Appendix H
Cerabar S Pressure Transmitter
A Ceramic measuring diaphragm is used for the Cerabar S PMC71 (Ceraphire®).
The Ceramic sensor is a dry sensor, i.e. the process pressure acts directly on the
robust ceramic diaphragm and deflects it. A pressure-dependent change in
capacitance is measured at the electrodes of the ceramic carrier and the
diaphragm. The measuring range is determined by the thickness of the ceramic
diaphragm.
Advantages:
• Guaranteed overload resistance up to 40 times the nominal pressure
• Thanks to highly-pure 99.9% ceramic (Ceraphire®, see also
"www.endress.com/ceraphire")
– extremely high chemical resistance compared to Alloy
– less relaxation
– high mechanical stability
• Suitable for vacuums
• Second process barrier (Secondary Containment) for enhanced integrity
• Process temperature up to 150°C (302°F)

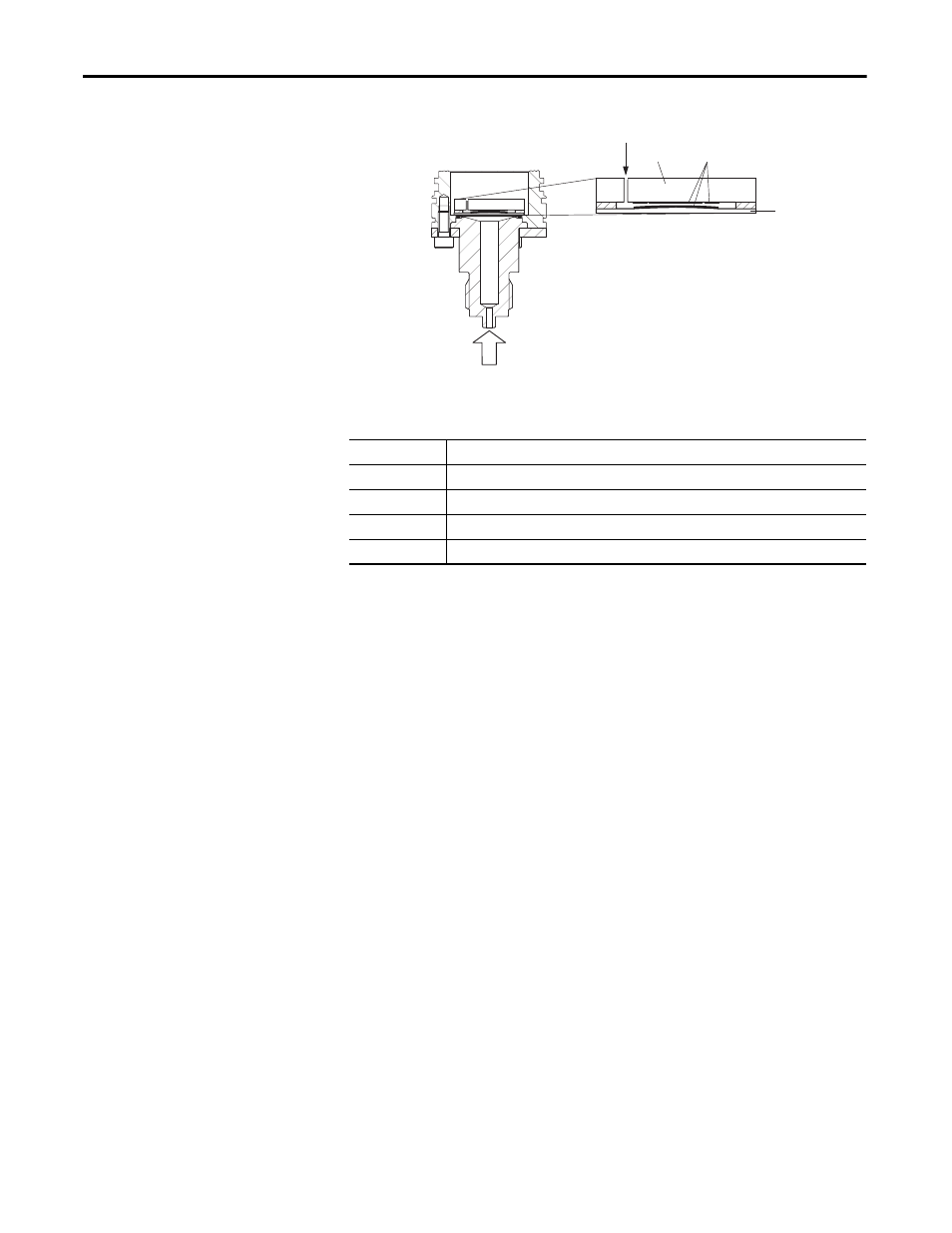

Item
Description
1
Atmospheric vent (gauge pressure only)
2
Ceramic substrate
3
Electrodes
4
Ceramic diaphragm
p
➃
➂
➀
➁
