Chapter 2
Configure the HART Device in RSLogix 5000 Programming Software
To configure the I/O module, follow these steps within the configuration tree.

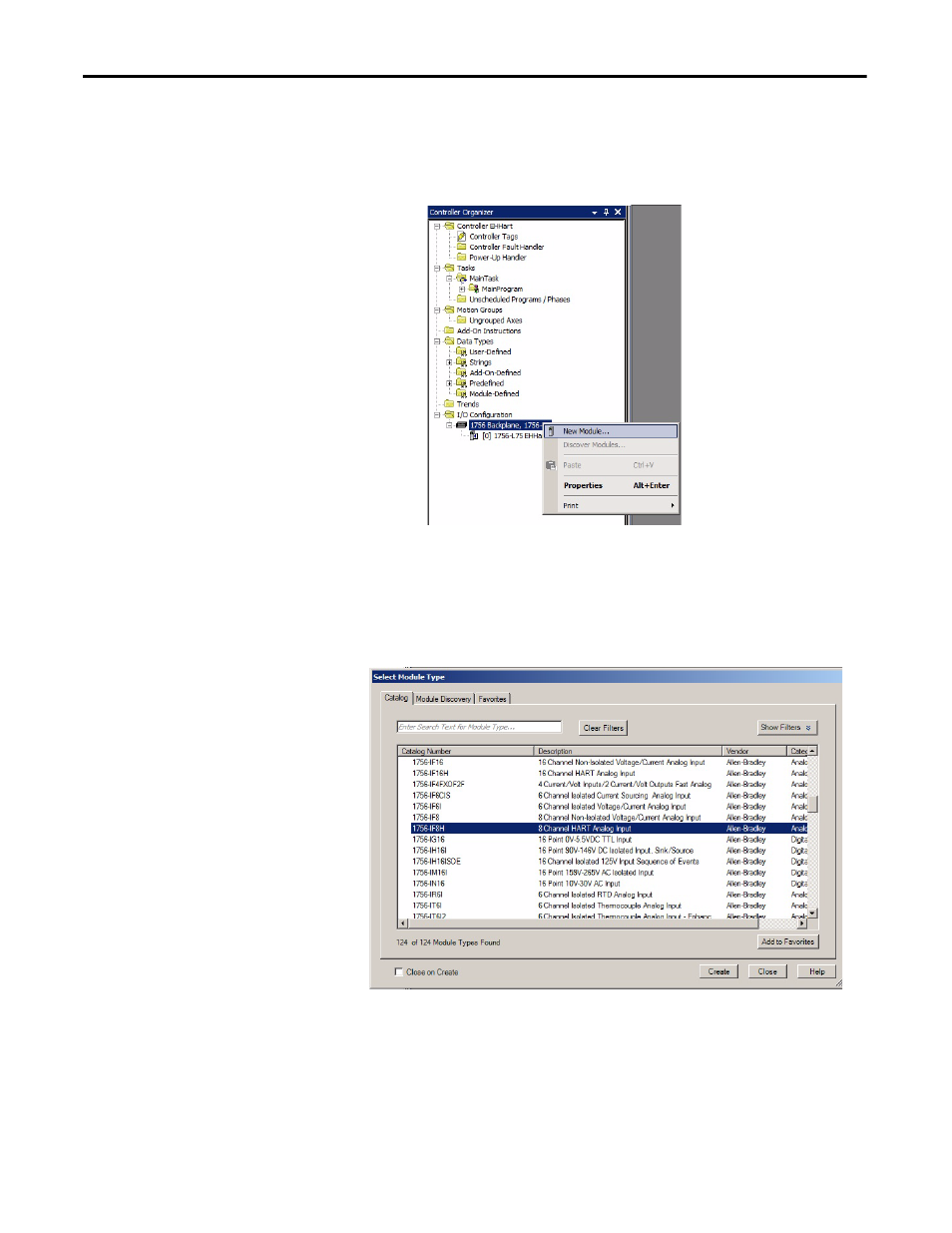

1. From the configuration tree, right click the 1756 backplane and choose
New Module.
If the controller communicates with the I/O module over a network, the
network interfaces must be added to the configuration tree before adding
the I/O module.
2. From the list, select the 1756-IF8H input module.
