Cerabar S Pressure Transmitter
Appendix H
Measured Variables

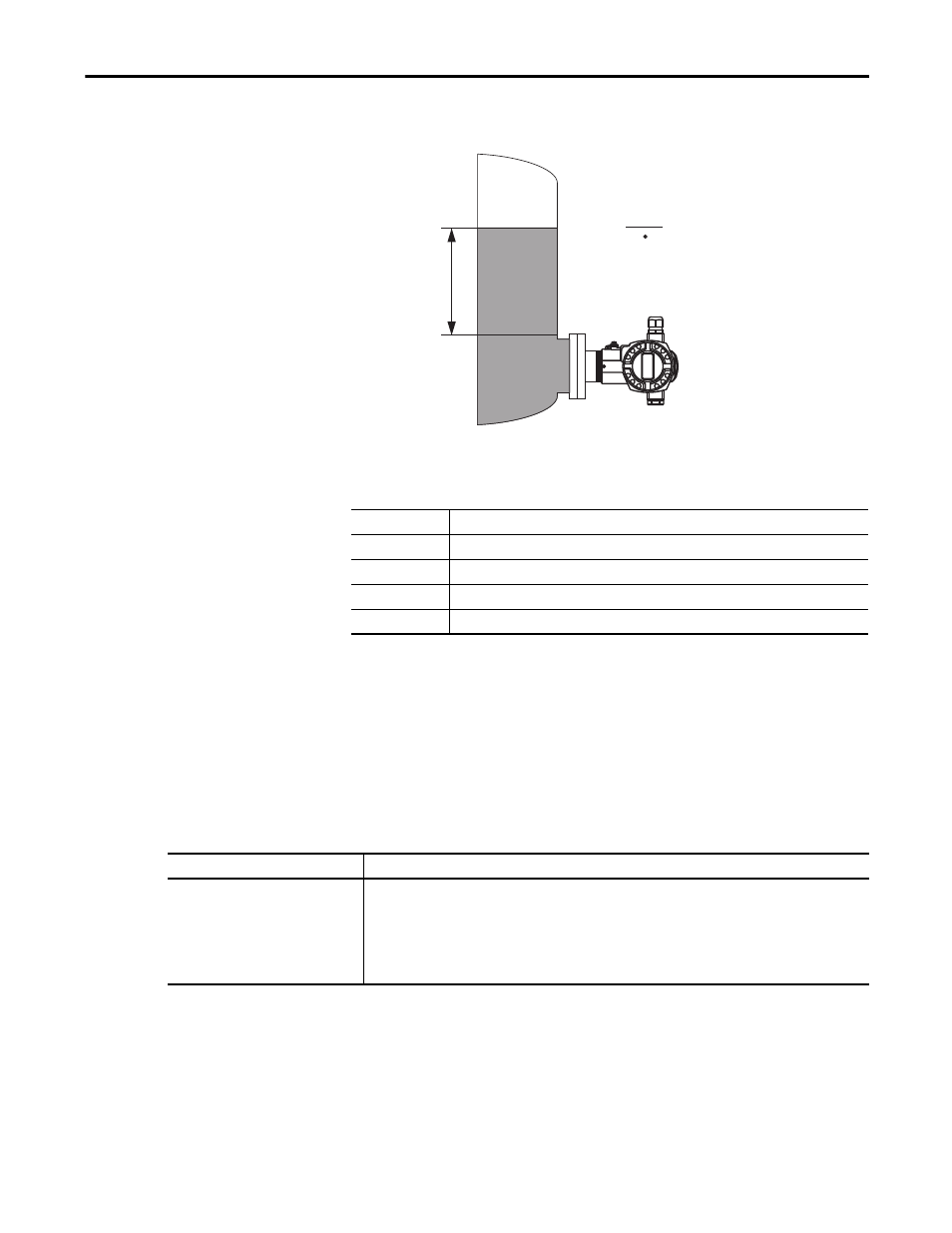

Absolute pressure and gauge pressure, from which level (level, volume or mass) is
derived.
Signals from Instrument to Control System
h =
p
ρ
g
h
Item
Description
h
Height (level)
p
Pressure
r
Density of the medium
g
Gravitation constant
Signal
Details
Output Signal
4...20mA with superimposed digital communication protocol HART 5.0, 2-wire
Options:
• Maximum alarm: can be set from 21...23 mA
• Keep measured value: last measured value is kept
• Minimum alarm: 3.6 mA
