Chapter 5
Visualization
• Configure Ref_ChanData and Ref_ChanDiag to point to the appropriate
array channel position from the tags created in conjunction with
I_AB56IF8H.

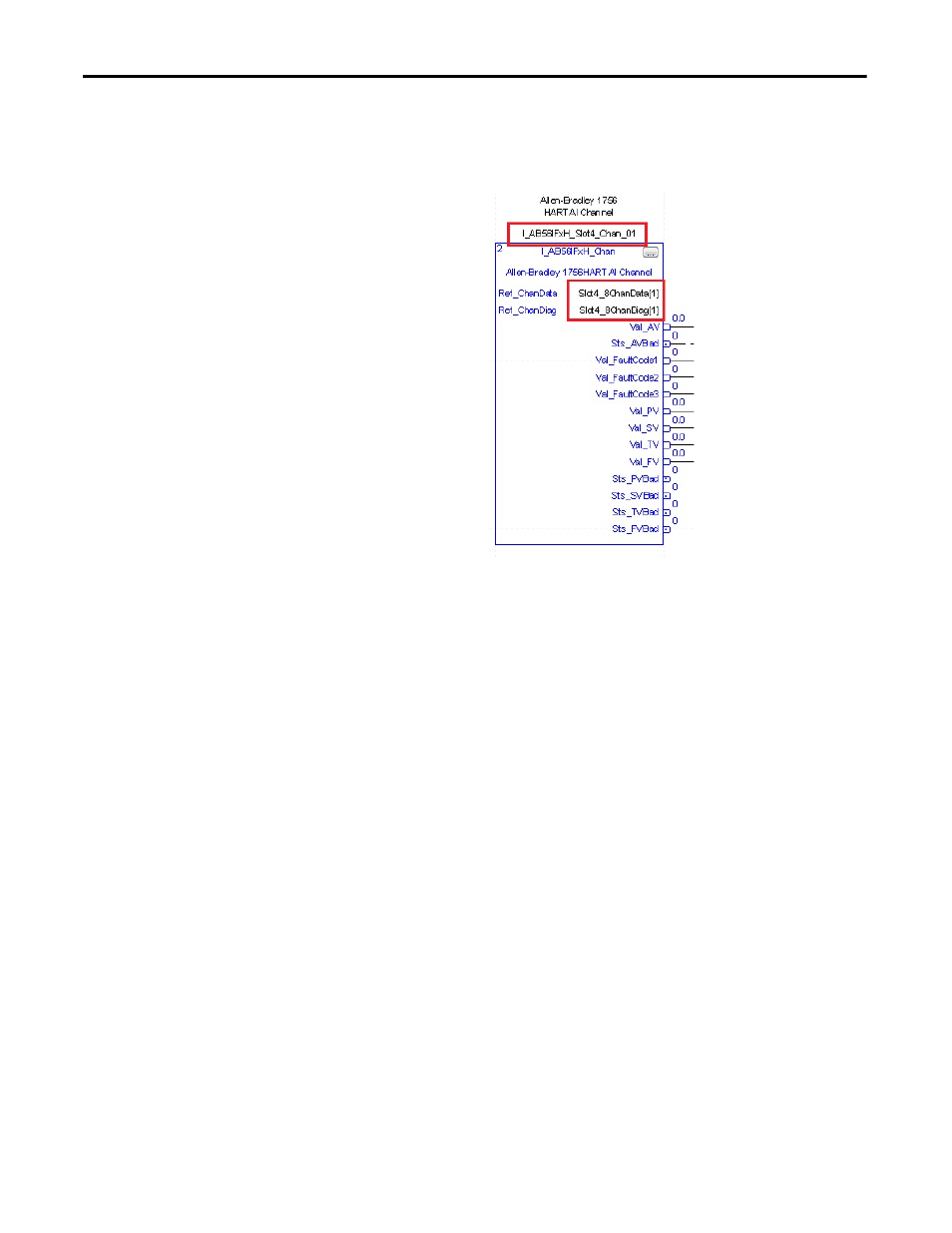

Configure
P_AIn56H
Make the following modifications to the P_AIN56H Add-On Instruction.
• You must create the backing tag. Follow a system or naming convention for
your application to indicate the channel of the analog input module that it
is referencing.
• Configure Ref_DevInfo to point to the appropriate array channel position
from the tags created in conjunction withI_AB56IF8H.
