Dimensions
Chapter 3
3-35

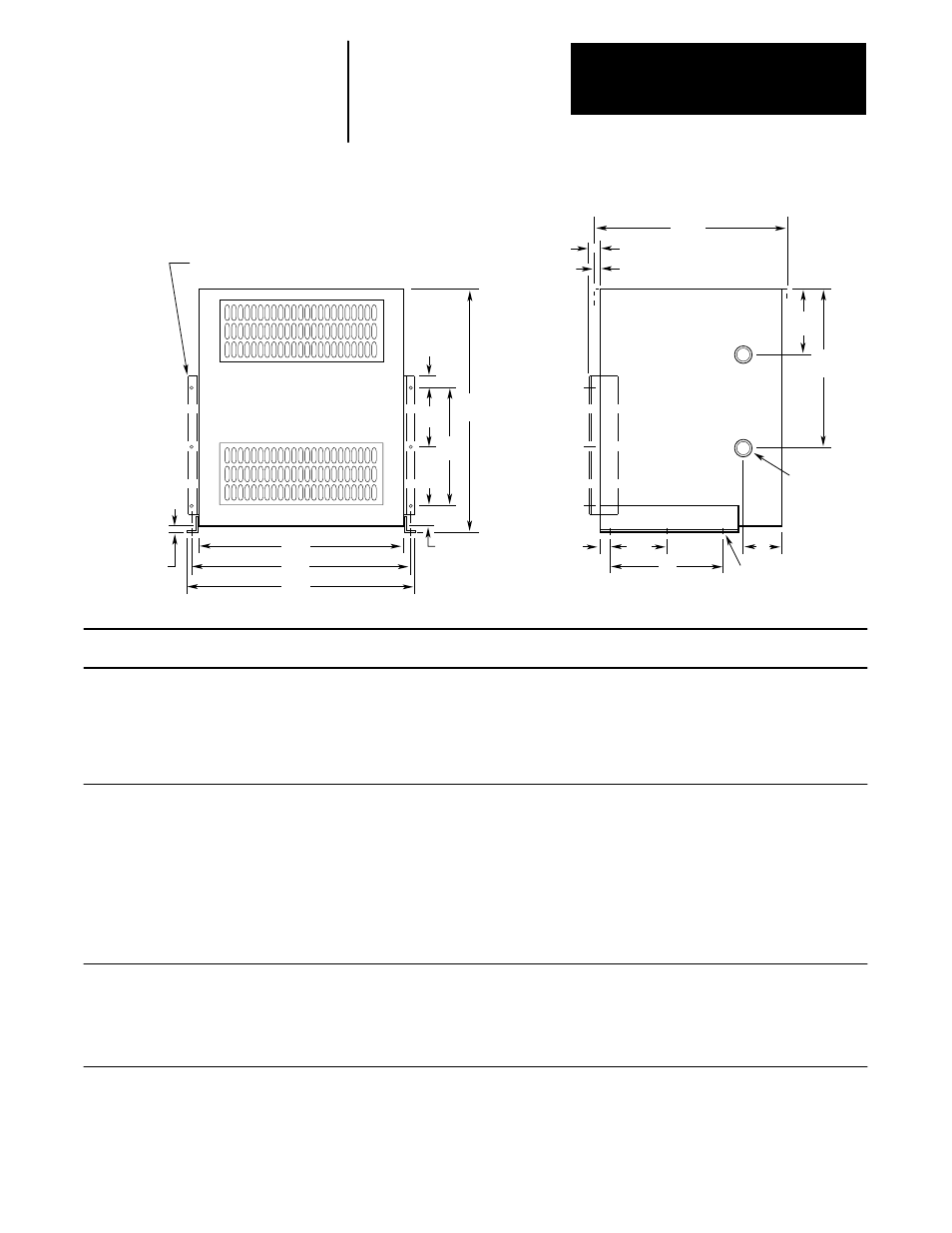

Figure 3.18
AC Power Transformer – Dimensions are in millimeters and (inches)
Catalog P
Number A B C D E F L M N (Knockout)
8510T-AA006-BA 438 286 356 375 419 178 241 51 25 19 & 25
8510T-AA009-BA (17.25) (11.25) (14.00) (14.75) (16.50) (7.00) (9.50) (2.00) (1.00) (0.75 & 1.00)
8510T-AA012-BA
8510T-AA006-EA
8510T-AA009-EA
8510T-AA012-EA
8510T-IA006-BA
8510T-AA017-BA 495 419 483 419 470 254 254 51 64 25 & 32
8510T-AA022-BA (19.50) (16.50) (19.00) (16.50) (18.50) (10.00) (10.00) (2.00) (2.50) (1.00 & 1.25)
8510T-AA026-BA
8510T-AA032-BA
8510T-AA017-EA
8510T-AA022-EA
8510T-AA026-EA
8510T-AA032-EA
8510T-IA009-BA
8510T-IA012-BA
8510T-IA017-BA
8510T-AA040-BA 622 521 622 546 597 254 305 64 64 25 & 51
8510T-AA040-EA (24.50) (20.50) (24.50) (21.50) (23.50) (10.00) (12.00) (2.50) (2.50) (1.00 & 2.00)
8510T-IA022-BA
8510T-IA026-BA
8510T-IA032-BA
8510T-IA040-BA
F/2
F
82.6 (3.25)
C
25.4
(1.0)
E
A
25.4 (1.0) Typ.
D
(if Wall Mounted)
L
F/2
F
50.8 (2.0)
14.2 (0.56) Dia.
6 Places.
63.5 (2.5) Typ.
M
P (Knockout)
N
B
12.7 (0.5) Typ.
Weight
kg (lb.)
30 (65)
39 (85)
50 (110)
45 (100)
52 (115)
60 (133)
50 (110)
68 (150)
75 (165)
80 (175)
91 (200)
66 (145)
77 (170)
84 (185)
98 (215)
59 (130)
73 (160)
77 (170)
114 (250)
116 (255)
118 (260)
123 (270)
132 (290)
159 (350)
