Rockwell Automation 8510 AC Spindle Drive System User Manual User Manual
Page 143
Troubleshooting
Chapter 11
11-139
Figure 11.6

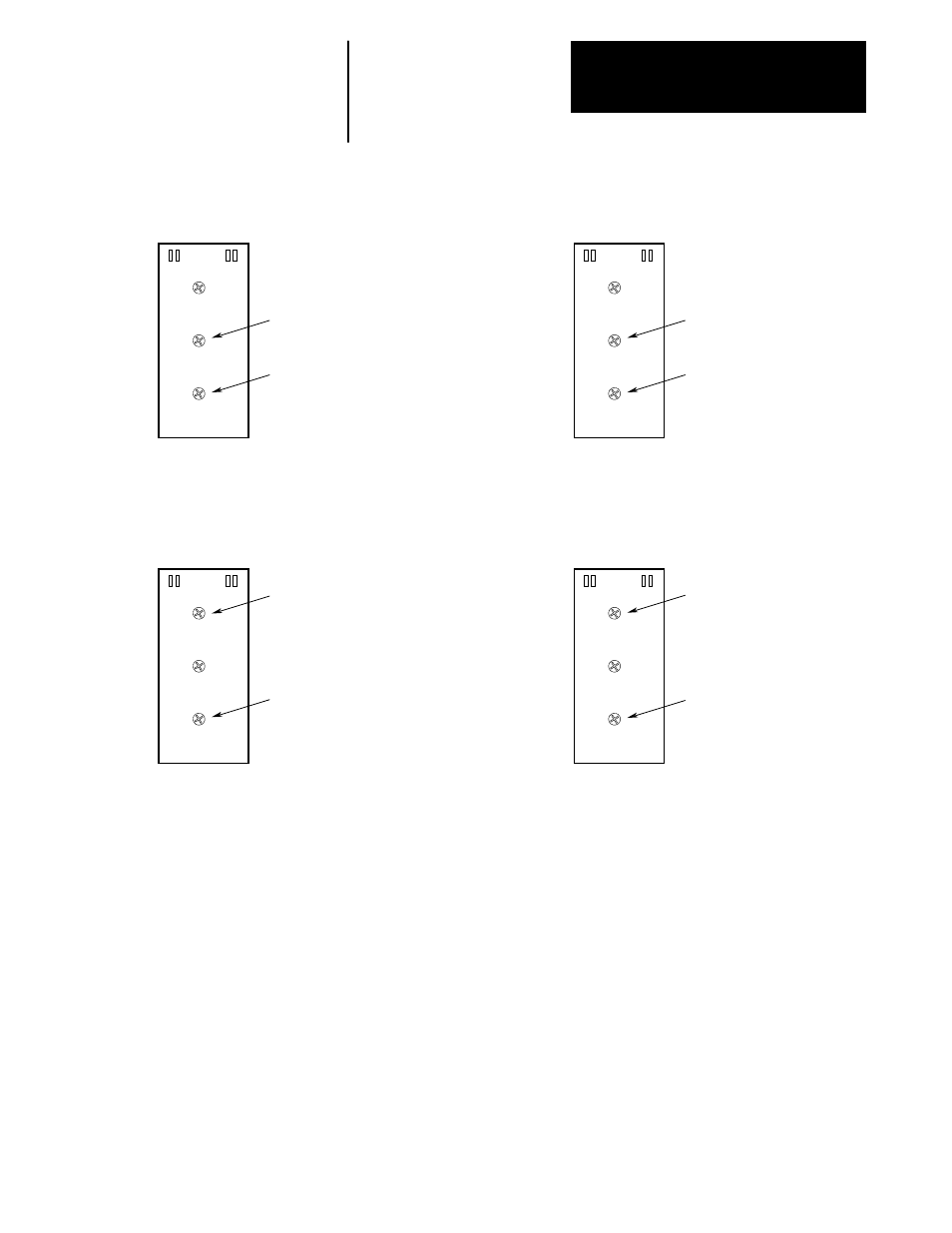

IGBT Module Test Procedure for 8510SA-A11 and A22 Drives
Negative (–) Meter Lead
Step 3
Step 1
Step 4
Step 2
+
–
Place Positive Meter Lead
(+) on this Screw
Negative (–) Meter Lead
+
–
Place Positive Meter Lead
(+) on this Screw
Negative (–) Meter Lead
+
–
Place Positive Meter Lead
(+) on this Screw
Negative (–) Meter Lead
+
–
Place Positive Meter Lead
(+) on this Screw
Reading > 1 Meg Ohm
Reading = 535mV
Reading > 1 Meg Ohm
Reading = 535mV
