Dimensions
Chapter 3
3-30

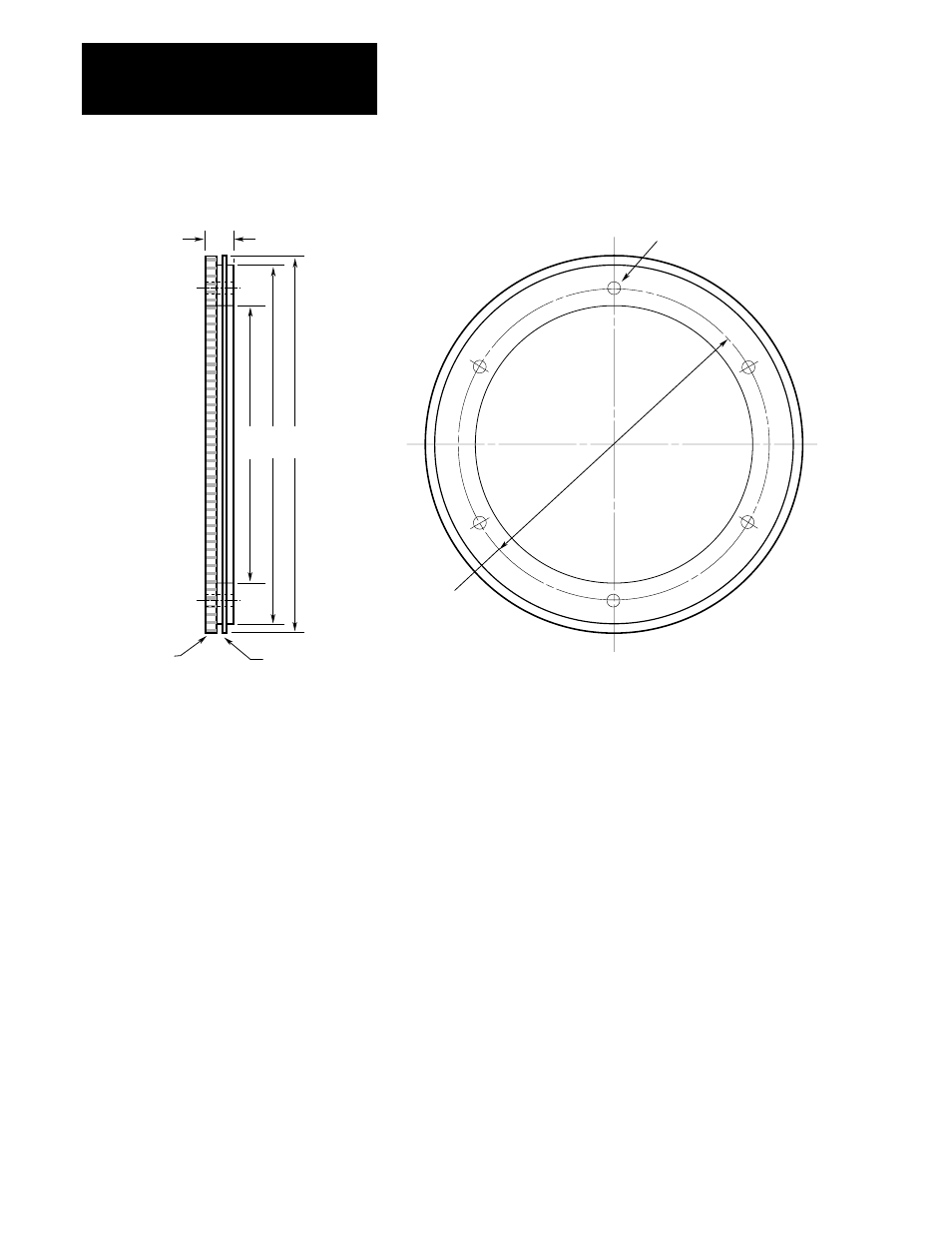

Figure 3.13
High Resolution Magnetic Feedback – Detecting Gear
B A
D
Z Phase
A & B Phase
Detecting Gear
Catalog Number
8510SA-PG225
8510SA-PG256
8510SA-PG300
8510SA-PG400
8510SA-PG500
8510SA-PG500P
# of Teeth
225
256
300
400
500
500 A
90.8 h6
(0.0/–0.022)
103.2 h6 (0.0/–0.022)
120.8 h6 (0.0/–0.025)
160.8 h6 (0.0/–0.025)
200.8 h6 (0.0/–0.029)
200.8 h6 (0.0/–0.029)
B
52 H6
(+0.019/0.0)
65 H6 (+0.019/0.0)
85 H6 (+0.022/0.0)
120 H6 (+0.022/0.0)
150 H6 (+0.025/0.0)
150 H6 (+0.025/0.0)
D
67
(+0.1/–0.1)
80 (+0.1/–0.1)
100 (+0.1/–0.1)
135 (+0.1/–0.1)
165 (+0.1/–0.1)
165 (+0.1/–0.1)
16
C
6 Holes – 5.5 Dia. Equally Spaced
C
82
92
112
152
192
192
