7.4.2 Attaching
The D65 Harvest Header ® can be attached to
the adapter from either Field configuration or
Transport configuration.
NOTE
Stabilizer/Transport wheels can be
used to support header. Refer to
Section 7.9.1 Cutting Height.

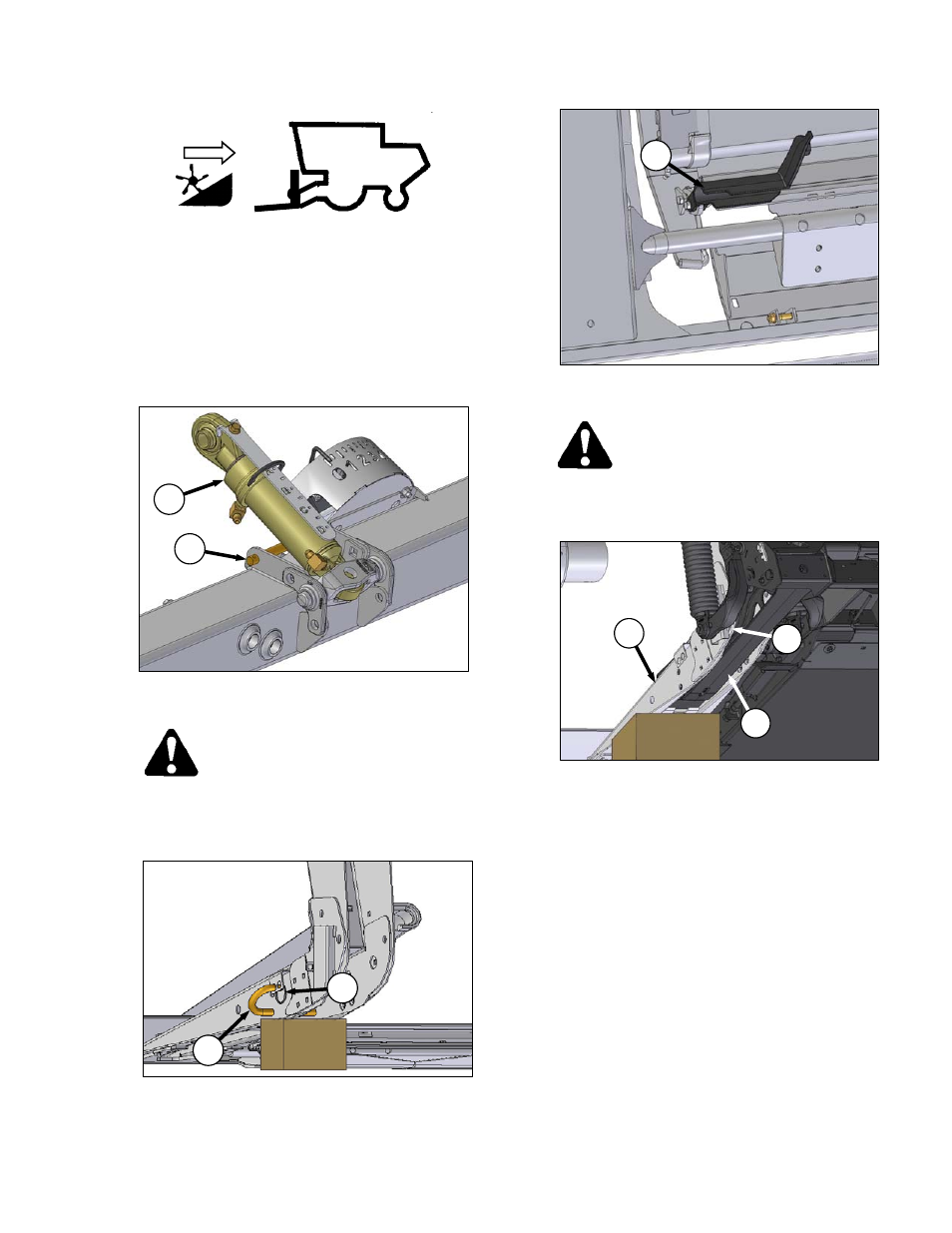

a. Prop up hydraulic center-link (A) with pin or
equivalent tool at (B).
CAUTION
Stop engine, and remove key from ignition
before leaving Operator's seat for any
reason. A child or even a pet could engage
an idling machine.
b. Remove ring (C) from pin (D) and remove pins
from header legs at delivery opening.
c. Ensure latches (E) at front corners of adapter
are rotated towards the rear of adapter.
CAUTION
Be sure all bystanders are clear of
machine before starting engine or
engaging any header drives.
d. Start engine, and lower combine feeder house
so that adapter arms (F) are aligned with
header legs (G).
e. Drive slowly forward, maintaining alignment
between adapter arms (F) and header legs (G).
f. Keep adapter arms (F) just under the legs (G)
to ensure adapter legs seat properly in the
header linkage supports at (H).
IMPORTANT
Keep hydraulic hoses clear to
prevent damage when driving into
header.
g. Continue forward until adapter arms (F) contact
stops in legs (G).
(continued next page)
