MacDon CA25 OM - Manual (Page 43)

SECTION 7. OPERATION - CAT LEXION
169593
41
Revision B

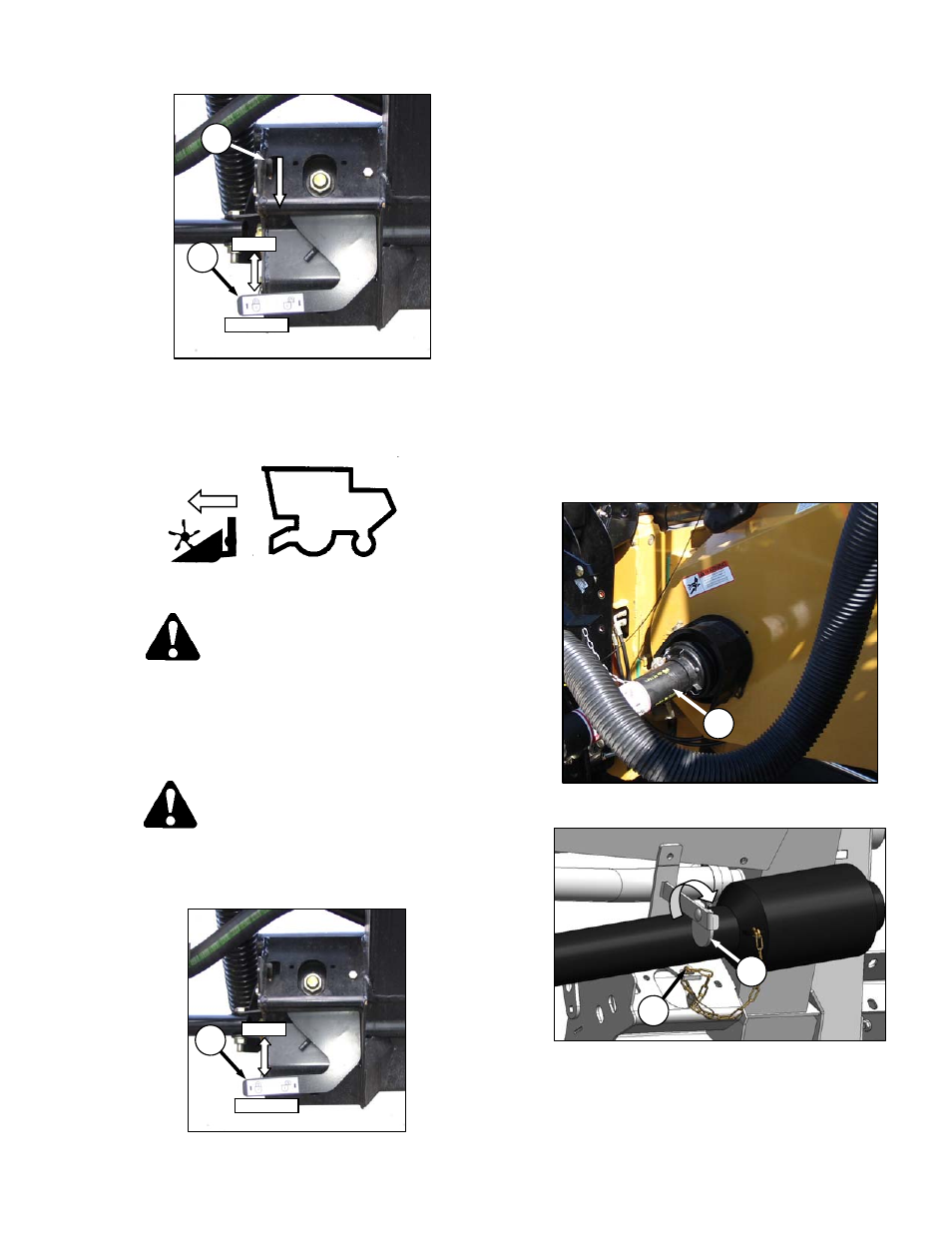

k. Disengage both adapter float locks by moving
latch (P) away from adapter, and moving lever
(Q) at each lock to lowest position.
7.3.4.2 Detachment
a. Choose a level area. Position header slightly
off the ground. Stop engine, and remove key.
DANGER
To avoid bodily injury or death from fall of
raised machine, always engage lift
cylinder stops before going under header
for any reason. See your Combine
Operator’s Manual for instructions for use
and storage of header lift cylinder stops.
CAUTION
Stop engine, and remove key from ignition
before leaving Operator's seat for any
reason. A child or even a pet could engage
an idling machine.
b. Engage the adapter float locks by lifting lever
(A) at both locks until it latches into the lock
position.
IMPORTANT
If slow speed transport wheels are
installed, header may be detached
in either Transport or Field mode.
If detaching with wheel in Field
mode, set wheels to storage or
uppermost working position.
Otherwise header may tilt forward
so that re-attachment will be difficult.
Refer to Section 7.9.1 Cutting
Height.
IMPORTANT
If stabilizer wheels are installed, set
wheels to storage or uppermost
working position. Otherwise header
may tilt forward so that
re-attachment will be difficult. Refer
to Section 7.9.1 Cutting Height.
c. Disconnect driveline (B) from combine.
d. Slide driveline in hook (C) so that disc (D) drops
to secure driveline.
(continued next page)
P
LOCK
UNLOCK
Q
A
LOCK
UNLOCK
B
D
C
