SECTION 7. OPERATION - CAT LEXION
169593
39
Revision B
7.3.4 CAT Lexion 500, 700 Series
7.3.4.1 Attachment

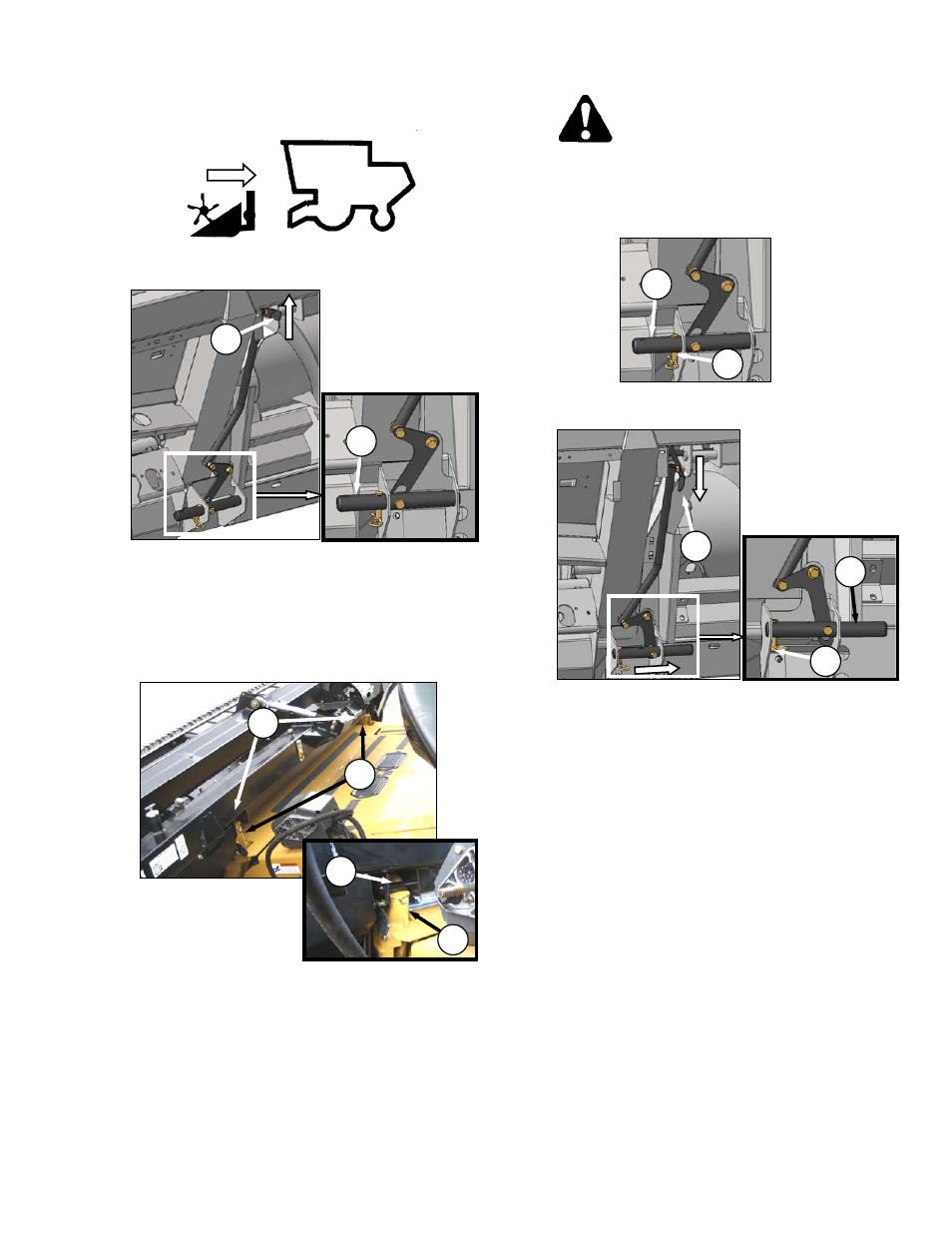

a. Handle (A) on the CA25 adapter should be in
raised position, and pins (B) at bottom corners
of adapter retracted.
b. Slowly drive combine up to adapter until feeder
house is directly under the adapter top cross
member.
c. Raise feeder house to lift adapter, ensuring
feeder house posts (C) are properly engaged in
adapter frame (D).
d. Position header slightly off the ground.
CAUTION
Stop engine, and remove key from ignition
before leaving Operator's seat for any
reason. A child or even a pet could engage
an idling machine.
e. Remove locking pin (E) from adapter pin (B).
f. Lower handle (A) to engage adapter pins (B)
into feeder house. Re-insert locking pin (E),
and secure with hairpin.
(continued next page)
