SECTION 8. MAINTENANCE AND SERVICING
169593
181
Revision B

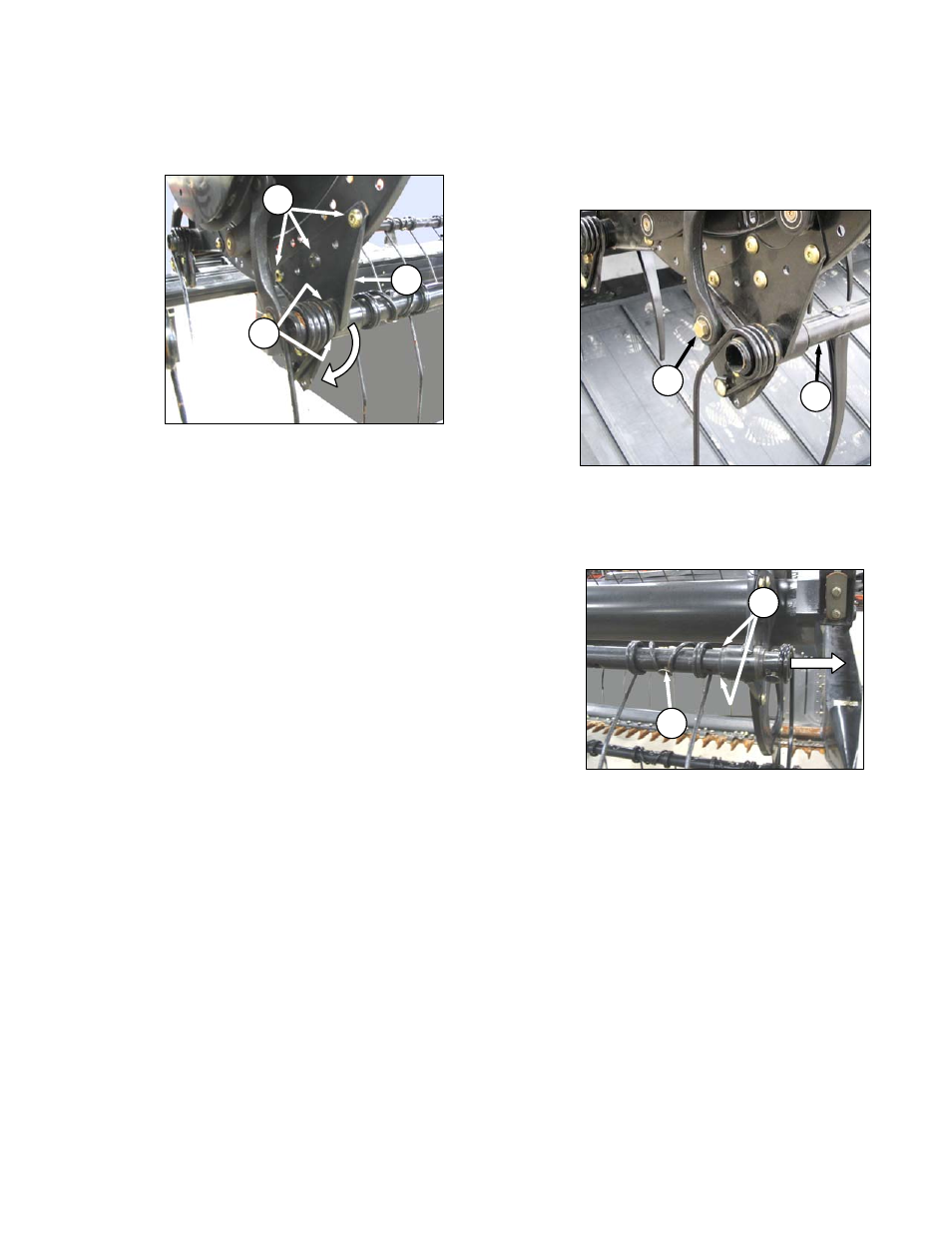

8.12.10.3 Bushing Removal: 5-Bat Pick-Up
Reels
a. Remove bushings at cam end disc as follows:
1. Remove bolts (A) securing arm (B) to disc.
IMPORTANT
Ensure tine tube is supported at all
times to prevent damage to the tube
or other components.
IMPORTANT
Note the hole locations in arm and
disc, and ensure bolts are
re-installed at original locations.
2. Remove bushing clamp as previously
described.
3. Rotate arm (B) clear of disc, and slide arm
off bushing. Remove bolt from tine next to
arm (or remove plastic finger) if required so
that arm can slide off bushing.
4. Remove bushing halves (C).
b. Remove bushings at center disc and left end
disc as follows:
1. Disconnect reel arm at cam end so that tine
tube is free to move. See step a.1.
2. Remove bolt (D) at on cam linkage so that
tine tube (E) is free to rotate.
3. Slide tine tube outboard to expose
bushings.
4. Remove bolt (F) from tine (or remove
plastic finger) next to arm if required so that
tube can slide through arm.
5. Remove bushing halves (G).
(continued next page)
B
A
C
F
G
E
D
