AT-WL2411 Installation and User’s Guide
75
1. From the menu, cl i ck Spanning Tree Settings. The Spanning Tree
Settings screen appears, as shown in Figure 30.

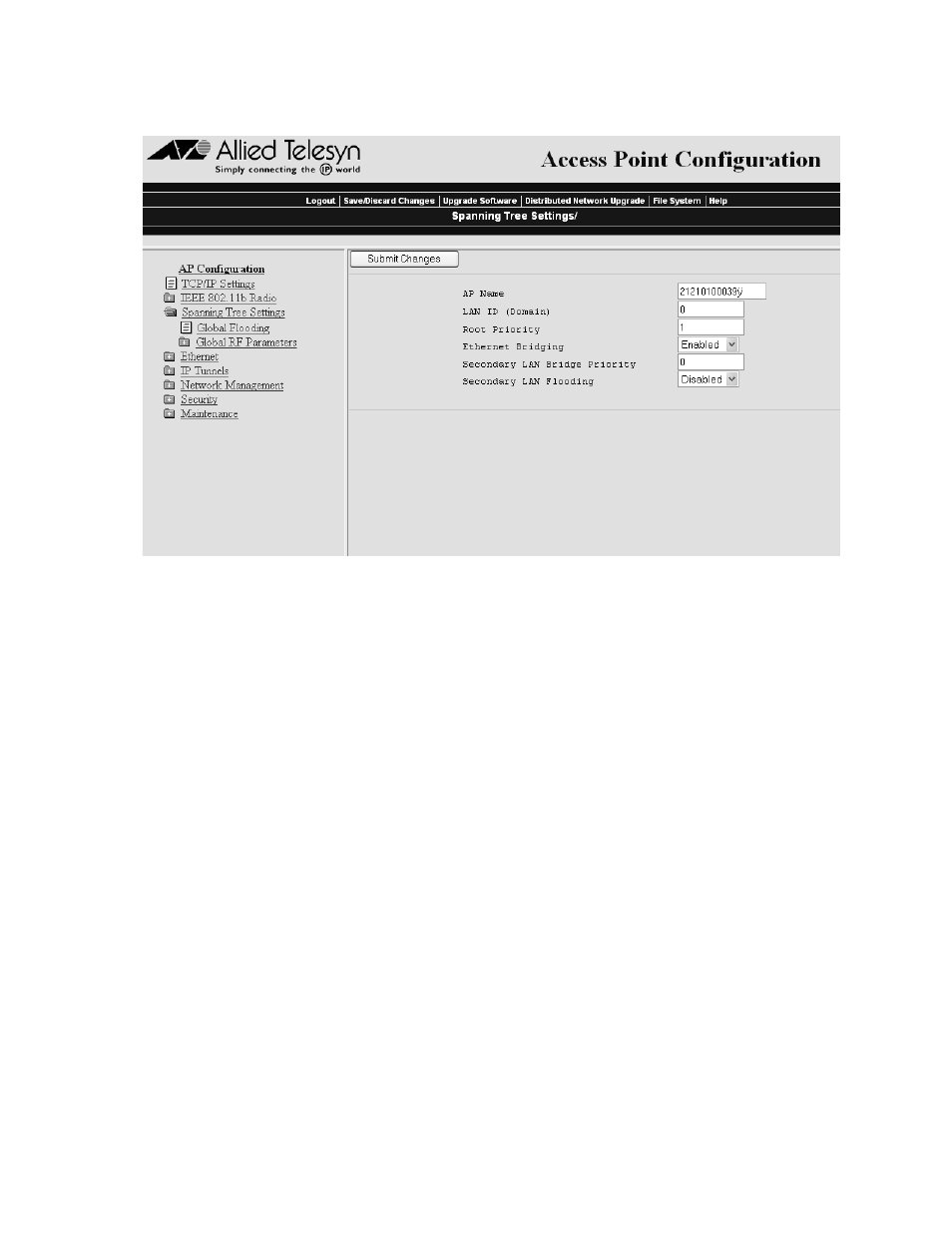

Figure 30 Spanning Tree Settings
2. Configure the spanning tree parameters. The spanning tree
parameters are defined below.
AP Name
Enter a unique name for this access point. The name can be from
1 to 16 characters. The default is the access point serial number.
LAN ID (Domain)
Enter the LAN ID. All access points must have the same LAN ID to
participate in the same spanning tree. The LAN ID can be from 0
to 254.
Also, if you assign a LAN ID greater than 15, the access point uses
a LAN ID that is the remainder after dividing the LAN ID by 16. For
example, if you set the LAN ID to 21 or 37, the access point uses 5.
Root Priority
Determines if this access point is a candidate to become the root
of the spanning tree. The access point with the highest root
priority becomes the root whenever it is powered on and active.
