AT-WL2411 Installation and User’s Guide
103
Action
Set the action to Pass or Drop. If you select Pass, then all frames of
that type are passed. If you select Drop, then all frames of that
type are dropped.
Subtype
Selects the frame subtype you wish to filter.
Value
Specifies the value of the subtype. Refer to the following table for
the value for a specific subtype. The value must be two hex pairs.
You must enter port values as decimals; for example enter “23.” for
port 23. The access point displays the hexadecimal equivalent in
the Value field. When a match is found between frame subtype
and value, the specified action is taken.
To customize subtype filters:
1. From the main menu, click IP Tunnels and then click Tunnel Filters.

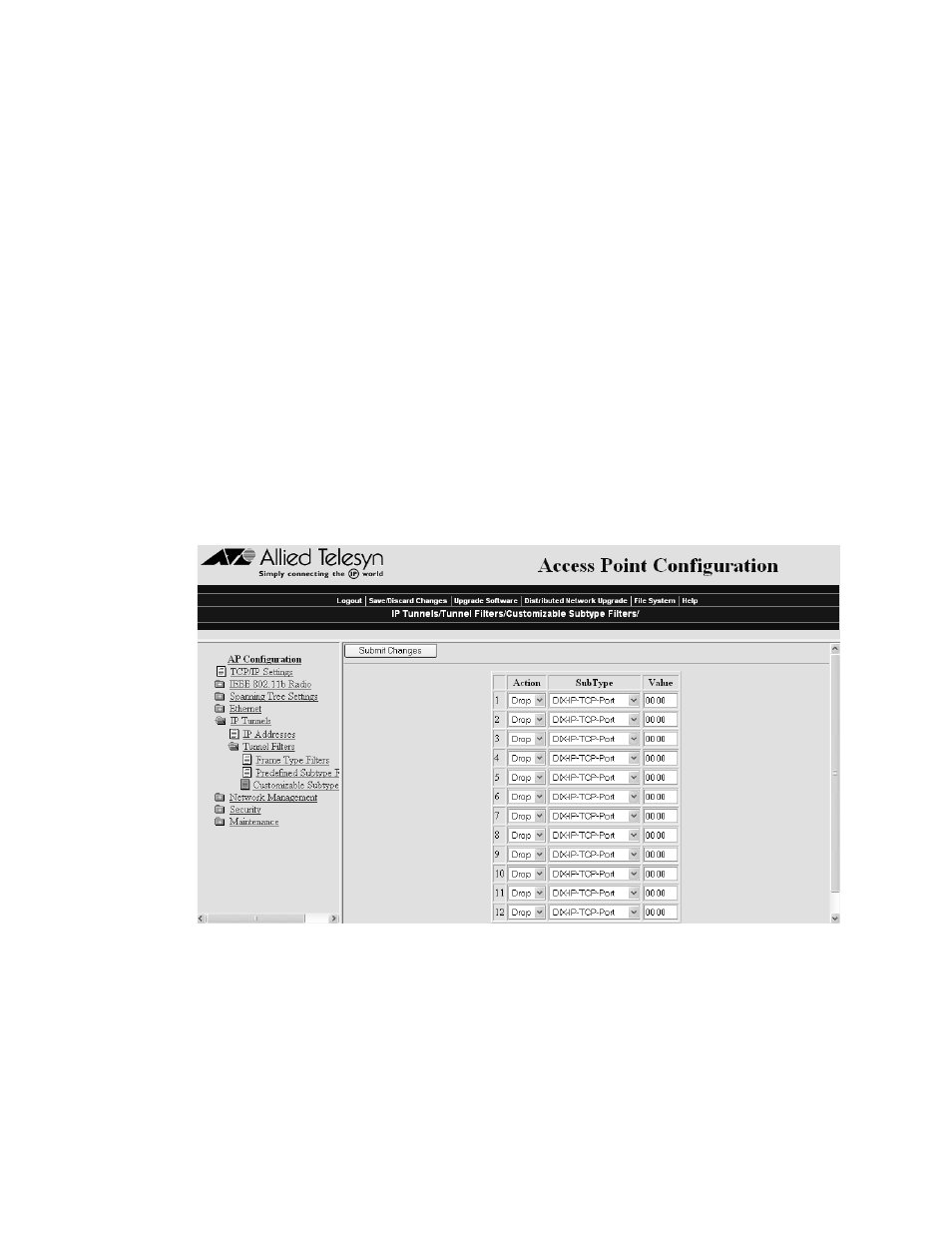

2. Click Customizable Subtype Filters. The Customizable Subtype Filters
screen appears, as shown in Figure 42.
Figure 42 Customizable Subtype Filters
3. Click the down arrow on the right side of the Action field and choose
Pass or Drop.
4. Click the down arrow on the right side of the SubType field and
choose the customizable frame subtype.
