AT-WL2411 Installation and User’s Guide
120
2. Click Wireless Bridging. The Wireless Bridging screen appears, as
shown in Figure 52.

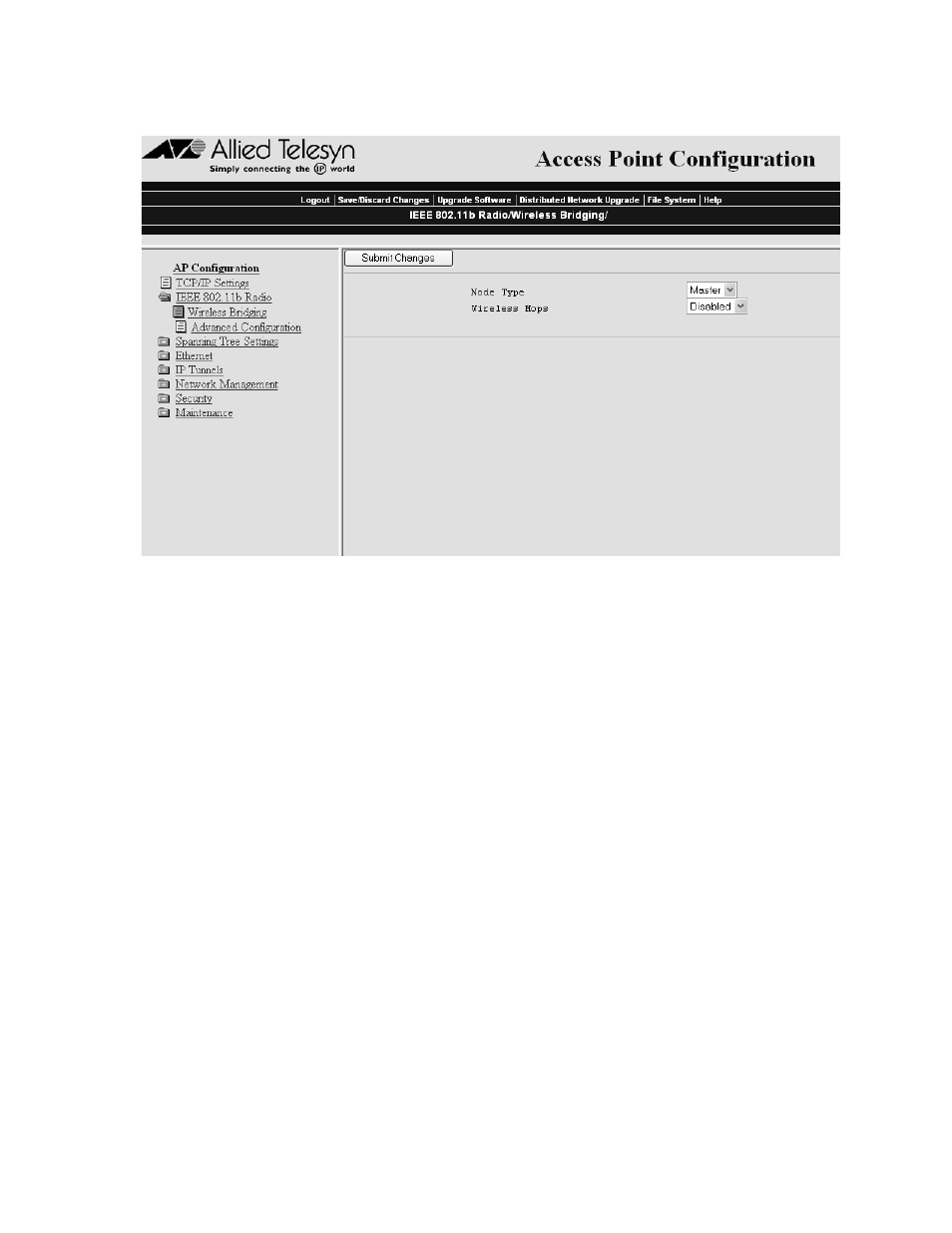

Figure 52 Wireless Bridging
3. Click the down arrow on the right side of the Node Type field and
choose Master and then click Submit Changes. Your changes are
saved and the Wireless Hops parameter appears.
4. Click the down arrow on the right side of the Wireless Hops field and
choose Enabled and then click Submit Changes. Your changes are
saved and the Hello Period parameter appears.
5. Click the down arrow on the right side of the Hello Period field and
choose a hello period of 1, 2, or 3 seconds and then click Submit
Changes. Your changes are saved.
