Attaching an External Antenna (Optional)
You can attach an external antenna to the AT-WL2411. To attach an
external antenna, you must disconnect the built-in antenna and attach
an antenna cable directly to the radio card in the access point. The
following steps explain how to attach an antenna cable to the AT-
WL2411.
For more information about antenna options, contact your local Allied
Telesyn representative.
To attach an external antenna to the AT-WL2411, do the following:
1. Remove the radio card door.

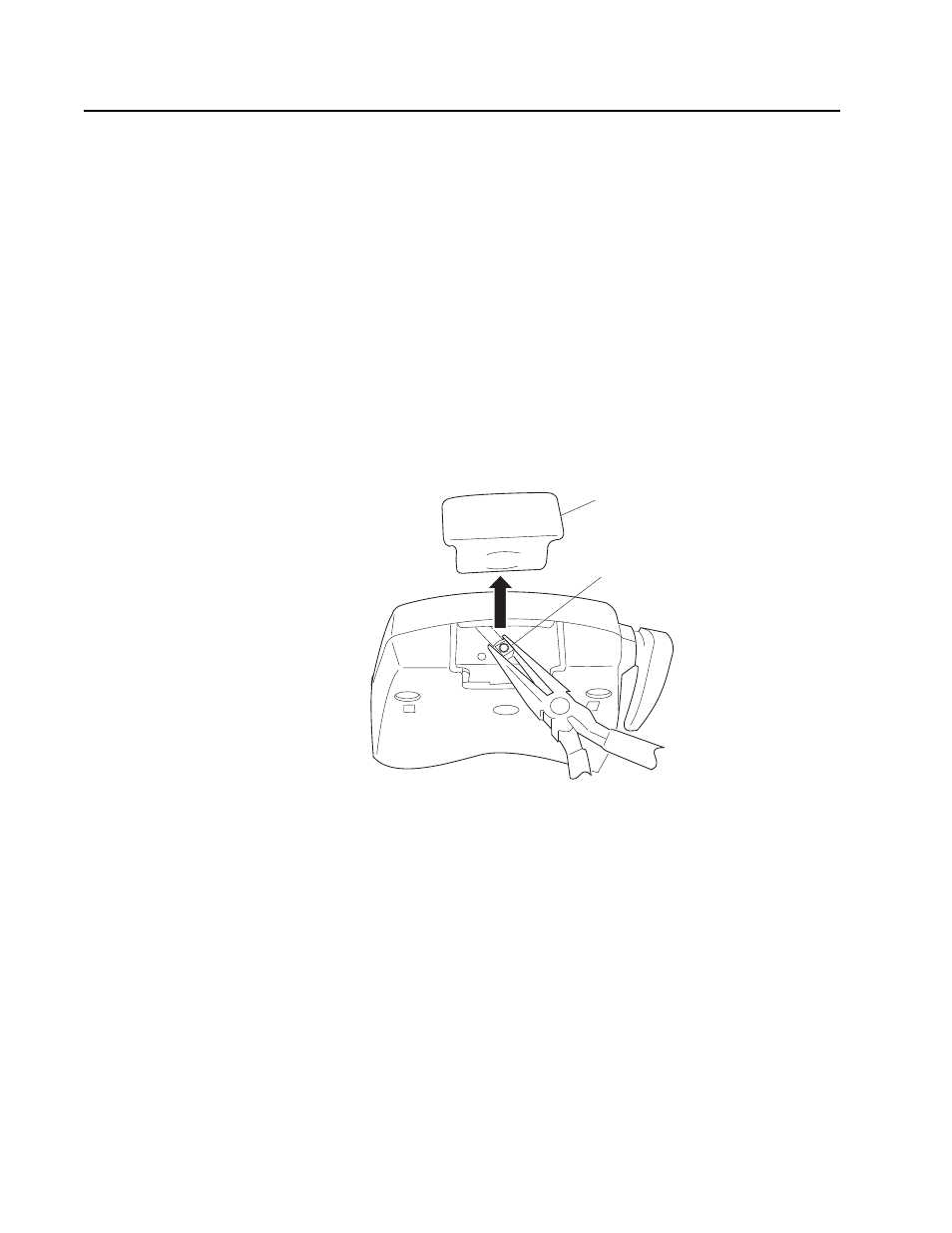

2. Pull straight up on the antenna wire to disconnect it from the radio
card, as shown in Figure 9.
Figure 9 Antenna Wire
3. Tuck the antenna wire inside the access point housing.
Door
Antenna
wire
