AT-WL2411 Installation and User’s Guide
21
Table 1 defines the LEDs for the AT-WL2411 access point.
Table 1 Status LEDs
Ports The AT-WL2411 features the following ports:
❑ Ethernet
❑ Serial connection/management
❑ Power

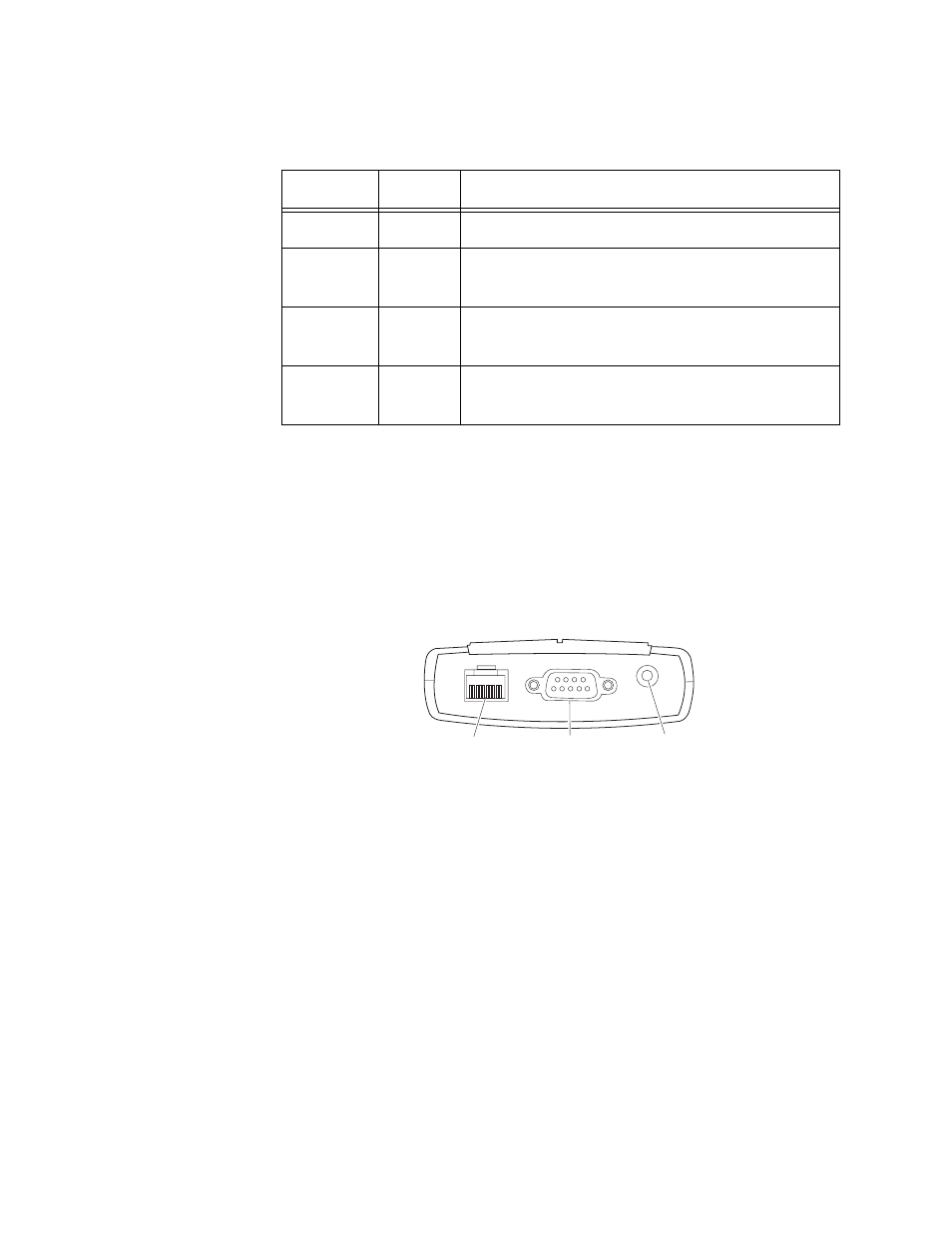

Figure 2 illustrates the ports on the AT-WL2411.
Figure 2 System Ports
10 Mbps
Twisted Pair
Ethernet Port
The AT-WL2411 access point has one twisted pair Ethernet port. The
twisted pair port features an RJ-45 connector with a maximum operating
distance of 100 meters (328 feet). The Ethernet port is used to connect
the access point to your Ethernet network.
Type of Cabling
The 10Base-T twisted pair port on the AT-WL2411 access point is
designed to operate with a Category 3 or better 100 ohm unshielded
twisted pair cable.
LED Color Description
PWR Green Power is applied to the unit.
Radio Green Flashes when a frame is transmitted or
received on the radio port.
Wired
LAN Green Flashes when a frame is transmitted or
received on the Ethernet port.
Root/error Green Flashes if access point has been configured as
root; remains on if an error is detected.
10BaseT
Ethernet port Serial
port Power
port
21XXT030.eps
