AT-WL2411 Installation and User’s Guide
66
Action
Set the action to Pass or Drop. If you select Pass, then all frames of
that type are passed. If you select Drop, then all frames of that
type are dropped.
Scope
Set scope to Unlisted or All. If you select All, then all frames of that
type are unconditionally passed or dropped, depending on the
action you specified. If you select Unlisted, then frames are passed
or dropped only if the frame type is not listed in the predefined or
customizable tables.
To set frame type filters:
1. From the main menu, click Ethernet and then click Frame Type Filters.

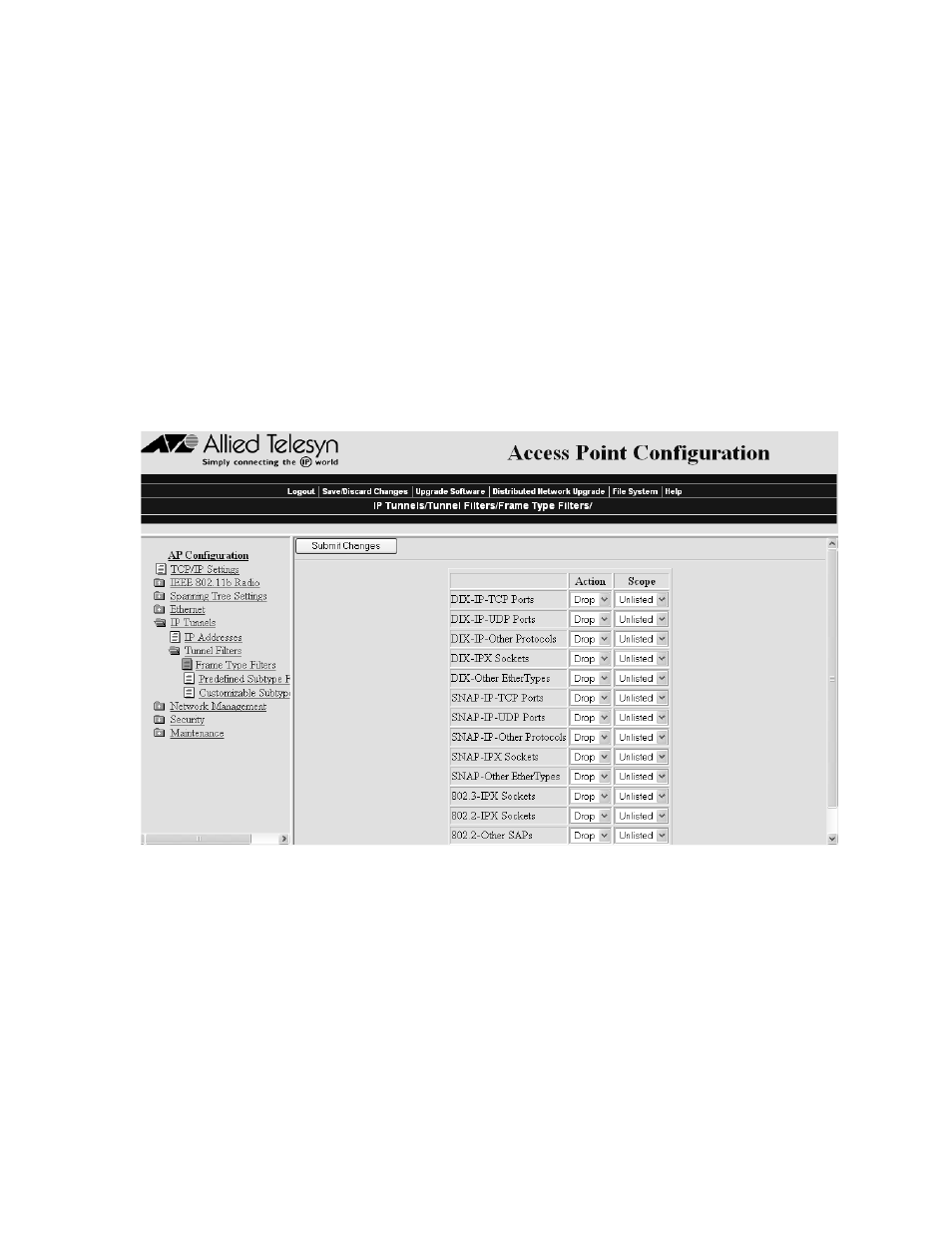

The Frame Type Filters screen appears, as shown in Figure 25.
Figure 25 Frame Type Filters
2. In each frame type field, click the down arrow on the right side of the
Action field and set the action to Pass or Drop.
3. In each frame type field, click the down arrow on the right side of the
Scope field and set the scope to Unlisted or All.
