AT-WL2411 Installation and User’s Guide
142
Startup Segment: This startup = 1, Next startup = 1
Data Segment: This startup = 3, Next startup = 3
7. These are the current startup and data segments. In this example, the
active startup segment is 1 and the active data segment is 3.
You will first erase the inactive segments and then you will load
the new firmware into the inactive segments and make those
segments active. In this example, the inactive segments are 2 and
4.
8. Erase the inactive startup segment. Type fe 2 at the service> prompt
and press Enter. A P appears in the command line when the segment
is erased.
9. Erase the inactive data segment. Type fe 4 at the service> prompt
and press Enter. A P appears in the command line when the segment
is erased.
10. Transfer the startup files to the inactive startup segment.
a. At the service> prompt, type fx s (where s is the inactive startup
segment) and press Enter. A series of Cs appears in the command
line.
b. Click the Transfer menu tab in your communications program and
then click Send File. The Send File dialog box appears, as shown
below.

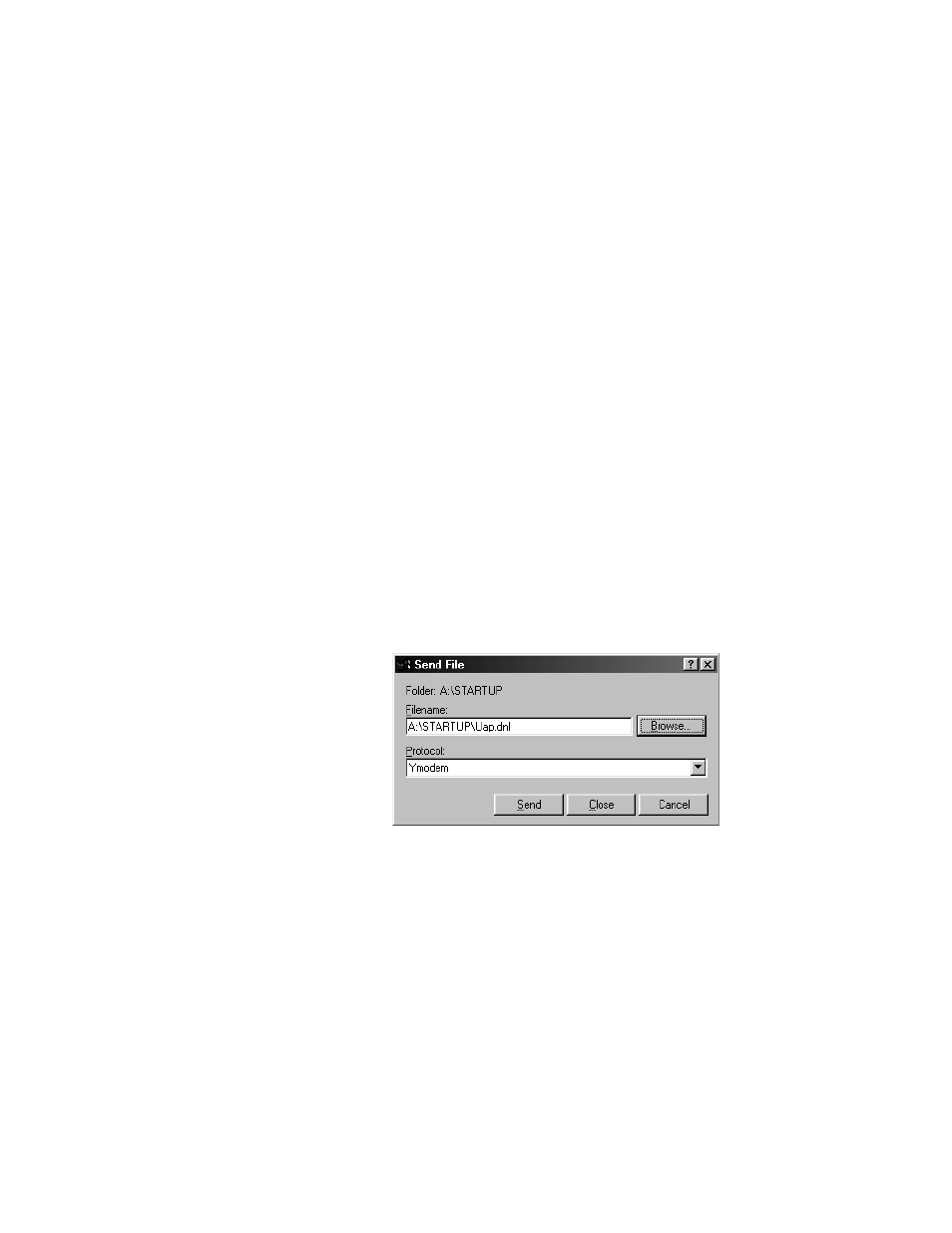

Figure 66 Send File
c. Click the Protocol down arrow and choose Ymodem.
d. Browse to the location where the UAP.DNL is saved. Double-click
this file so that it appears in the Filename field.
e. Click Send to start the file transfer. A P appears in the command
line when the transfer is complete.
11. Transfer the data files to the inactive data segment.
