Action
Set the action to Pass or Drop. If you select Pass, then all frames of
that subtype and value are passed. If you select Drop, then all
frames of that subtype and value are dropped.
Subtype
Selects the frame subtype you wish to configure.
Value
The following table describes frame subtypes and their values.
The value must be two hex pairs. You must enter port values as
decimals; for example, enter “23.” for port 23. The access point
displays the hexadecimal equivalent in the Value field on the
menu. When a match is found between frame subtype and value,
the specified action is taken.
To customize subtype filters:
1. From the main menu, click Ethernet and then click Customizable
Subtype Filters. The Customizable Subtype Filters screen appears, as
shown in Figure 27.

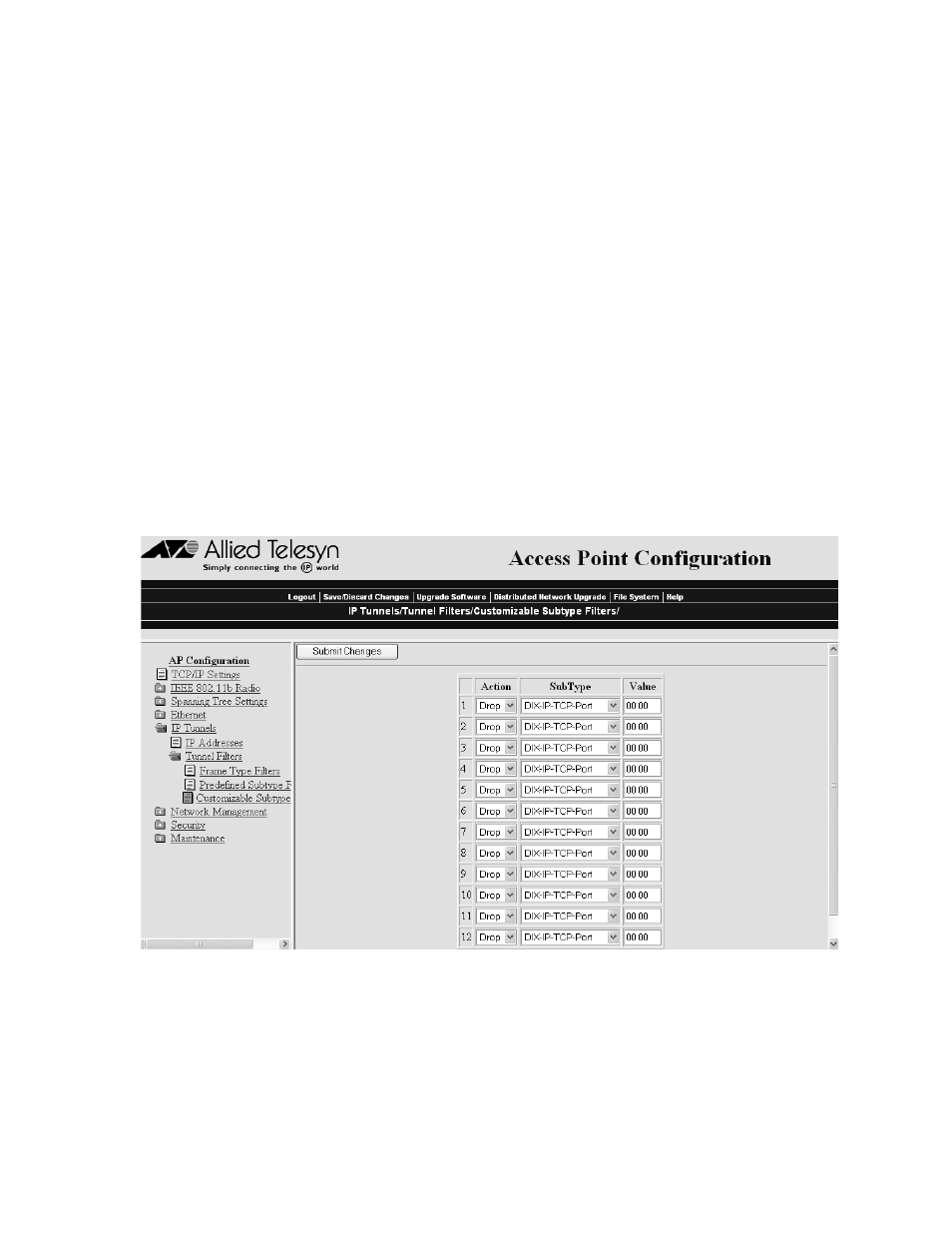

Figure 27 Customizable Subtype Filters
2. Click the down arrow on the right side of the Action field and choose
Pass or Drop.
3. Click the down arrow on the right side of the SubType field and
choose the customizable frame subtype.
