RJ-45 Port Pinouts
Figure 3 illustrates the pin assignments of an RJ-45 connector and port.

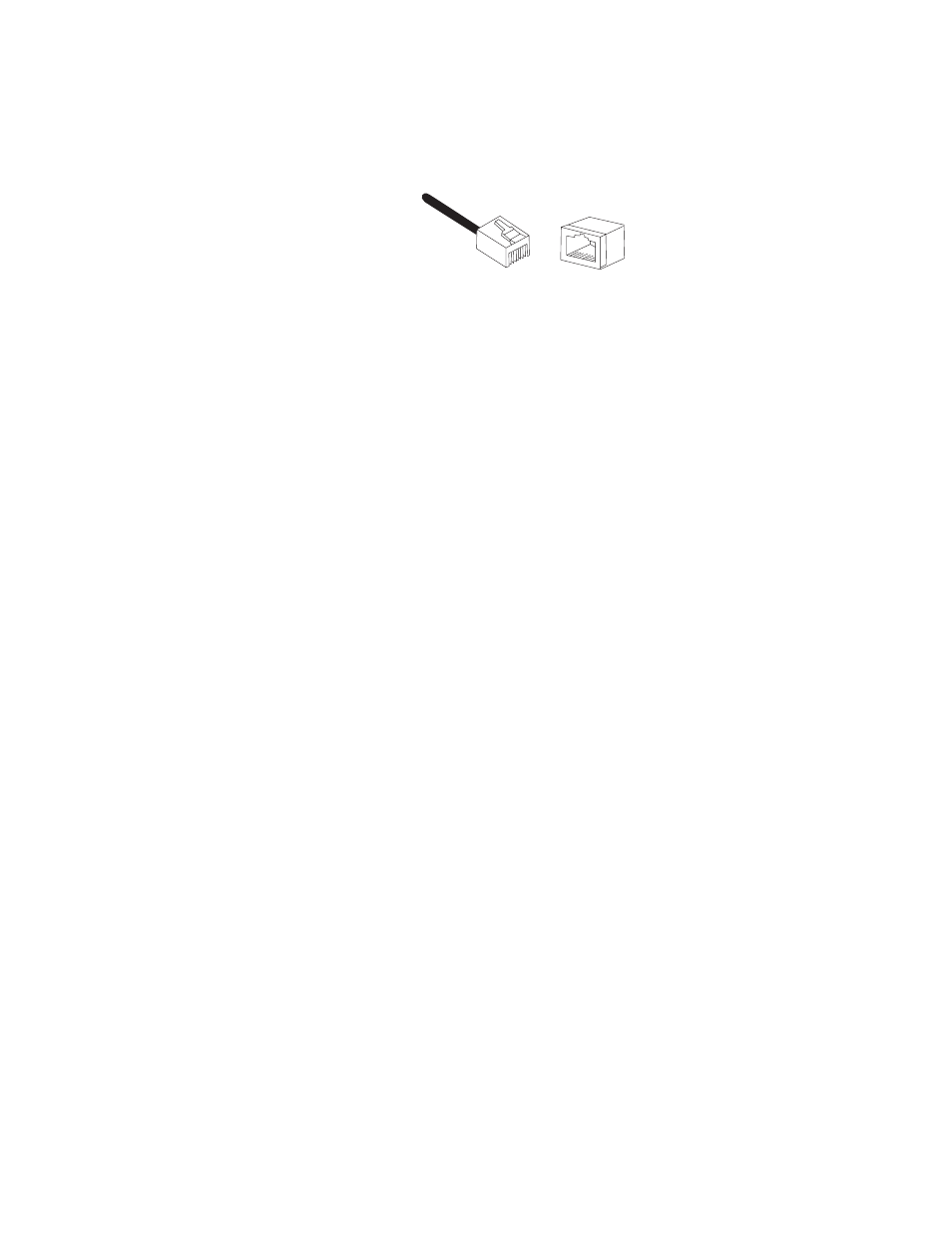

Figure 3 RJ-45 Connector and Port Pin Assignments
Serial Port The serial connection/management port features a DB-9 connector for
connecting the access point to your laptop or PC-compatible computer
for configuration using the provided management cable.
Serial Cable The RS-232 null-modem cable included with the AT-WL2411 access
point features a 9-pin RS-232 connector to attach to the serial port on
your computer and an 9-pin RS-232 connector to attach to the serial port
on the access point.
Power Supply
Input Port
The access point has a single power supply port. The unit does not have
a power switch. To turn the access point ON or OFF, you connect or
disconnect the power cord.
External AC/DC
Power Adapter
An external AC/DC power adapter is included with the access point. The
power adapter supplies 5V DC to the access point. The power required
for the access point is 5V DC, 2.0 A.
8
8
1 1
