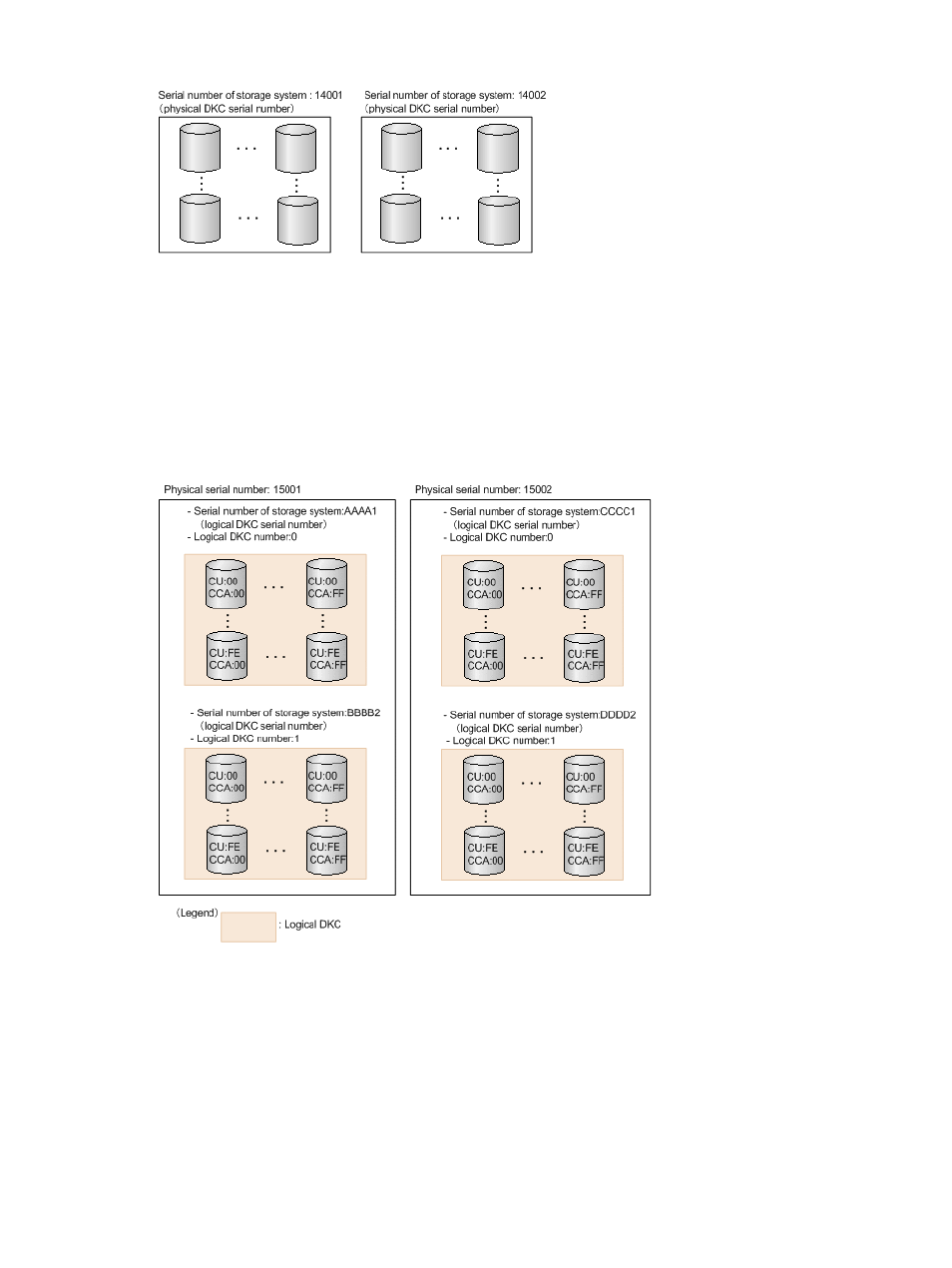

Figure 8 XP12000/XP10000 disk array storage system serial numbers
Identification on the XP 7 storage or XP24000/XP20000, XP P9500 disk array
When the storage system is XP7 storage, or XP24000/XP20000, XP P9500 disk array, the volumes
identified by the CU numbers 00 to FE are treated as belonging to a logical disk controller. Business
Continuity Manager considers these logical DKCs to be storage systems and treats the logical DKC
serial number assigned to each logical DKC as the serial numbers of a storage system.
Figure 9 (page 49) shows the storage system serial numbers for an HP XP7 storage, or HP
XP24000/XP20000 or XP P9500 disk array.
Figure 9 XP7 storage or XP24000/XP20000, XP P9500 disk array storage system serial numbers
Each logical disk controller has a logical DKC number (0 or 1) assigned within the storage system.
A procedure for identifying storage systems and storage system serial numbers that are different
for each storage subsystem is required.
Table 10 (page 50) summarizes the way Business Continuity Manager identifies storage systems
and storage system serial numbers.
Storage system identification 49
