Installation is complete. You may now power up the disk array(s) and then the node as described in
Operation .
Installing VLS6800 Cables
1. Connect Fibre Channel cables from your SAN media server to the node Fibre Channel host ports,
starting with Fibre Channel host port 0 and working towards Fibre Channel host port 3 (
Figure
34 ).
Leave the Fibre Channel loopback plug in any unused Fibre Channel host ports. This will prevent
you from receiving Fibre Channel notification alerts, which are generated by the VLS when no
signal is detected at a Fibre Channel host port.

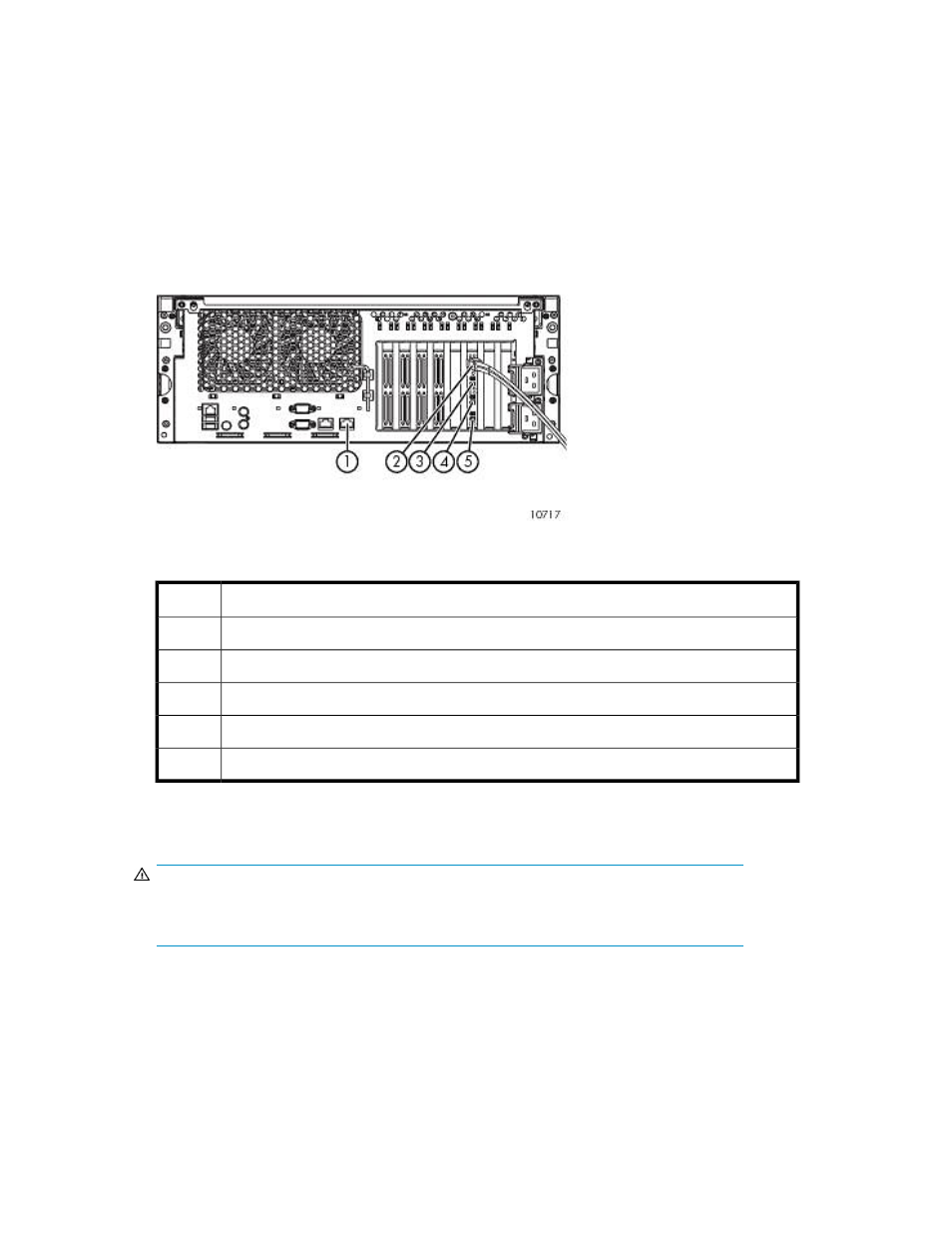

Figure 34 Connecting SAN and LAN cabling to the node
.
Description Item
10/100/1000 NIC 1 connector 1
FC host port 0 2
FC host port 1 3
FC host port 2 4
FC host port 3 5
2. Connect a standard Ethernet (CAT-5) cable from your local IP network (LAN) to the 10/100/1000
NIC 1 (RJ-45) connector (
Figure 34 ).
WARNING!
To reduce the risk of electric shock, fire, or damage to the equipment, do not plug telephone
or telecommunications connectors into RJ-45 (NIC) connectors.
Hardware Installation 60
