Figure 29 VLS6200 — Connecting the VHDCI connectors to disk arrays
.
Description
Item
VHDCI connector A1, connect to Disk array 0
1
VHDCI connector A2, connect to Disk array 1
2
VHDCI connector B1, connect to Disk array 2
3
VHDCI connector B2, connect to Disk array 3
4

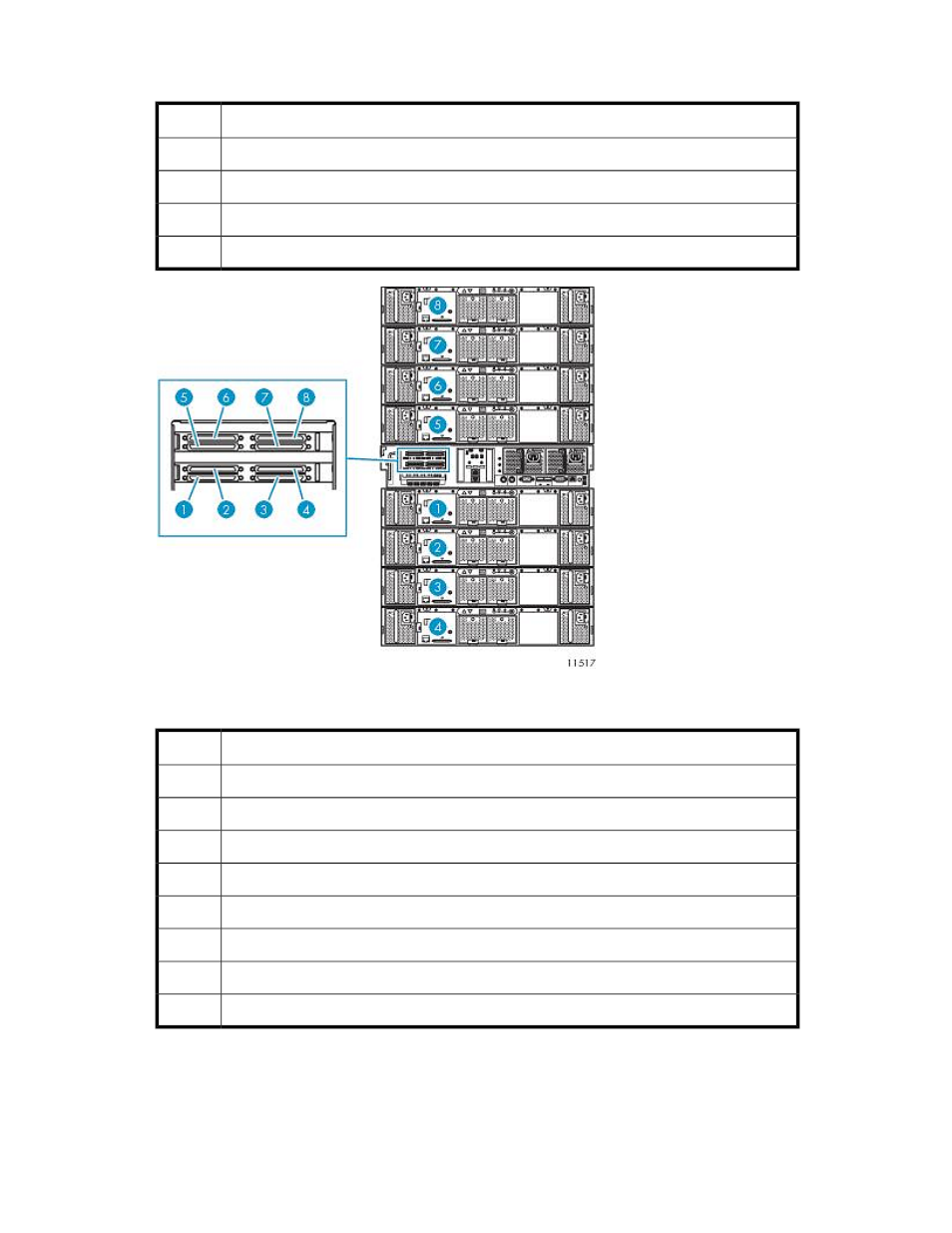

Figure 30 VLS6600 — Connecting the VHDCI connectors to disk arrays
.
Description
Item
VHDCI connector slot 4, A1, connect to disk array enclosure 0
1
VHDCI connector slot 4, A2, connect to disk array enclosure 1
2
VHDCI connector slot 4, B1, connect to disk array enclosure 2
3
VHDCI connector slot 4, B2, connect to disk array enclosure 3
4
VHDCI connector slot 5, A1, connect to disk array enclosure 4
5
VHDCI connector slot 5, A2, connect to disk array enclosure 5
6
VHDCI connector slot 5, B1, connect to disk array enclosure 6
7
VHDCI connector slot 5, B2, connect to disk array enclosure 7
8
Hardware Installation
58
