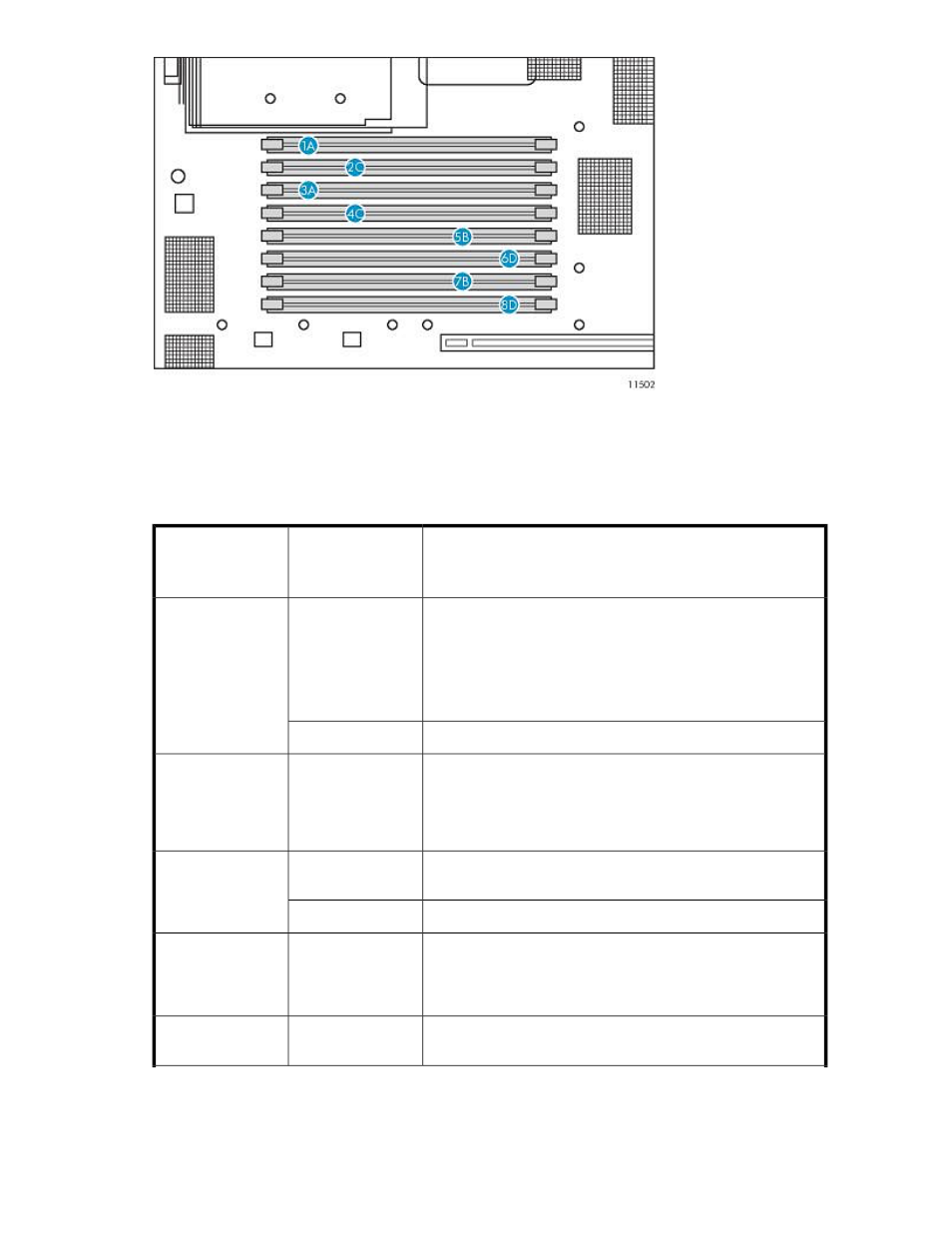

HP Systems Insight Display LEDs and Internal Health LED Combinations
When the internal health LED on the front panel illuminates either amber or red, the server is
experiencing a health event. Combinations of illuminated system LEDs and the internal health LED
indicate system status.
Status Internal health
LED color HP Systems In-
sight Display LED
and color
One or more of the following conditions may exist:
• Processor in socket X has failed.
• Processor X is required yet not installed in the socket.
• Processor X is unsupported.
• ROM detects a failed processor during POST.
Red
Processor failure,
socket X (amber)
Processor in socket X is in a pre-failure condition. Amber
One or more of the following conditions may exist:
• PPM in slot X has failed.
• PPM is not installed in slot X, but the corresponding processor
is installed.
Red
PPM failure, slot X
(amber)
FBDIMM in slot X has failed. Red
FBDIMM failure, slot
X (amber)
FBDIMM in slot X is in a pre-failure condition. Amber
One or more FBDIMMs has failed. Test each bank of FBDIMMs
by removing all other FBDIMMs. Isolate the failed FBDIMM by
replacing each FBDIMM in a bank with a known working FB-
DIMM.
Red
FBDIMM failure, all
slots in one bank
(amber)
Bank X failed over to the online spare memory bank. Amber
Online spare
memory (amber)
