Install Rails in the Rack
1.
Mark the rack.
WARNING!
Always plan the rack installation so that the heaviest item is on the bottom of the rack. Install
the heaviest item first, and continue to populate the rack from the bottom to the top.

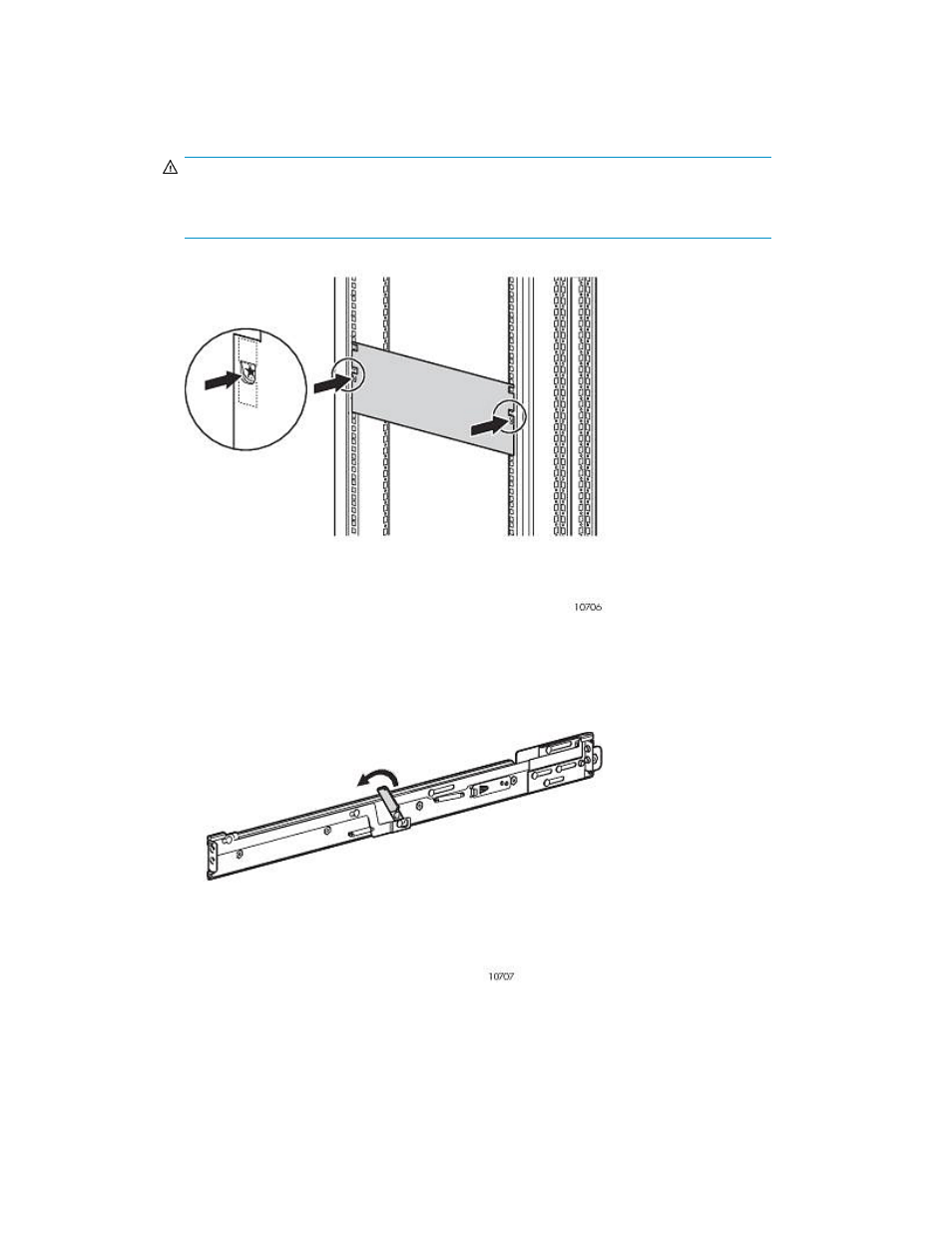

Figure 16 Measuring with the template
.
2.
From the front of the rack, identify the rear rack holes on the inside of the vertical rack that you
marked with the template.
3.
Pull the rail compression lever toward you.
Figure 17 Pulling the rail compression lever
.
HP StorageWorks 6000–series Virtual Library System User Guide
49
