Description Item Description Item
Processor memory board slot 1 (processor) 9 Slot 1 (unpopulated) 1
Processor memory board slot 2 (boot pro-
cessor)
10 Slot 2 (unpopulated) 2
Processor memory board slot 3 (air baffle) 11 Slot 3 (FC host bus adapter) 3
Processor memory board slot 4 (air baffle) 12 Slot 4 (unpopulated) 4
System board battery 13 Slot 5 (Smart RAID controller board 3) 5
System maintenance switch (SW3) 14 Slot 6 (Smart RAID controller board 2) 6
System ID switch (SW4) 15 Slot 7 (Smart RAID controller board 1) 7
iLO/Redundant ROM Override Switch
(SW5)
16 Slot 8 (Smart RAID controller board 0) 8

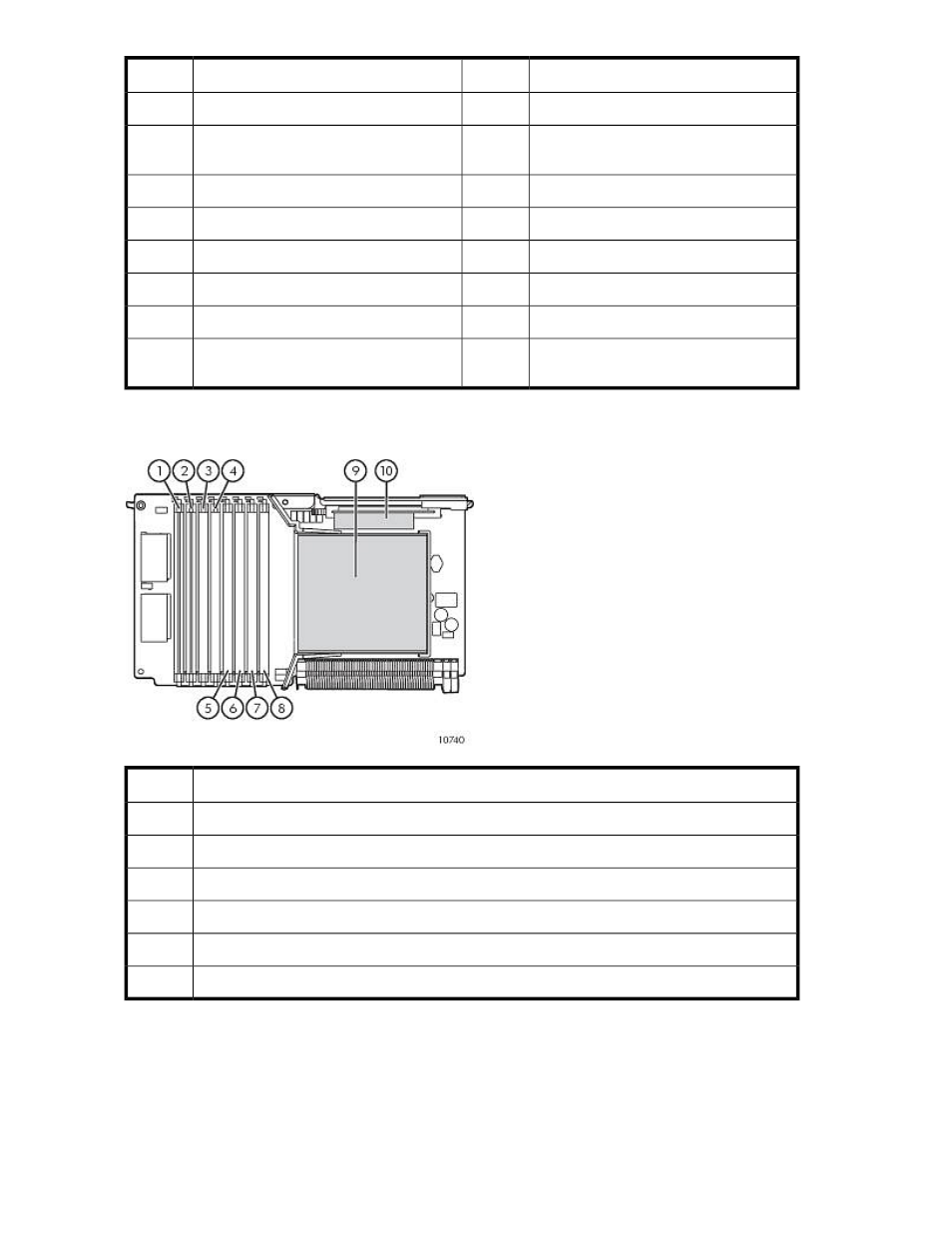

Processor Memory Board Components
Description Item
Memory bank 1 1–2
Memory bank 2 3–4
Memory bank 3 5–6
Memory bank 4 7–8
Processor and heatsink 9
Processor power module 10
Component Identification 246
