Status Description Item
Green = Normal
Off = System is off or power supply has failed
Power supply 2 LED 11
Green = Normal
Off = System is off or power supply has failed
Power supply 1 LED 12

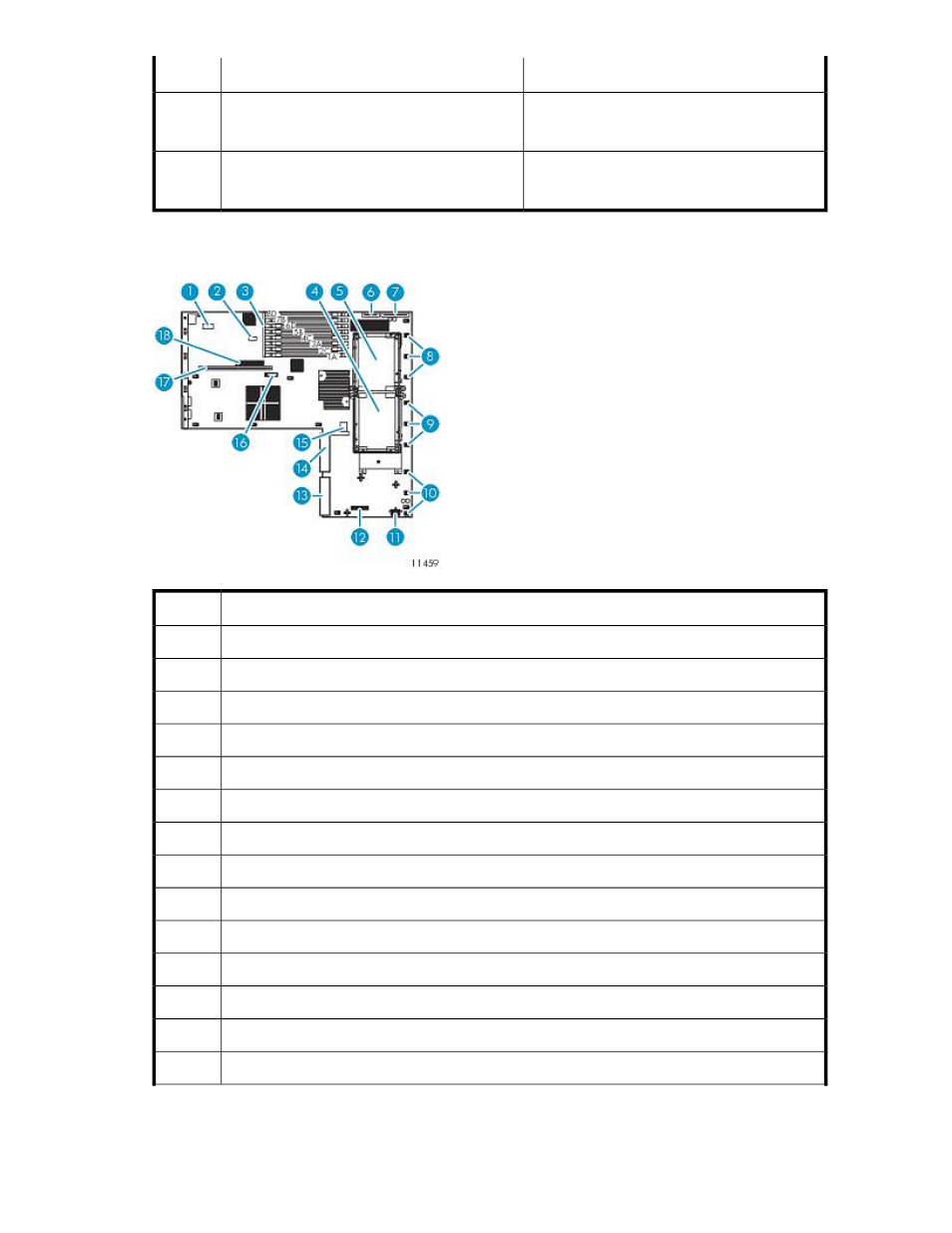

System Board Components
Description Item
System maintenance switch (SW1) 1
NMI switch 2
FBDIMM slots (1-8) 3
Processor socket 2 4
Processor socket 1 5
DVD-CD drive connector 6
Power button connector 7
Fan module 3 connectors 8
Fan module 2 connectors 9
Fan module 1 connectors 10
SAS hard drive backplane power connector 11
Integrated Smart RAID controller connector 12
Power supply connector 1 13
Power supply connector 2 14
HP StorageWorks 6000–series Virtual Library System User Guide 225
