NOTE:
•
HP XP7 Performance Advisor also collects the real-time performance data from the XP and the
XP7 disk arrays. For more information, see
“Troubleshooting using real-time performance data
from XP and XP7 disk arrays” (page 317) .
•
To distinguish the external parity group from the normal parity group in case of an outband
collection, the external parity group fb4 number is displayed between the range of 101 to
16484. To match the external parity group of HP XP7 Performance Advisor with the Remote
Web Console, deduct 100 from the fb4.
For example, in HP XP7 Performance Advisor, the external parity group is displayed between
101-1. To match with Remote Web Console, deduct 100 from 101 that is, 1-1. This is
equivalent to E1-1 in Remote Web Console.
•
HP XP7 Performance Advisor collects and displays configuration and performance data for
fast snapshots treating them as a regular snapshots.
Array View screen
NOTE: You can request updates from the host agents and perform configuration and performance
data collection, only if you have logged into HP XP7 Performance Advisor as an Administrator or
a user who is granted administrator privileges.
The Array View screen appears when you click Monitoring+Array View in the left pane, and
comprises of the following:

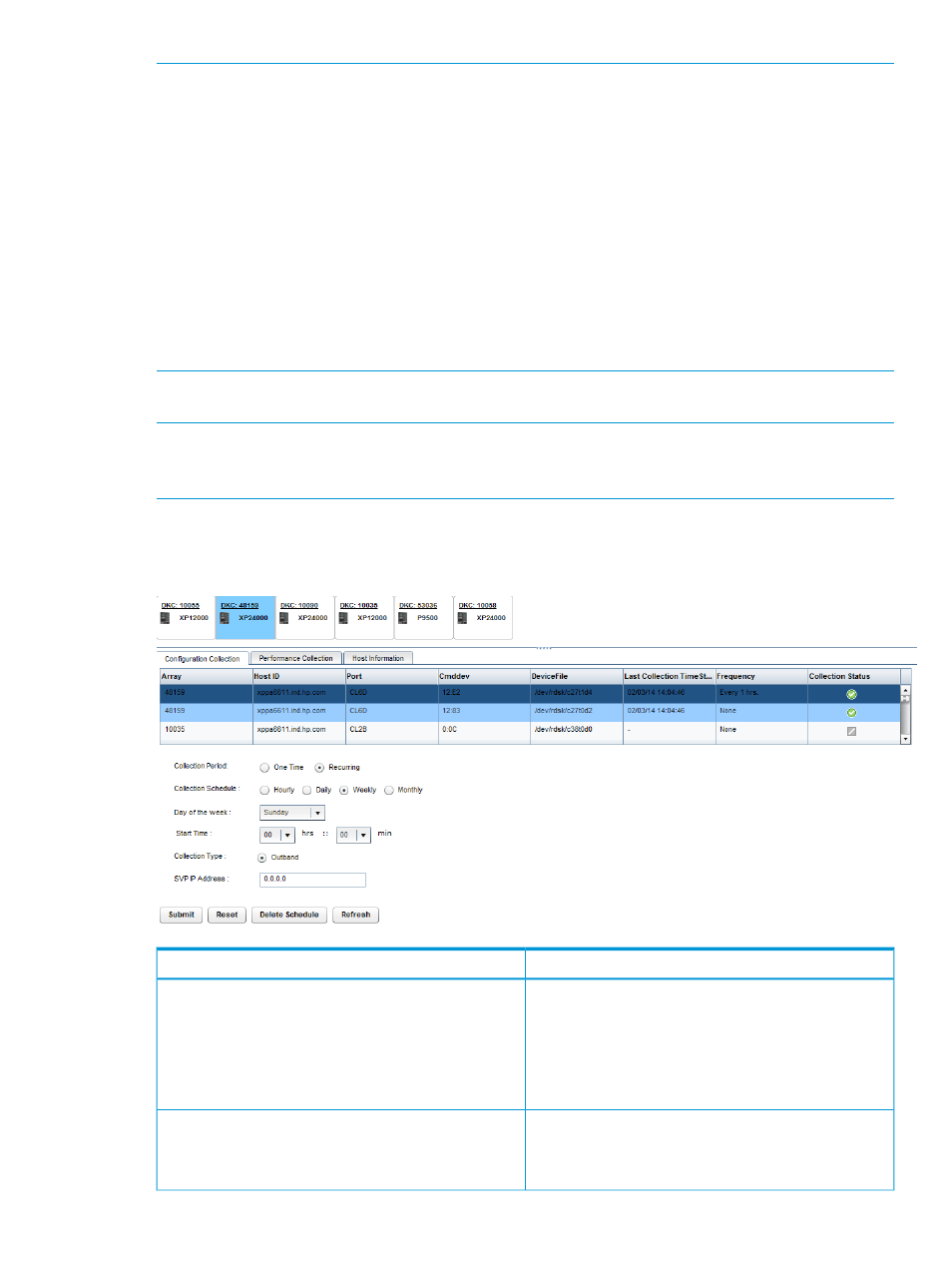

Figure 3 Array View screen
Description Screen elements
Available
XP/XP7 Array Health
Displays
the XP and the XP7 disk arrays that communicate
with
HP XP7 Performance Advisor through the connected
hosts.
Each XP or XP7 disk array is represented as an icon.
Their
DKC number and the model type are displayed on
the
icon. Click an XP or an XP7 disk array icon to view the
associated
command device records highlighted in the
Configuration
Collection table.
Displays the Host Information table that lists the host agents
connected to your HP XP7 Performance Advisor. You can Host Information
request updates from the host agents or remove their data
from HP XP7 Performance Advisor.
Array View screen 45
