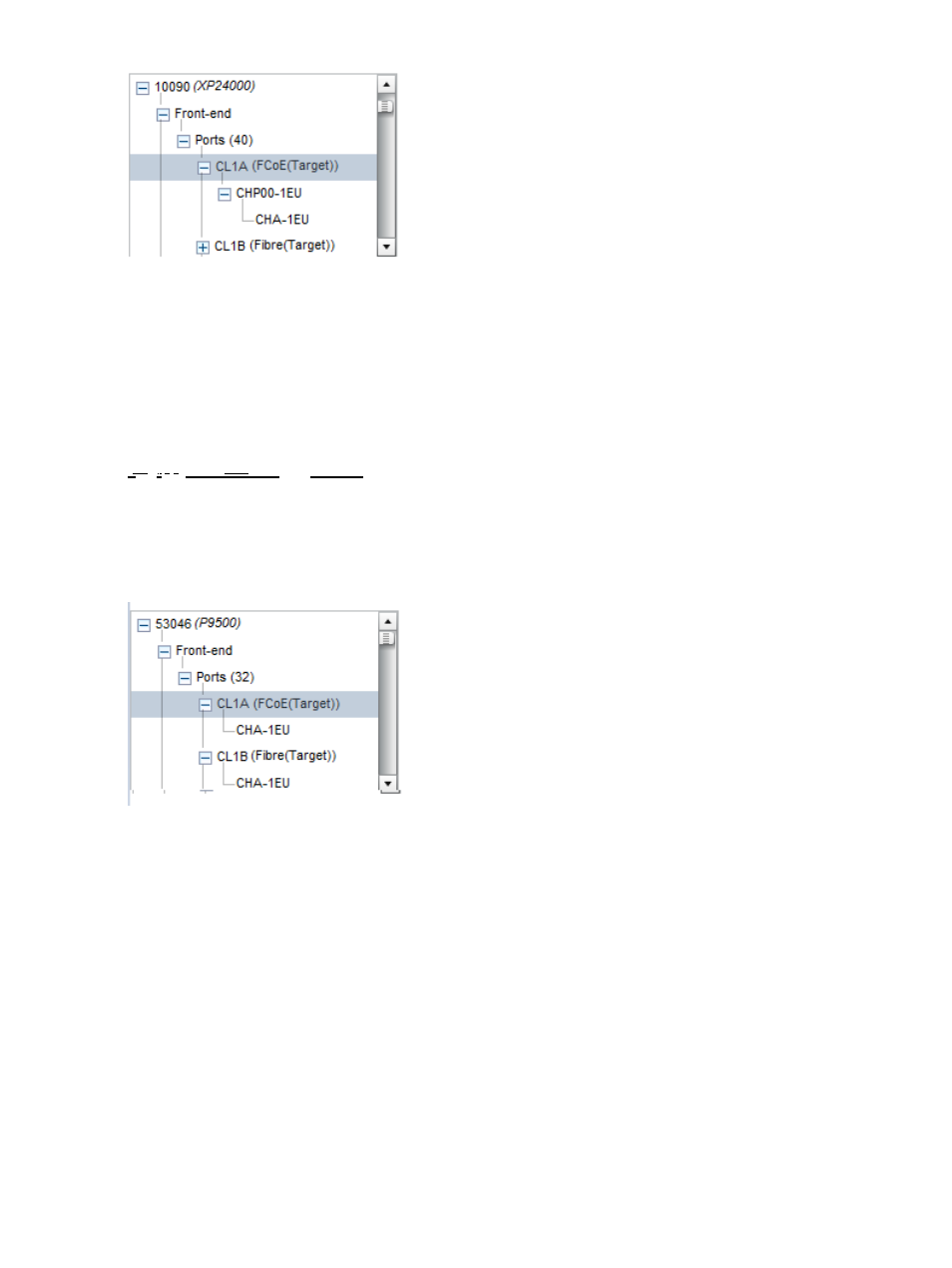

In the above image, under Front-end for the XP disk array 10090 (XPArray_1):
1. Front-end is the main category.
2. Port is the component type. The number (40) indicates the number of ports for the XP disk
array 10090.
3. CL1A is one of the individual ports.
4. CHP00–1EU is an individual MP associated with the port CL1A.
5. CHA–1EU is an individual CHA associated with the selected CHP00–1EU.
For
the XP7 disk arrays
The
Front-end main category comprises of the ports that further displays the associated CHAs.
Following
is the component selection path:
Front-end
> Port (component type) > Individual ports > Individual CHAs.
The
port type, such as Fibre or FCoE is also displayed beside the port ID.
In
the above image, under Front-end for the P9500 disk array 53046:
1. Front-end is the main category.
2. Port is the component type. The number (32) indicates the number of ports for P9500 Disk
Array 53046.
3. CL1A is one of the individual ports.
4. CHA–1EU is an individual CHA associated with the port CL1A.
The applicable metrics are displayed in the Available Metrics Choose Metric Category list. Select
the metrics at the component type or the individual component levels, or both to view the related
performance graphs in the Chart Work Area. For a description of these metrics, see
“Metric
Category, metrics, and descriptions” (page 386) .
The
following table provides the default set of metric categories that are displayed in the
Available
Metrics Choose Metric Category list for the XP and the XP7 disk arrays. The Yes and No
