Zooming in on data points across performance graphs
In addition to zooming in on data points for a particular duration, you can also zoom in on a
combination of data points in the chart window. If zoom preview is enabled, it also highlights the
focused area in the chart window. To zoom in on data points in the chart window:
•
Holding down the mouse button, drag the pointer across the data points that you want to
focus on.
The chart window displays the focused set of data points. The sliders on the Zoom preview
panel automatically shift the focus to the selected set of data points. The focused area is
highlighted in blue, in the Zoom preview panel.

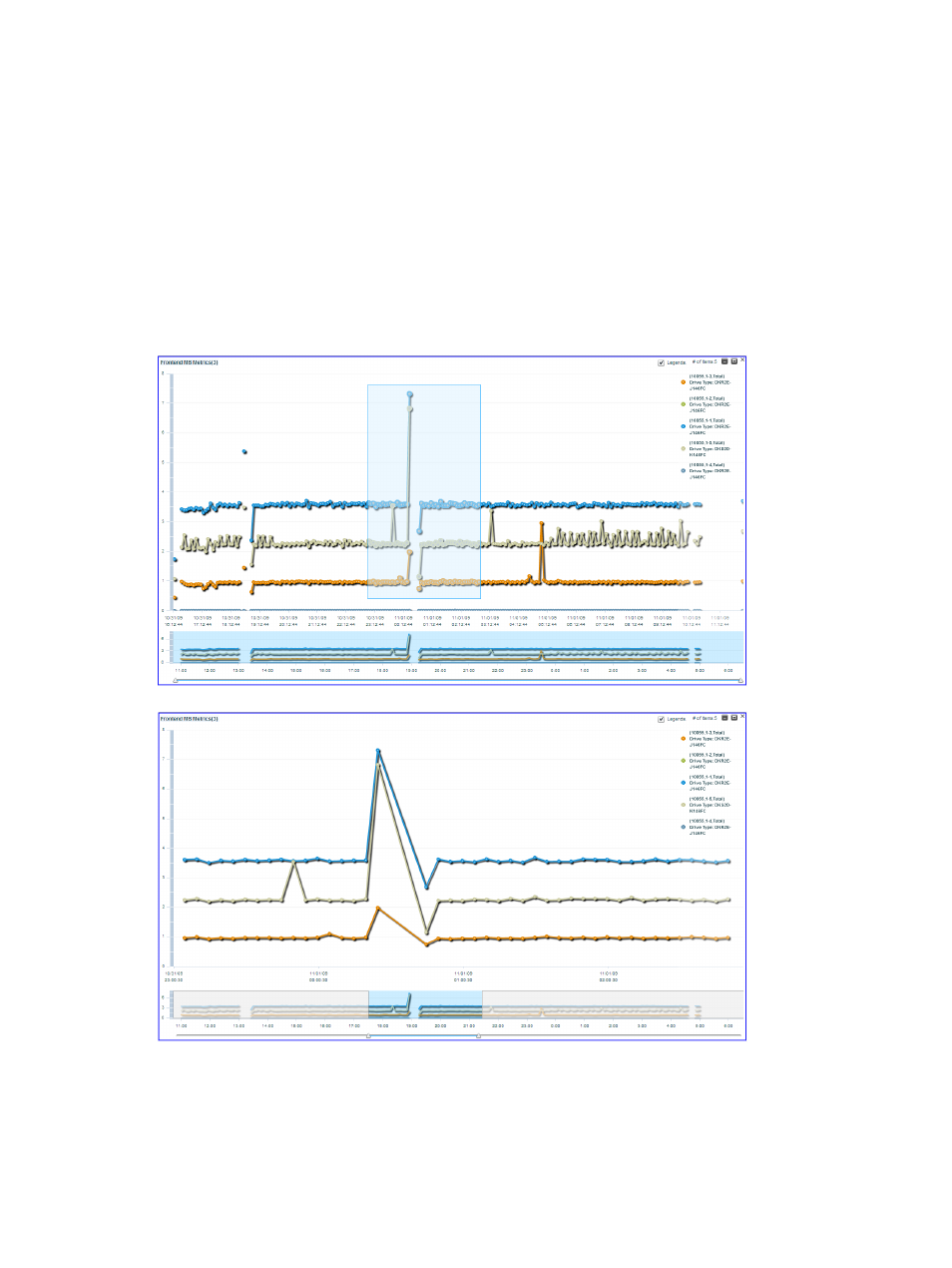

In the following set of images, the first image displays the data points being focused across
the performance graphs. The second image displays the focused set of data points with the
Zoom preview panel updated accordingly.
To zoom out, click an empty area in the chart window.
In the Zoom Preview panel, if you plot the chart for one day, the chart displays data with time
stamp.
