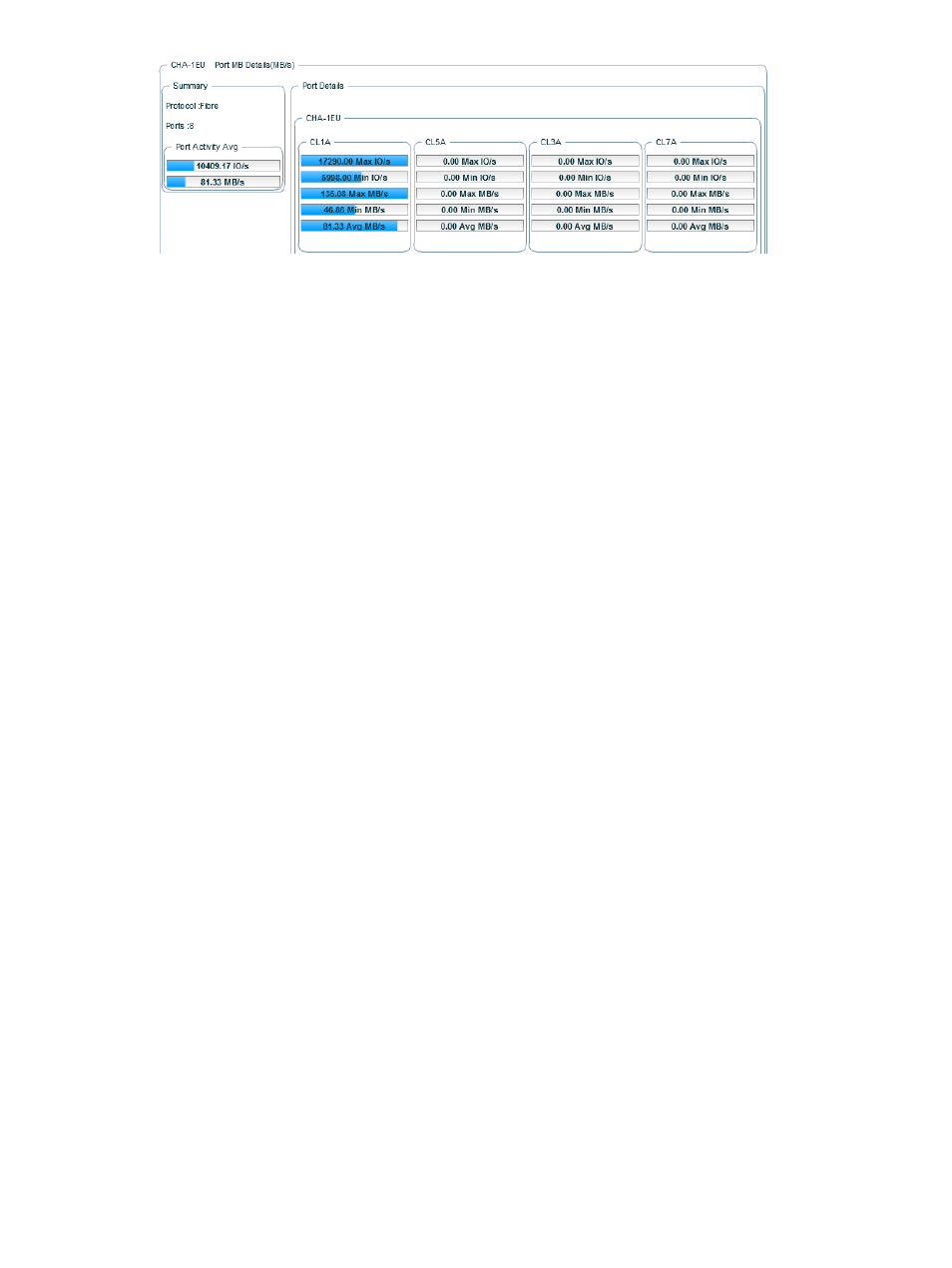

The individual performance data for CHA-1EU includes the following:
•
Summary:
Fibre protocol is used ◦
◦ Eight ports are associated with CHA-1EU
◦ Port Activity Avg shows average I/Os as 10409.17, which is an average of the overall
average I/Os on all the eight ports. It also displays the average MB/s as 81.33, which
is the an average of the overall average MB/s on all the eight ports.
•
Port Details:
CL1A, CL5A, CL3A, and CL7A are the ports for CHA-1EU ◦
◦ Maximum and minimum I/Os
◦ Maximum, minimum, and average throughput of data in MB/s
For example, the Max I/Os and Min I/Os for CL1A are 17290.00 and 5998.00
Related Topics
•
“Viewing performance summary” (page 177)
•
“Viewing ACP/DKA data” (page 189)
•
“Viewing MP blade utilization for P9500/XP7 disk arrays” (page 193)
•
“Viewing Smart and ThP pools data for P9500/XP7 disk arrays” (page 197)
•
“Utilization Summary” (page 183)
•
“10 busiest LDEVs/Ports” (page 208)
•
“10 busiest LDEVs/RAID groups” (page 209)
•
“Port summary” (page 212)
•
“Viewing LDEV data” (page 214)
Viewing ACP/DKA data
Based
on whether you selected an XP or an XP7 disk array, click an ACP/DKA pair in the ACP
Pair
Backend group box under the Performance View tab to view the summary of all the installed
ACP/DKA
pairs. You can also click ACP for an XP disk array or CHA/DKA for an P9500/XP7
disk
array in the component selection tree.
The summary is displayed in the ACP/DKA summary table for the XP disk arrays and the DKA
summary table for the P9500/XP7 disk arrays (see following images).
•
The ACP/DKA summary table includes the performance and utilization metrics of all the
installed ACP/DKA pairs
•
The DKA summary table includes only the performance metrics of all the installed DKAs
Viewing ACP/DKA data 189
