Profile Abort Actions

If a running profile is forced to end early, the Profile Abort Action defines action taken by
the instrument. The profile abort action is set in the profile header.

If a profile sequence is forced to end early, the profile abort action of the current segment will
be used.


The possible abort options are explained below.

Possible Profile Abort Actions:

See

note

below

A

E

Abort the profile and maintain the value of the setpoint at the time of the abort.

B Abort the profile and exit Profiler Mode using the Controller Setpoint value.
C Abort the profile and remain in Profiler Mode with the Control outputs off.

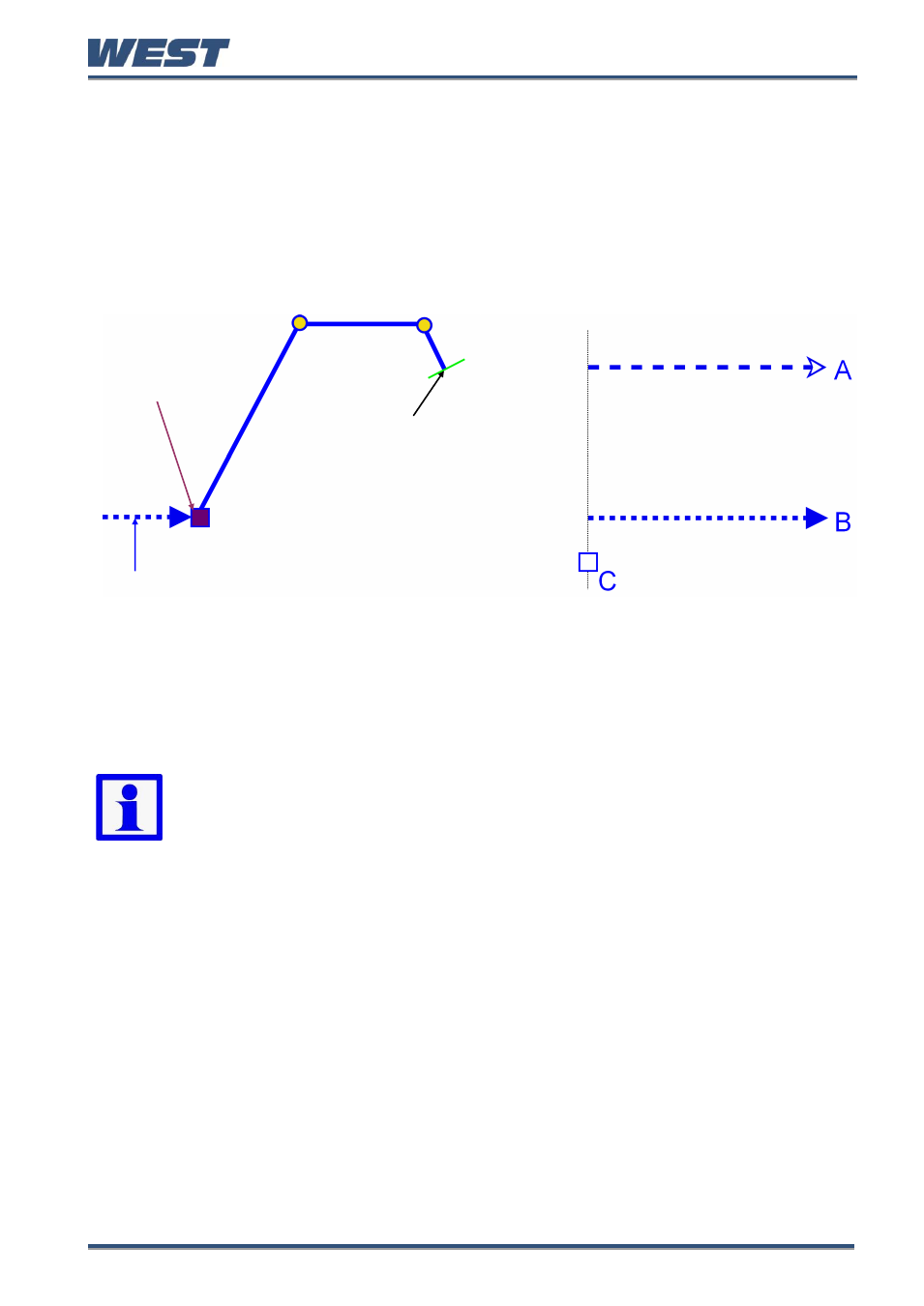

Figure 57.

Profile Abort Action

Note: When using two loop profiles, the abort-action applies to both loops, but
each ends with its own individual setpoint in line with the method chosen.

Controller SP

Run
(Start-on SP)

Profile Aborted

= Control Off

Last Profile SP

Controller SP
