Operation and Setup, cont’d
ISM 824 Integration Scaling Multiswitcher • Operation and Setup 3-22
ENTER
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
OUTPUTS
INPUTS
C O N T R O L
PRESET ESC VIEW
C O N T R O L
PRESET ESC VIEW
Step 3.
Press and release the desired input or
output button (preset) to recall.
The selected button flashes red.
The Enter button flashes red.
The LCD shows the selected preset number
to recall.
P
reset
#07
R
ecall
Step 4.
Press and release the
Enter button to recall the preset.
All lights extinguish and the LCD resets.
ENTER

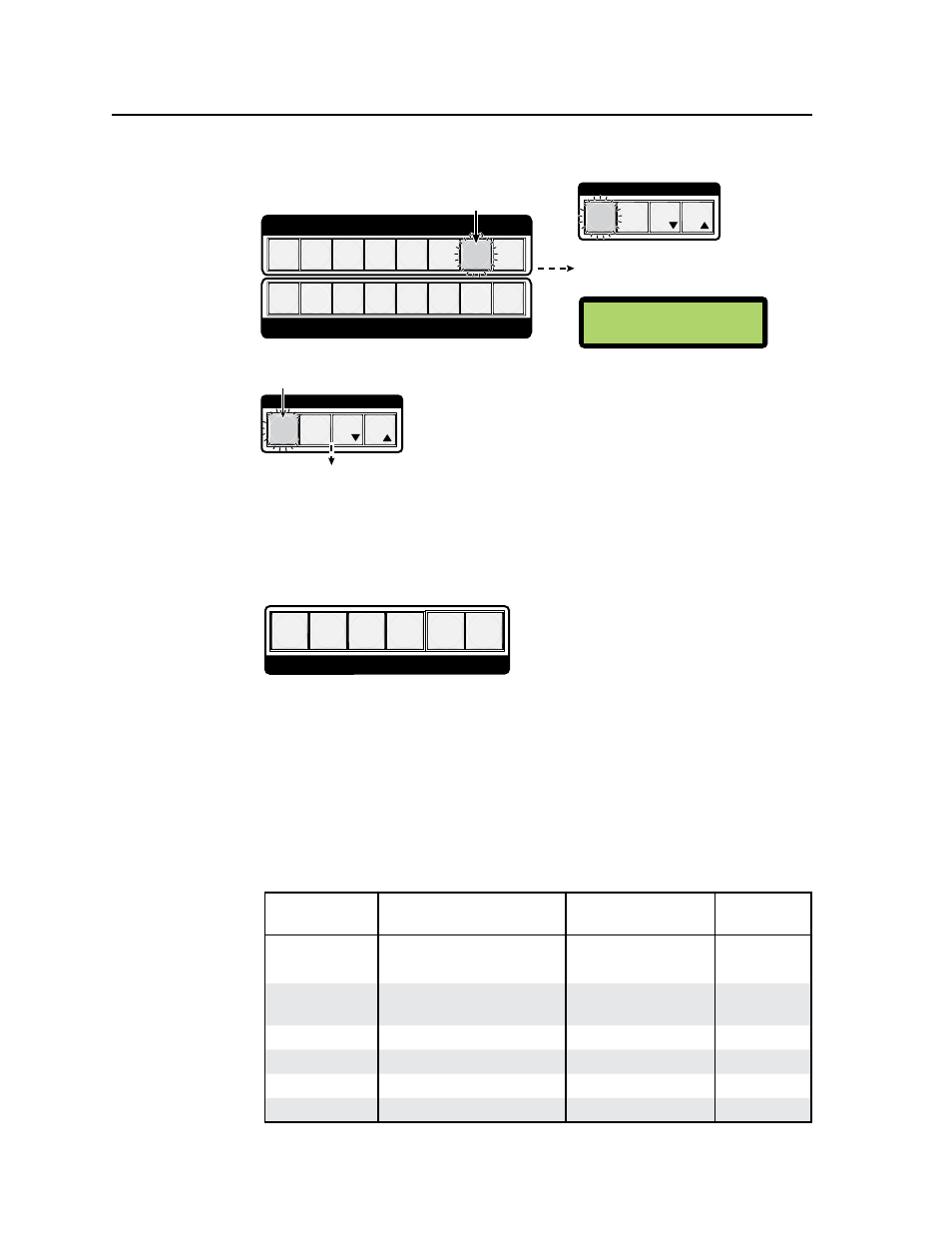

Figure 3-30 — Steps 3 and 4 for recalling a preset
Picture adjustments
Overview
The ISM 824 has six buttons for picture adjustment modes. These modes are color/
tint, brightness/contrast, detail, position, size, and zoom adjustments.
PICTURE ADJUSTMENTS
POSITION DETAIL SIZE ZOOM BRIGHT/
CONT
COLOR/
TINT
Figure 3-31 — Picture adjustment buttons
N
Picture adjustments can only be made on input/output ties for ISM RGB,
ISM DVI, ISM HDSDI, ISM VS, and ISM SC output boards. All pass-through
and wide band outputs do not require any picture adjustment control.
Adjustments can be made from the front panel, RS-232/RS-422, or via Ethernet
connection.
See chapter 4, “SIS ™ Programming and Control”, for RS-232/RS-422 commands,
chapter 5, “ISM 824 Multiswitcher Software” , and chapter 6, “HTML Operation” for
Ethernet commands.
The following table shows which adjustments can be made to specific input signal type
and output board combinations.
Adjustments
ISM RGB, ISM DVI,
and ISM HDSDI
ISM VS
ISM 1WB,
ISM 2WB
Color/Tint
Vid, YC
(Tint on NTSC only) Vid, YC
(Tint on NTSC only)
N/A
Brightness/
Contrast
All inputs Vid, YC, YUVi N/A
Detail All inputs Vid, YC, YUVi N/A
Position All inputs Vid, YC, YUVi N/A
Size All inputs Vid, YC, YUVi N/A
Zoom All inputs Vid, YC, YUVi N/A
Figure 3-32 — Picture adjustment table
