5-19 ISM 824 Integration Scaling Multiswitcher • ISM 824 Multiswitcher Software
Output Cards page
Selecting the fourth tab opens the Output Cards page, and allows the user to
configure up to four output cards. Each installed configurable card has a radio
button next to the name. Click on this button to choose the board to be configured.
N Non-configurable cards, such as wideband cards, show a grayed-out radio
button.
ISM RGB (Universal RGB)
Use this page to configure the ISM RGB output board (for any input) for the
following settings:
• create an input to output tie
• picture adjustments — image color, tint, brightness, contrast, detail, horizontal
and vertical positioning, horizontal and vertical sizing, and zoom
• input settings — pixel phase, number of active and total pixels, number of active
lines, and number of the horizontal and vertical start point
• aspect ratio — select a value (16:9 or 4:3)
• output configurations — resolution, output type, output rate, and sync polarity
• advanced configurations — test pattern selection, film mode, blue mode, RGB
signal pass-through selection, auto image, and auto memory
• user presets (presets #1-3) — save and recall
• input presets (presets # 1 through 128) — save and recall
• Start Auto Image
• Freeze (image)

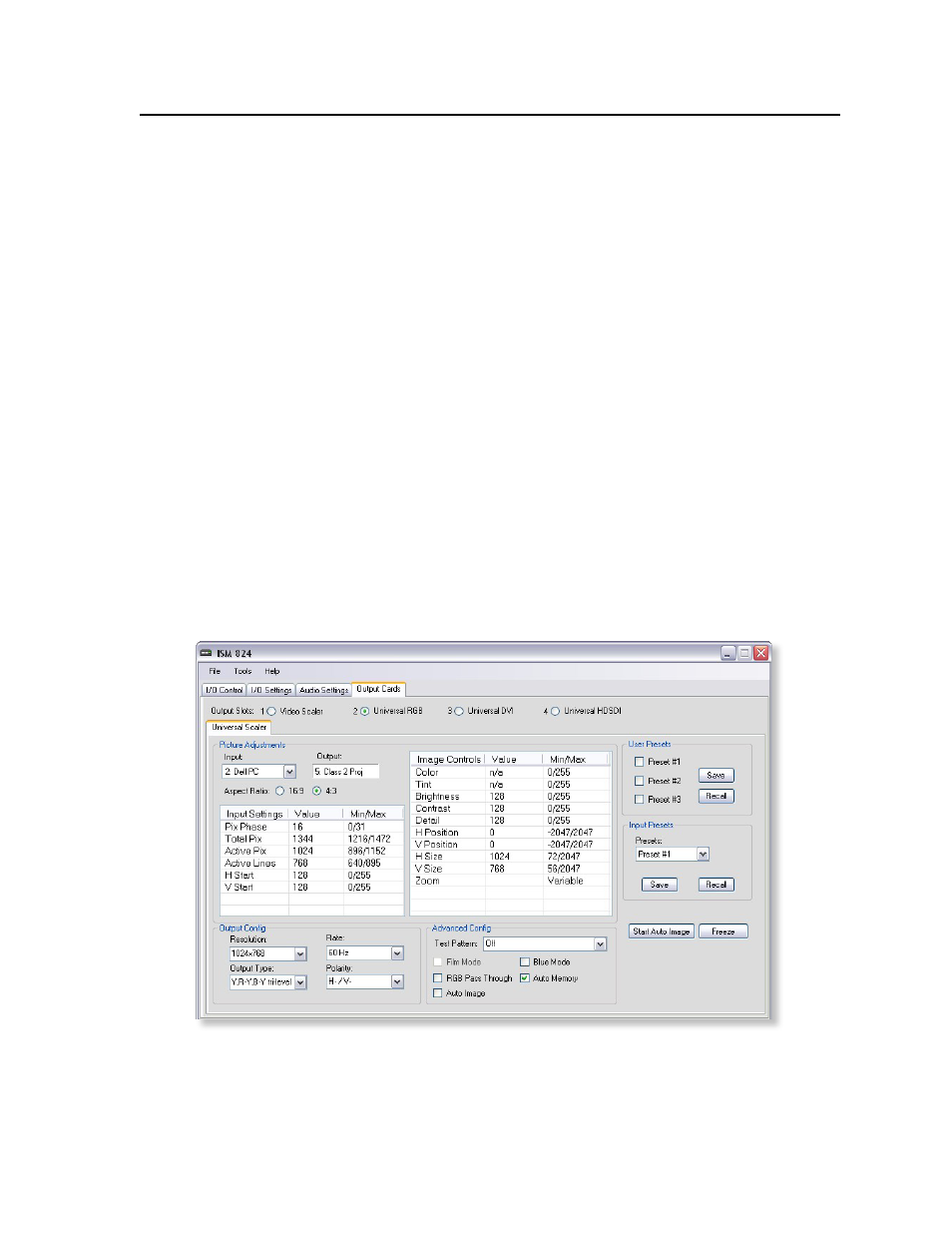

Figure 5-30 — Current ISM RGB (Universal RGB) output board settings
N Each input to any output board can have different picture adjustments settings.
The image control default settings are 50% of the min/max (see figure 5-30).
Some values may be auto-detected (e.g. for H and V size), and values that are
not available are shown as N/A.
