5-25 ISM 824 Integration Scaling Multiswitcher • ISM 824 Multiswitcher Software
ISM VS (Video Scaler)
Use this page to configure the ISM VS output board (for any input) with the
following settings:
• create an input to output tie
• picture adjustments — image color, tint, brightness, contrast, detail, horizontal
and vertical positioning, horizontal and vertical sizing, and zoom
• output configurations — resolution, output type, output rate, and sync polarity
• advanced configuration — top and bottom blanking, blue mode, 2:2 pull down,
edge smoothing filter, enhancement mode, auto memory, and auto image
• user presets (presets #1-3) — save and recall
• input presets (presets # 1 through 128) — save and recall
• Start Auto Image
• Freeze (image)

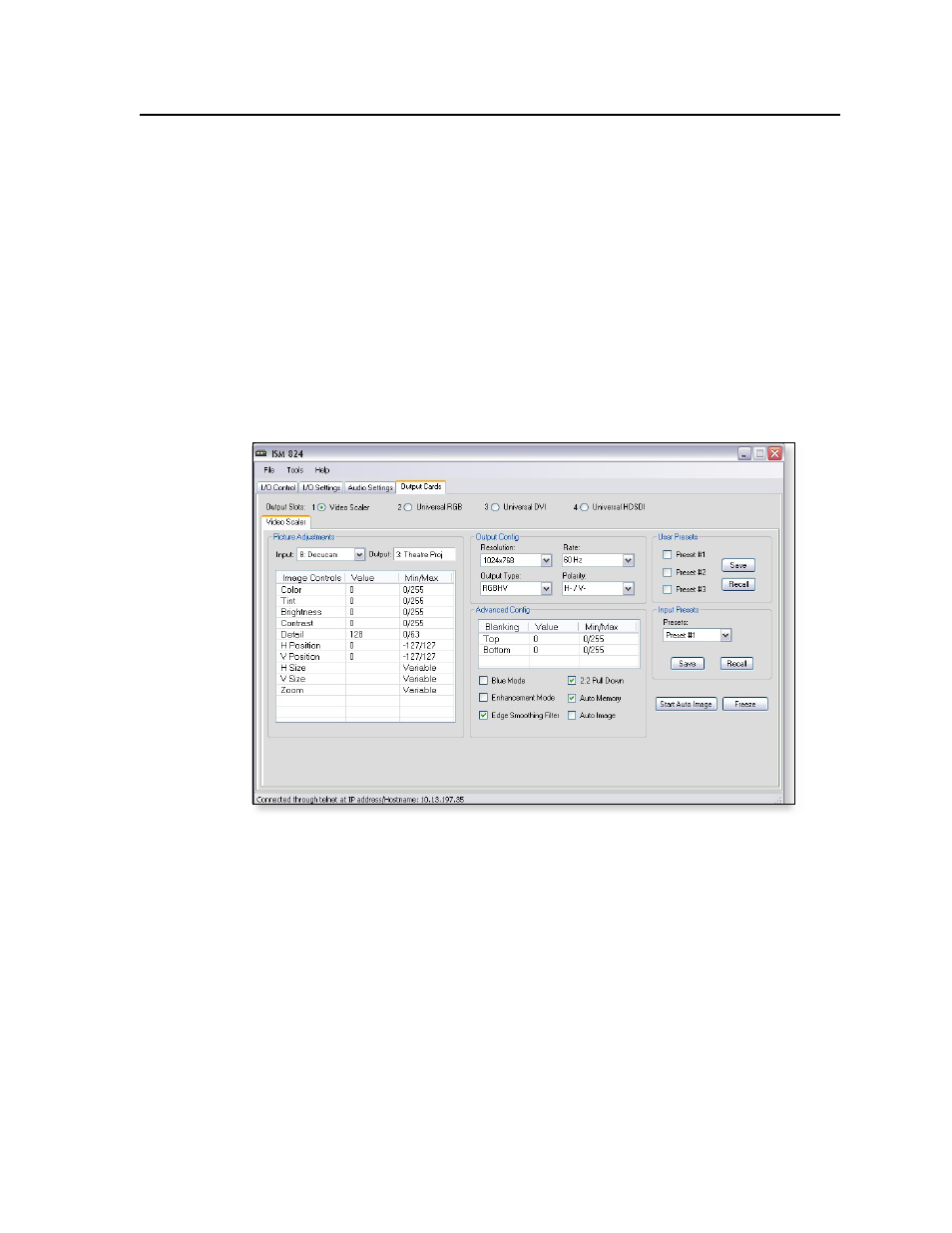

Figure 5-32 — Current ISM VS (Video Scaler) output card settings
N Each input to any output card can have different picture adjustments settings.
The image control default settings are 50% of the min/max (see figure 5-31).
Some values may be auto detected (e.g. for H and V size), and values that are
not available are shown as “N/A”.
Making input to output ties
To make input to output ties, do the following:
1
. Click the input drop down box and select the input to be tied to the current
card.
N When an input is changed, all the fields on the page refresh to show the current
settings for that input. The output number cannot be changed, as this is the
output (port) where the card is installed.
N To have no input ties to an output card, select N/A from the inputs list.
Some configurable fields may not be available for the input selected. Those fields
show “N/A”.
