ISM 824 Integration Scaling Multiswitcher • Operation and Setup

Adjusting the picture position

To adjust the picture position do the following:
1

.

Press the Esc button to clear all pending changes and reset the LCD.

2

.

Press and release the Position adjustment button. The output buttons for

scaler /scan converter boards (outputs 3 through 8) and any associated (tied)

input buttons light solid green. Untied outputs flash green. The LCD panel

shows the current position setting (see figure 3-36) for that lit output.

N

All applicable outputs light or flash green. To change to a different output, press

the desired output button. The selected button will light green.

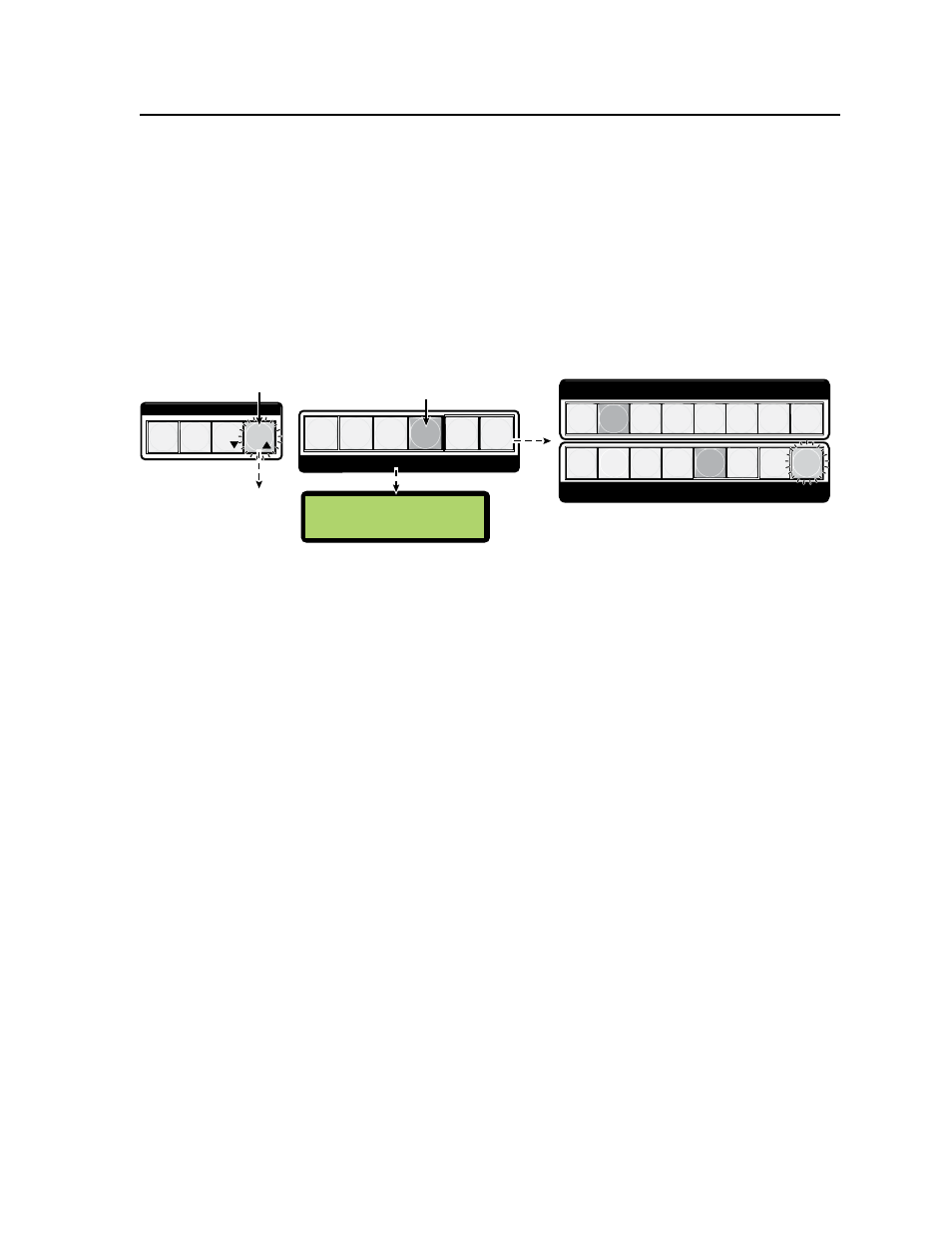

Figure 3-36 — Steps 1 and 2 for adjusting picture position

3

.

Use the left front panel encoder (

[

) to adjust the horizontal position.

N

The horizontal adjustment values are:

for the ISM RGB, DVI, and HDSDI boards (-2047 to +2047, default is +0000)
for the ISM VS board (-127 to +127, default is +0000)

A setting increment moves the whole picture to the right, and a setting
decrement moves the whole picture to the left. The vertical alignment does not
change.

Use the right front panel encoder (

{

) to adjust the vertical position.

N

The vertical adjustments values are:

for the ISM RGB, DVI, and HDSDI boards (-2047 to +2047, default is +0000)
for the ISM VS board (-127 to +127, default is +0000).

A setting increment moves the whole picture down, and a setting decrement
moves the whole picture up. The horizontal alignment does not change.

4

.

Press the Esc button to clear all buttons and reset the LCD.

Adjusting the picture size

To adjust the picture size do the following:
1

.

Press the Esc button to clear all pending changes and reset the LCD.

2

.

Press and release the Size adjustment button. The output buttons for

scaler/scan converter boards (outputs 3 through 8) and any associated (tied)

input buttons light solid green. Untied outputs flash green. The LCD panel

shows the current size setting (see figure 3-37) for that output.

N

All applicable outputs light or flash green. To change to a different output, press

the desired output button. The selected button will light green.
