6-19 ISM 824 Integration Scaling Multiswitcher • HTML Operation
ISM DVI and ISM HDSDI
The page for the ISM DVI and ISM HDSDI is identical, and is shown below:

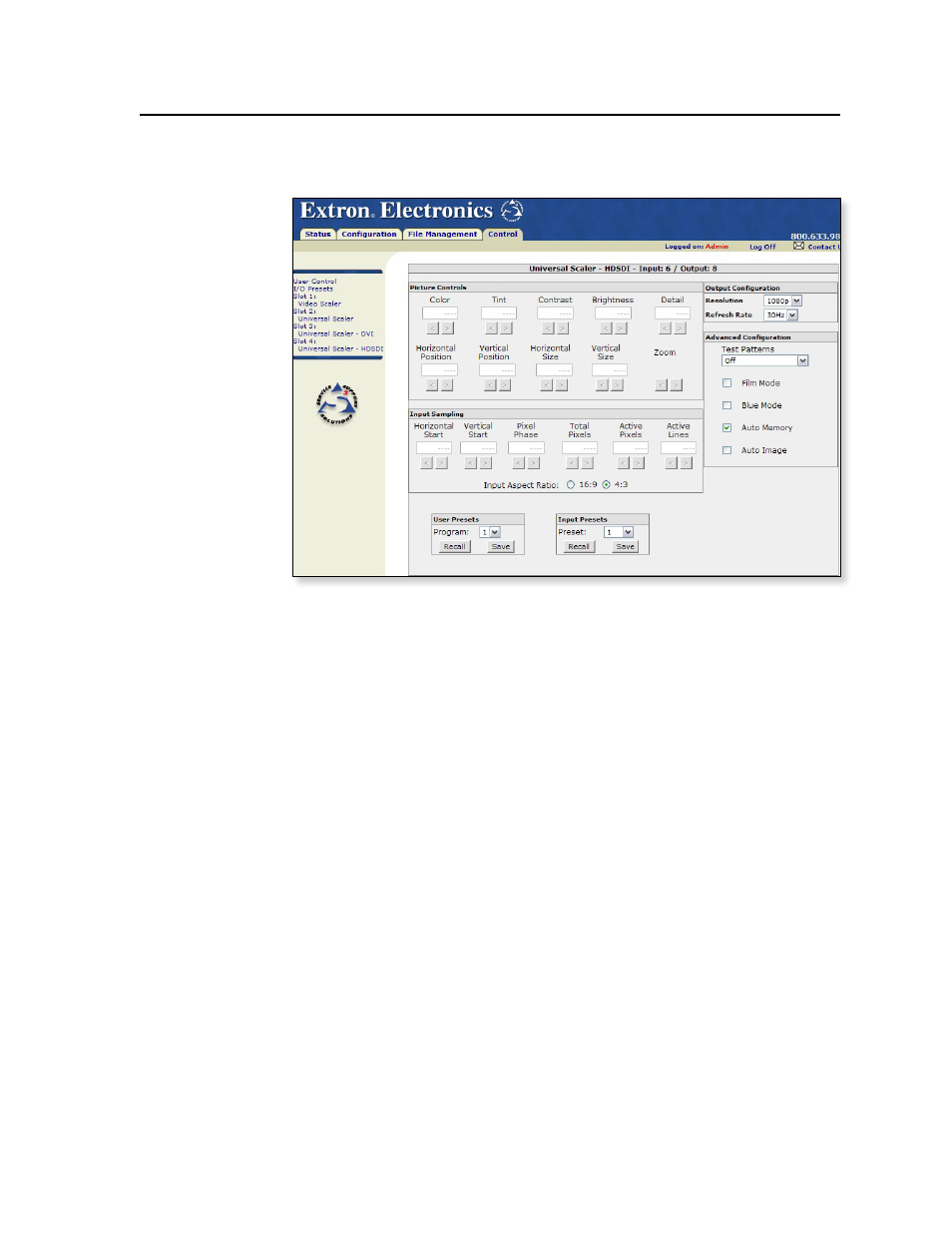

Figure 6-18 — ISM DVI output card configuration screen
On the top of this page, the input number that is currently tied to the card’s output
tie is shown (see figure 6-18).
Also from this page adjustments to the following can be made:
• picture controls (color, tint, contrast, brightness, detail, horizontal and vertical
position and size, and zoom)
• input samplings (horizontal and vertical start, pixel phase, total and active
number of pixels and lines, and input aspect ratio)
• user and input presets can be saved and/or recalled
• output configuration parameters (resolution and refresh) can be changed
• advanced configuration settings (test patterns, film mode, blue mode,
auto memory, and auto image) can be turned on or off
To make picture control adjustments do the following:
1 . Within the Picture Controls section, select the setting that is to be changed,
and click on either the left arrow (<) to decrease the value, or on the right
arrow (>) to increase the value, one step at a time. After every click the page
refreshes and shows the new value. The device is updated to the new setting.
N Alternatively, if the new setting value is known, enter it directly into the field,
and press enter. The page refreshes, shows the new value, and the device is
updated.
To adjust the input settings, do the following:
1 . Within the Input Settings section, select the setting that is to be changed,
and click on either the left arrow (<) to decrease the value, or on the right
arrow (>) to increase the value, one step at a time. After every click the page
refreshes and shows the new value. The device is updated to the new setting.
