3. Click Take. The groups are now made (see figure 5-11).

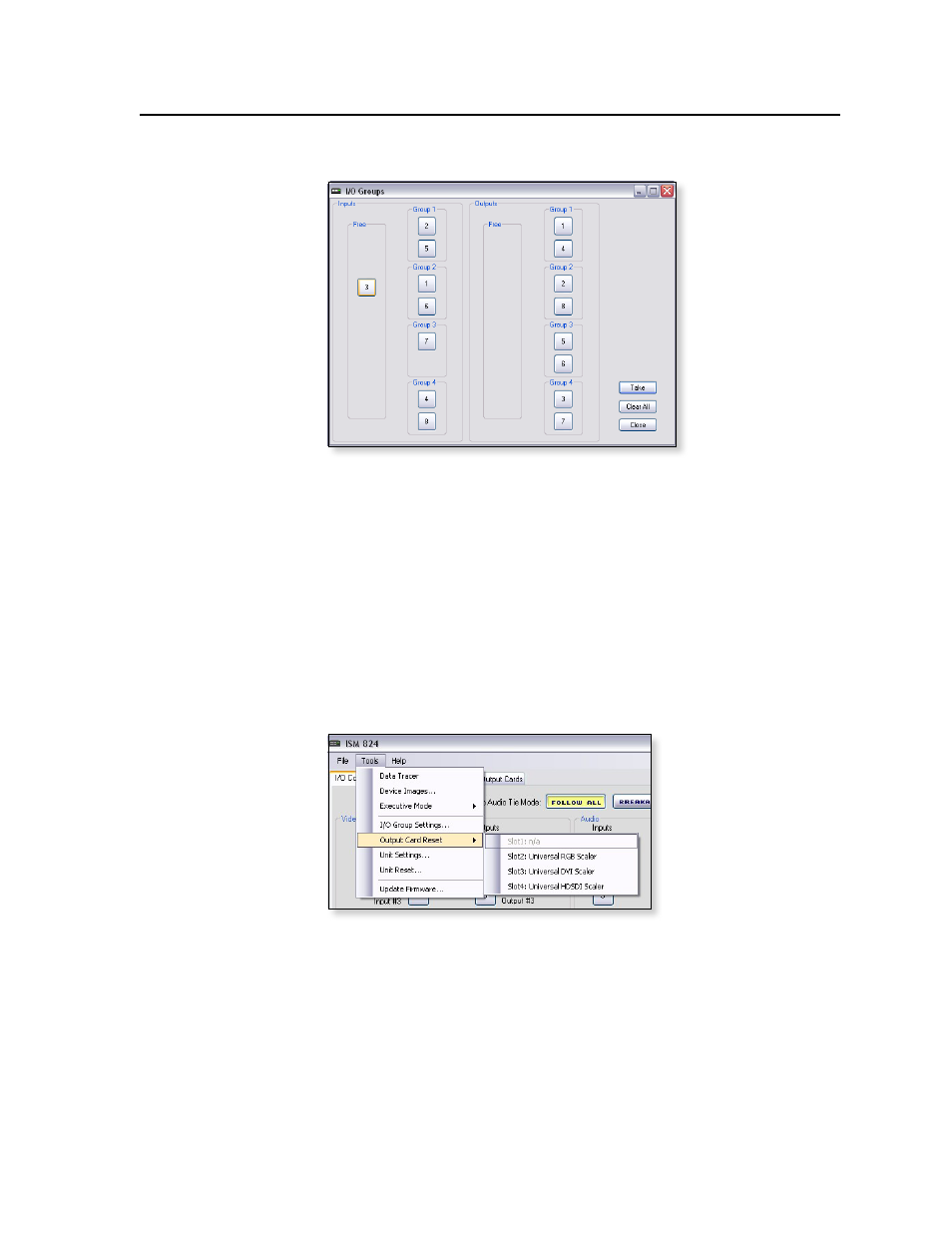

Figure 5-11 — ISM 824 I/O grouping completed
N To clear all groups click Clear All.
To remove individual inputs or outputs from a group, drag the selected button
onto the applicable free box and release.
To move individual inputs or outputs to different group, drag the selected button
into the desired group, and release.
4 . Click Close to exit from the I/O Groups window. The window closes.
• Output Card Reset — Click on this to reset any installed output cards back to the
factory default settings.
1 . Click on the menu to open a drop down window. This window lists the
installed cards (see figure 5-12).
Figure 5-12 — ISM 824 Output Card Reset
2 . Select the output card to reset. The window closes and a new confirmation/
cancellation window opens.
3 . Click OK to reset the selected output card, or click Cancel to exit the operation
without making changes.
The window closes and the card is either reset to the default state, or no
changes are made.
