3-21 ISM 824 Integration Scaling Multiswitcher • Operation and Setup

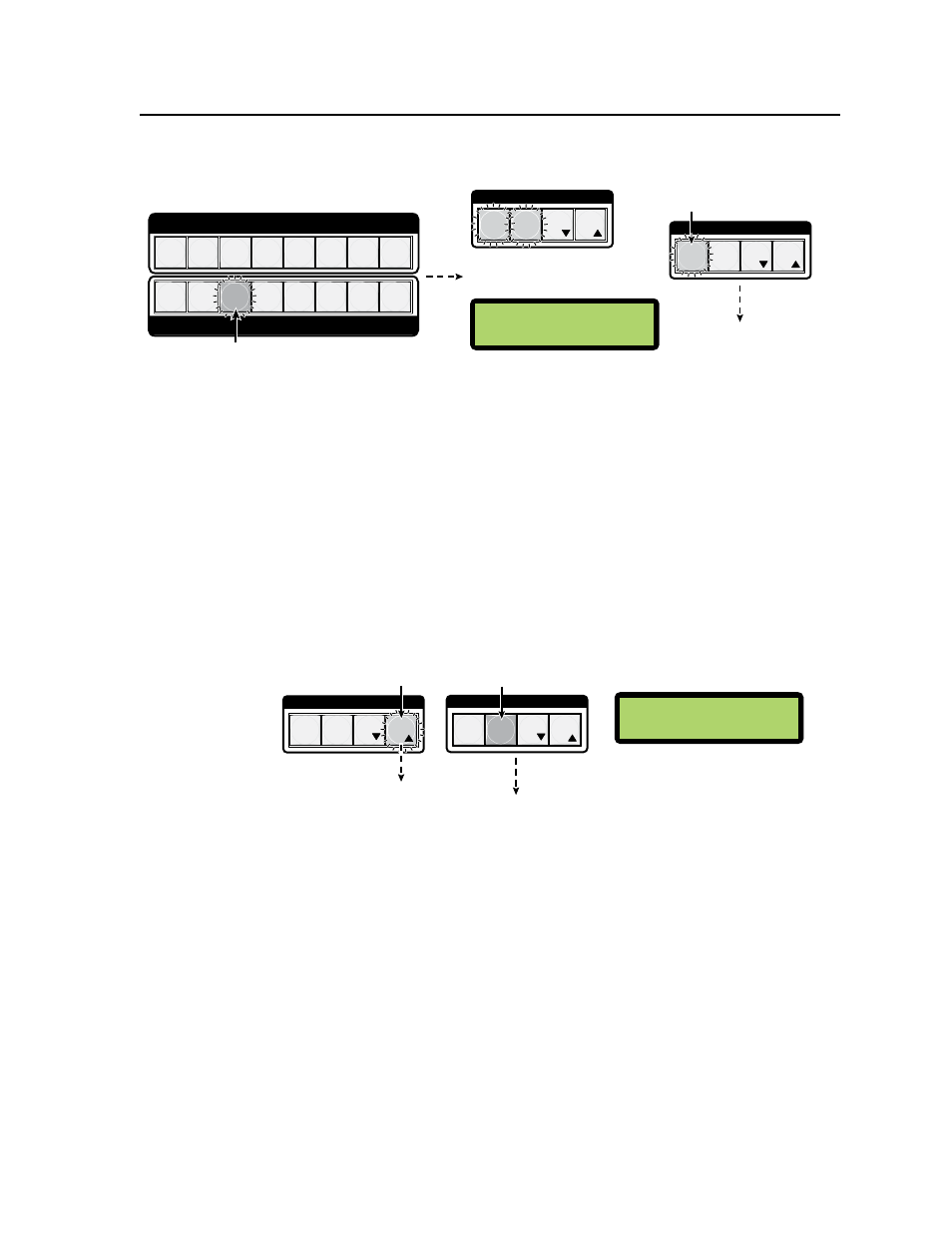

Figure 3-28 — Steps 3 and 4 for saving a preset
4 . Press the Enter button. All lights extinguish and the preset (the current
configuration) is saved.
Recalling a preset
To recall a preset do the following:
1
. Press the Esc button to clear all pending changes and reset the LCD.
2 . Press and release the Preset button. The Preset button lights red, and input
and output buttons with previously saved presets light red. The LCD panel
shows the preset recall mode (see figure 3-29).
N If no buttons are pressed for 30 seconds after step 2, the Preset mode times out,
and all buttons extinguish.
C O N T R O L
PRESET ENTER ESC VIEW
C O N T R O L
PRESET ENTER ESC VIEW
Step 1.
Press the Esc button to
clear all selections.
The Esc button
flashes
green once.
Step 2.
Press and
release the Preset
button. The button lights red.
The input and output buttons with saved
presets assigned light
red.
N The LCD shows the Preset
recall mode.
P
reset
#00
R
ecall
Figure 3-29 — Steps 1 and 2 for recalling a preset
3 . Press and release the desired saved preset button (input or output) to recall.
The selected button and the Enter button flash red. The LCD shows the
selected preset number (see figure 3-30).
N Input buttons have preset addresses 1 through 8, output buttons have preset
addresses 9 through 16.
4 . Press the Enter button. All lights extinguish (except Video and Audio) and the
preset is recalled and becomes the current configuration.
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
OUTPUTS
INPUTS
C O N T R O L
PRESET ENTER ESC VIEW
C O N T R O L
PRESET ENTER ESC VIEW
Step 1.
Press the Esc button to
clear all selections.
The Esc button flashes
green once.
Step 2.
Press and
hold the Preset
button. The button flashes
The input and output buttons light red.
0 � The LCD shows the Preset save mode.
Step 3.
Press and release the desired input or
output button.
P
reset
#11
S
ave
Step 4.
Press and release the
Enter button to save the preset.
All lights extinguish and the
LCD resets.
P
reset
#00
S
ave
C O N T R O L
PRESET ENTER ESC VIEW
C O N T R O L
PRESET ENTER ESC VIEW
The Selected button blinks red.
The Enter and Preset buttons flash red.
The LCD shows the selected preset
number.
