Installation, Step 4 — video outputs, Step 5 — audio outputs – Extron Electronics ISM 824 User Manual

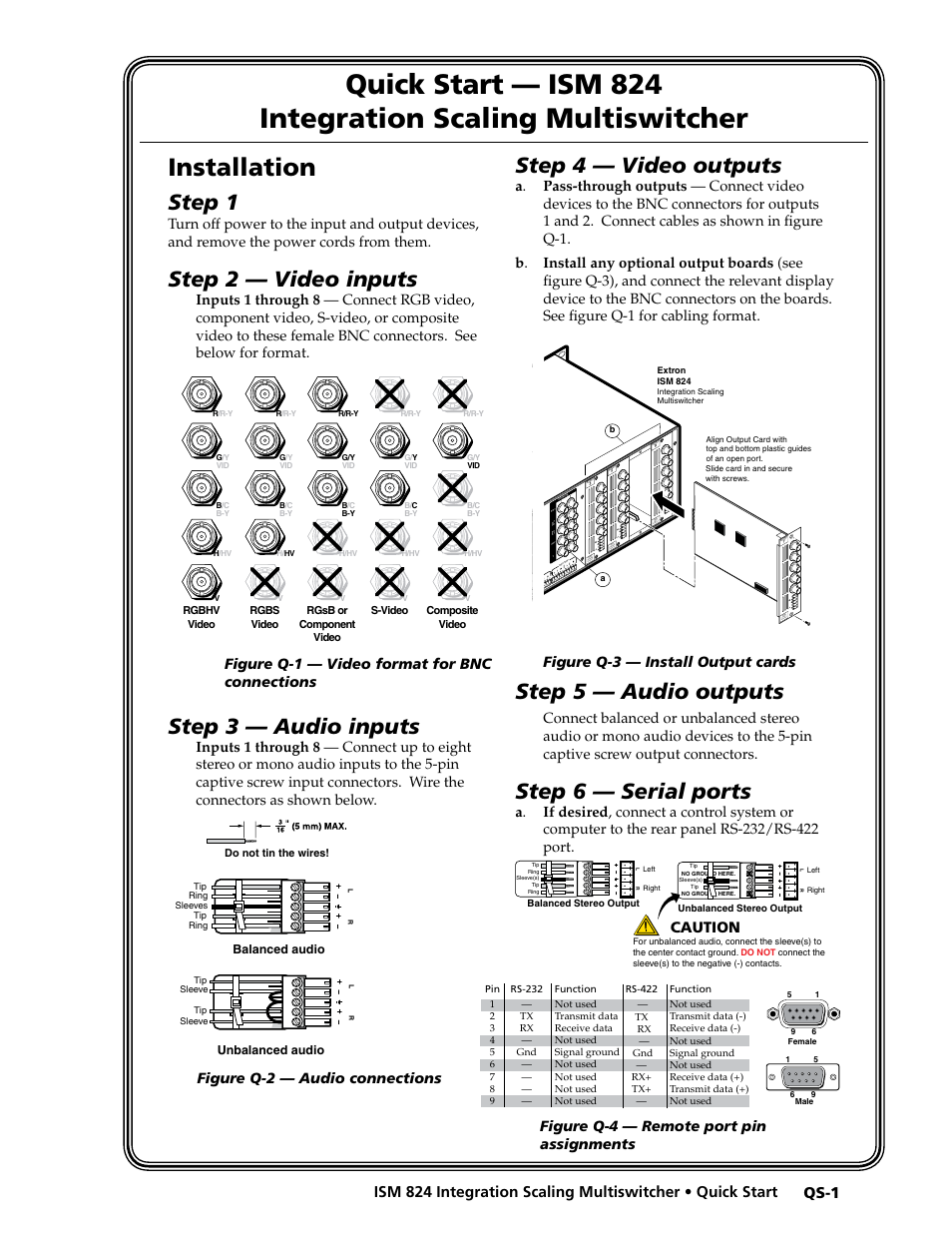

Page 5: Step 6 — serial ports, Step 1, Step 2 — video inputs, Step 3 — audio inputs, Caution, Figure q-1 — video format for bnc connections, R/ r-y g/y b/ b-y h/ hv v
