This is the only capture area of the screen. It is used to enter the name to
assign to a clip/playlist, or to enter the ID of a clip to recall.
9.3.5.2 M
ODE
F
IELD
Indicates if the clip screen is currently in CLIP or CAM mode. In CLIP mode,
actions on a clip will use all available cameras for this clip. In CAM mode,
actions on a clip will only use the selected camera for this clip. Default
value is CAM mode.
9.3.5.3 C
LIP
C
ONTROL
A
REA

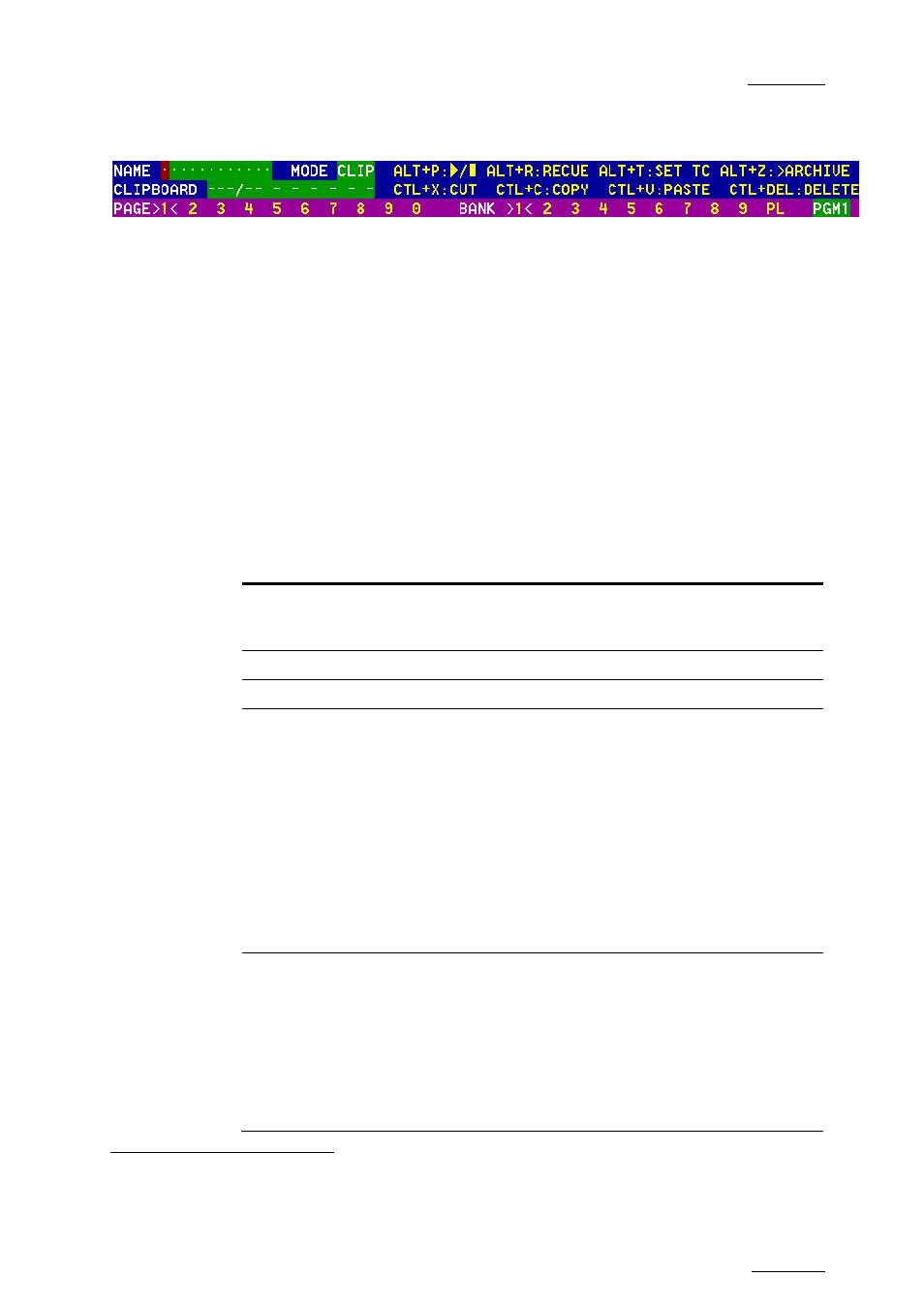

It is dedicated to play-out control.
Command Description
ALT+P:►/■ Plays at 100% speed except for super motion clips
which are played back at 33% speed; and pause
playback on the current picture.
ALT+R:RECUE Jumps to the Short IN point.
ALT+T: SET TC Restripes the time code of the current clip.
ALT+Z:>ARCHIVE Allows the operator to flag a clip to place it in the
archive queue of the XFile
1 defined in the Setup
menu (p.3.3 F1) or in the Setup screen.
When a clip is flagged for archiving, but has not yet
been archived, its ID will be blinking green in the Clip
screen. It is permanently highlighted green when the
archiving of the clip is completed.
Depending on the mode selected with the F2 key
(CLIP/CAM), the >ARCHIVE flag is assigned only to
the camera angle of the clip selected with the green
cursor (CAM mode), or to all camera angles of the
clip (CLIP mode).
PGM X Located in the bottom right corner of the clip screen,
this field is only visible if the Call Channel VGA
function has been enabled in the Setup Menu (p. 3.1
– F5) or in the Setup Screen, and is only effective in
CAM mode, not in CLIP mode. It allows the operator
to select on which channel clips called using the
keyboard/tablet and VGA should be loaded.
Press ALT + F1 on the keyboard to select PGM1, ALT
+ F2 for PGM2/PRV, ALT + F3 for PGM3, etc. This
1 The EVS Xfile is a 2U device with 2 removable hard drives, that can be connected to the XNet SDTI network. Clips
can be archived to/restored from the removable media.
