14.2 PAINT MODE MONITOR DISPLAY

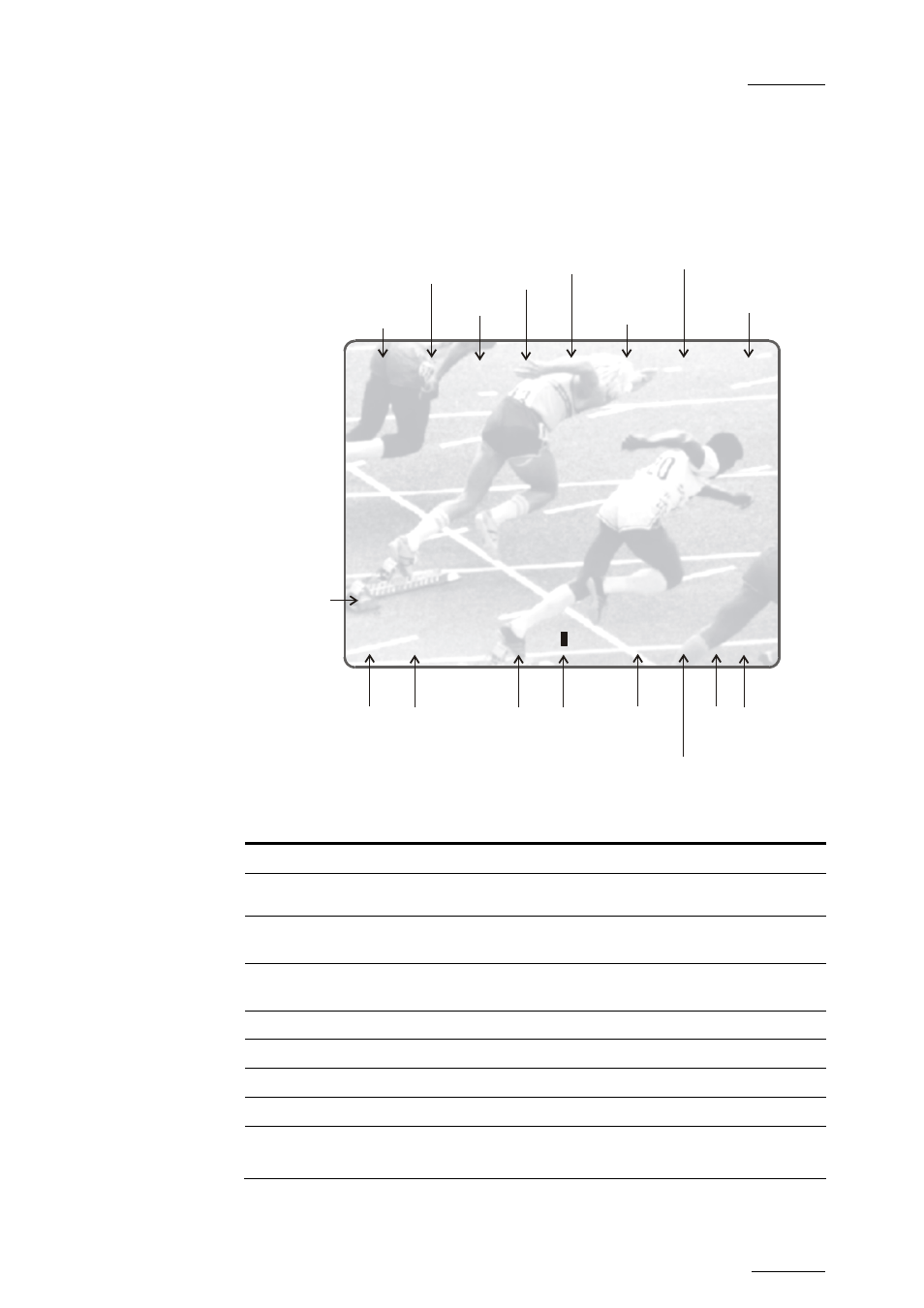

This section presents the available functions on the Paint Mode monitor
display. For more information, refer to the subsections below.
Displayed letter Function
C (clear) clears screen
L enables line mode («one-shot»). See also Section 0.
C / c (circle) selects large / small circle («one-shot»). See also Section
0.
A automatic arrow at end of freehand drawing. See also
Section 0.
D selects brush colour and thickness. See also Section 0.
Br1 / Br2 toggles between Brush1 and Brush2.
E erases unwanted portion of graphic. See also Section 0.
k / >k< keyer off / on. See also Section 0.
L calls the Library module where drawing, logos, …
can be saved.
L
<<< >>>
Line
Mark
Cue Out
C O A D Br1 E
Circle
C P
Play
Clear
Color
Thickness
Select Brush
Erase
0
Arrow
Clip
Information
00:00:00
Library Jog
S
SloMo
k
Keyer
on/off
Pause
Ellipse
00:00:00:00 0
L L
Live
