30.4.3 Viewing Host IP Address
In the Reports screen, select Host IP Address from the Report Type drop-down list box to
have the ZyWALL record and display the LAN, DMZ or WLAN IP addresses that the most
traffic has been sent to and/or from and how much traffic has been sent to and/or from those IP
addresses.
Note: Computers take turns using dynamically assigned LAN, DMZ or WLAN IP
addresses. The ZyWALL continues recording the bytes sent to or from a LAN,
DMZ or WLAN IP address when it is assigned to a different computer.

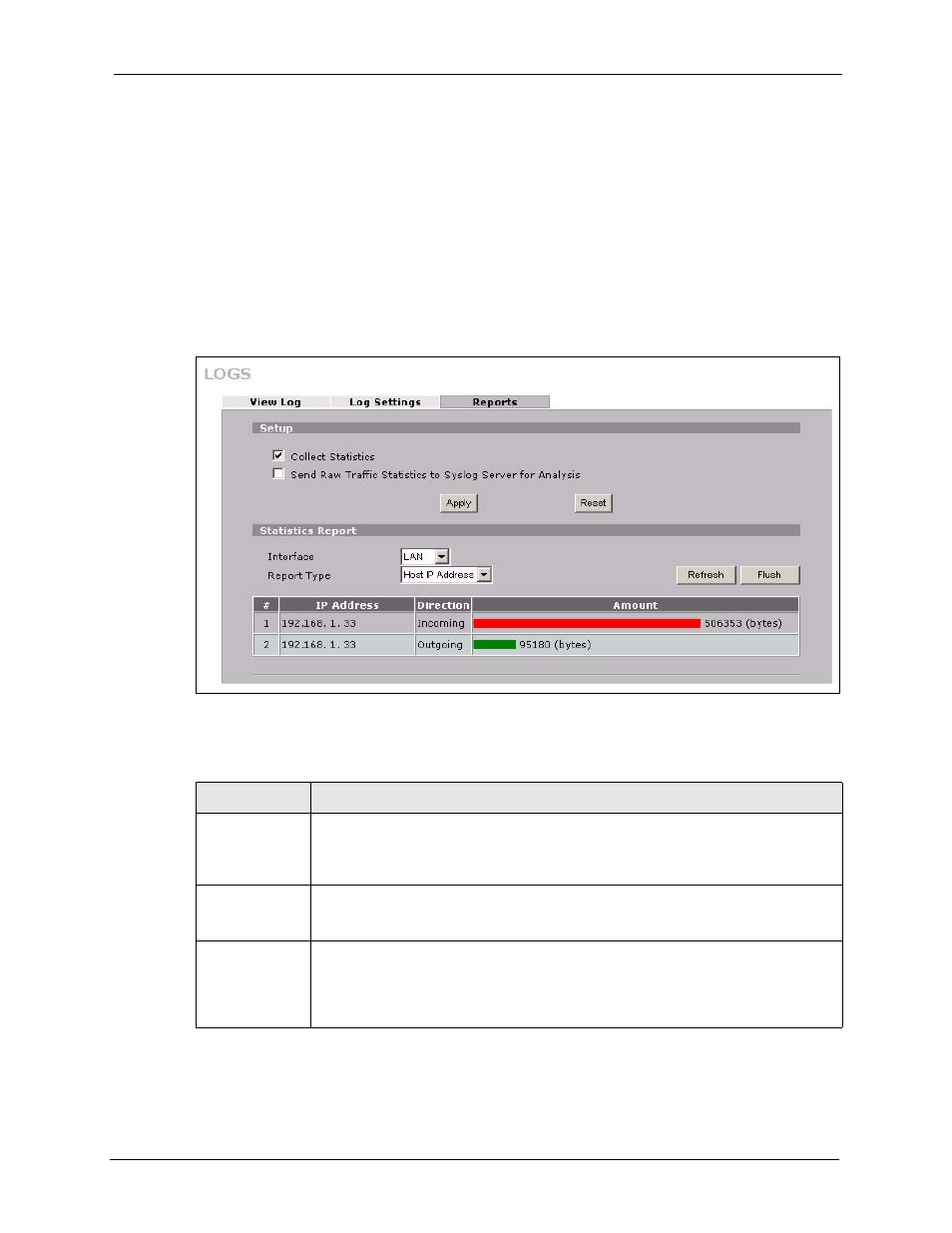

Figure 244 Host IP Address Report Example
The following table describes the labels in this screen.
Table 170 Host IP Address Report
LABEL DESCRIPTION
IP Address This column lists the LAN, DMZ or WLAN IP addresses to and/or from which the
most traffic has been sent. The LAN, DMZ or WLAN IP addresses are listed in
descending order with the LAN, DMZ or WLAN IP address to and/or from which the
most traffic was sent listed first.
Direction This field displays Incoming to denote traffic that is coming in from the WAN to the
LAN, DMZ or WLAN. This field displays Outgoing to denote traffic that is going out
from the LAN, DMZ or WLAN to the WAN.
Amount This column displays how much traffic has gone to and from the listed LAN, DMZ or
WLAN IP addresses. The measurement unit shown (bytes, Kbytes, Mbytes or
Gbytes) varies with the amount of traffic sent to and from the LAN, DMZ or WLAN IP
address. The count starts over at 0 if the total traffic sent to and from a LAN, DMZ or
WLAN IP passes the bytes count limit (see Table 171 on page 483 ).
