ZyWALL 5/35/70 Series User’s Guide
335 Chapter 19 VPN Screens
19.16 VPN SA Monitor
In the web configurator, click VPN and the SA Monitor tab. Use this screen to display and
manage active VPN connections.
A Security Association (SA) is the group of security settings related to a specific VPN tunnel.
This screen displays active VPN connections. Use Refresh to display active VPN
connections. This screen is read-only.

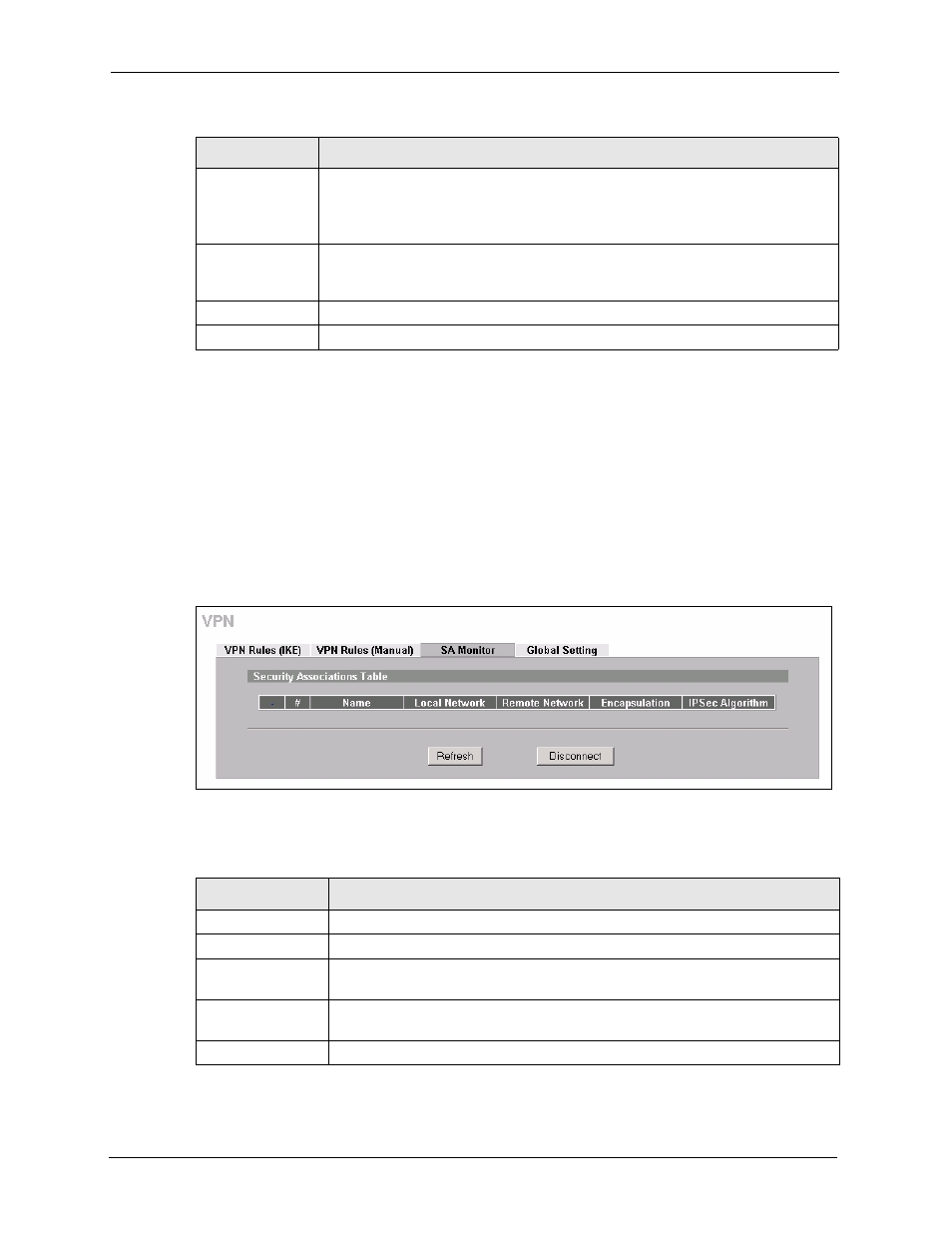

Figure 156 VPN: SA Monitor
The following table describes the labels in this screen.
Encryption Key This field is applicable when you select ESP in the Active Protocol field above.
With DES, type a unique key 8 characters long. With 3DES, type a unique key 24
characters long. Any characters may be used, including spaces, but trailing spaces
are truncated.
Authentication
Key
Type a unique authentication key to be used by IPSec if applicable. Enter 16
characters for MD5 authentication or 20 characters for SHA-1 authentication. Any
characters may be used, including spaces, but trailing spaces are truncated.
Apply Click Apply to save your changes back to the ZyWALL.
Cancel Click Cancel to exit this screen without saving.
Table 105 VPN Rules (Manual) Edit (continued)
LABEL DESCRIPTION
Table 106 VPN: SA Monitor
LABEL DESCRIPTION
# This is the security association index number.
Name This field displays the identification name for this VPN policy.
Local Network This field displays the IP address of the computer using the VPN IPSec feature of
your ZyWALL.
Remote Network This field displays IP address (in a range) of computers on the remote network
behind the remote IPSec router.
Encapsulation This field displays Tunnel or Transport mode.
