ZyWALL 5/35/70 Series User’s Guide
Chapter 11 Firewall Screens 222
11.8 Firewall Rule Summary
Click SECURITY, FIREWALL, then the Rule Summary tab to open the screen. This screen
displays a list of the configured firewall rules.
Note: The ordering of your rules is very important as rules are applied in turn.

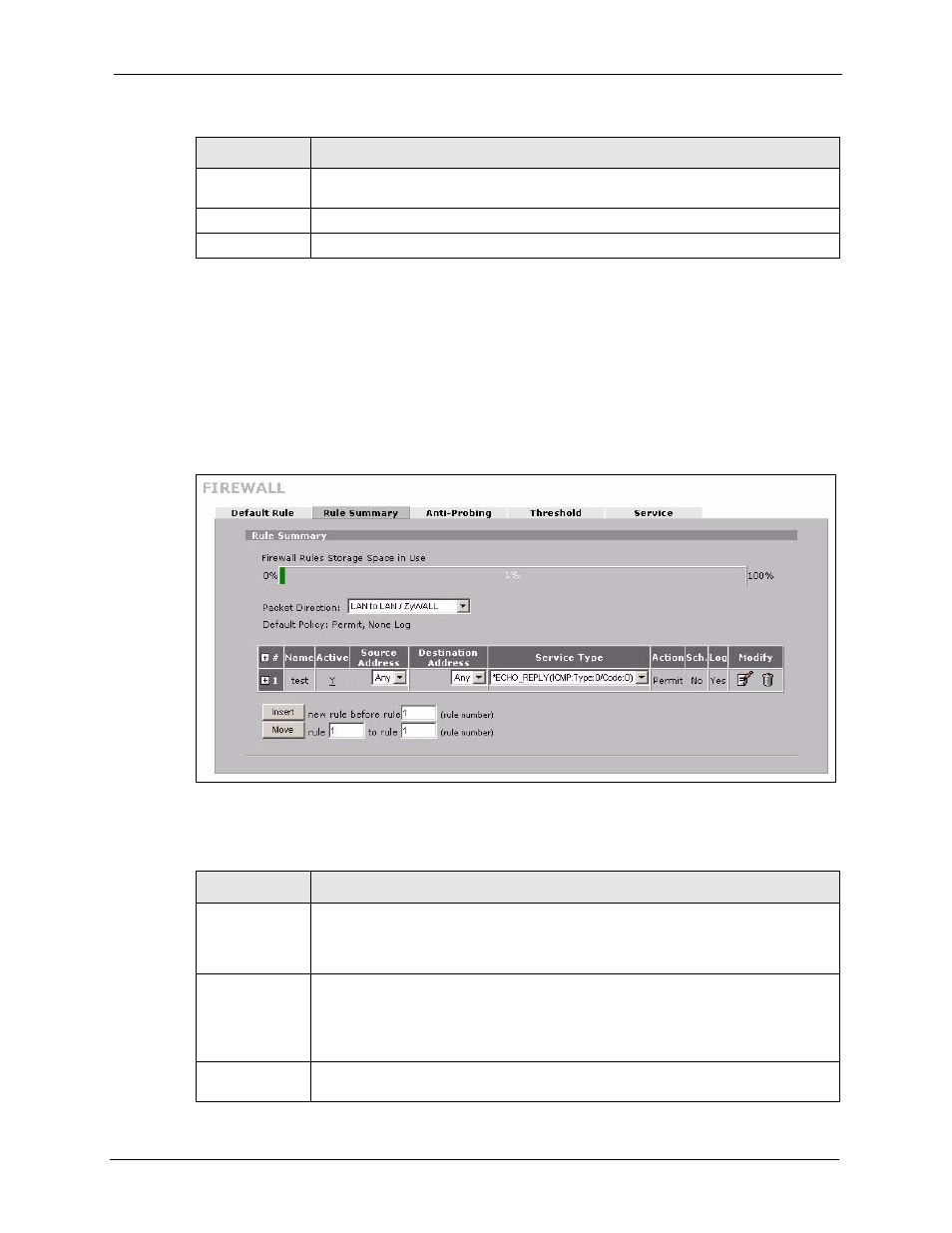

Figure 98 Rule Summary
The following table describes the labels in this screen.
Log Broadcast
Frame
Select the check box to create a log for any Layer 2 broadcast frames that are
traveling in the selected direction.
Apply Click Apply to save your changes back to the ZyWALL.
Reset Click Reset to begin configuring this screen afresh.
Table 68 Default Rule (Bridge Mode)
LABEL DESCRIPTION
Table 69 Rule Summary
LABEL DESCRIPTION
Firewall Rules
Storage Space
in Use
This bar displays the percentage of the ZyWALL’s firewall rules storage space that is
currently in use. The bar turns from green to red when the maximum is being
approached. When the bar is red, you should consider deleting unnecessary firewall
rules before adding more firewall rules.
Packet Direction Use the drop-down list box to select a direction of travel of packets (LAN to LAN/
ZyWALL, LAN to WAN, LAN to DMZ, LAN to WLAN, WAN to LAN, WAN to WAN/
ZyWALL, WAN to DMZ, WAN to WLAN, DMZ to LAN, DMZ to WAN, DMZ to
DMZ/ZyWALL, DMZ to WLAN, WLAN to LAN, WLAN to WAN, WLAN to DMZ or
WLAN to WLAN/ZyWALL) for which you want to configure firewall rules.
Default Policy This field displays the default action and log policy you selected in the Default Rule
screen for the packet direction shown in the field above.
