AW2400 Owner’s Manual
Parts of the AW2400 and what they do
Introducing the A
W2400
26
2
1 [IN 1-8] key
B
[IN 9-16] key
C [MASTER] key
D [TRACK 1-12] key
E [TRACK 13-24] key
Select the mixing layer to be operated by the [SEL] 1–12
keys, the [ON] 1–12 keys, and faders 1–12. The mixing
layers that can be controlled when each of these keys are
engaged are as follows:
F [REMOTE] key
This key accesses the REMOTE screen, where you can
use the front panel faders and [ON] keys to control an
external MIDI device or sequencer software on your com-
puter.

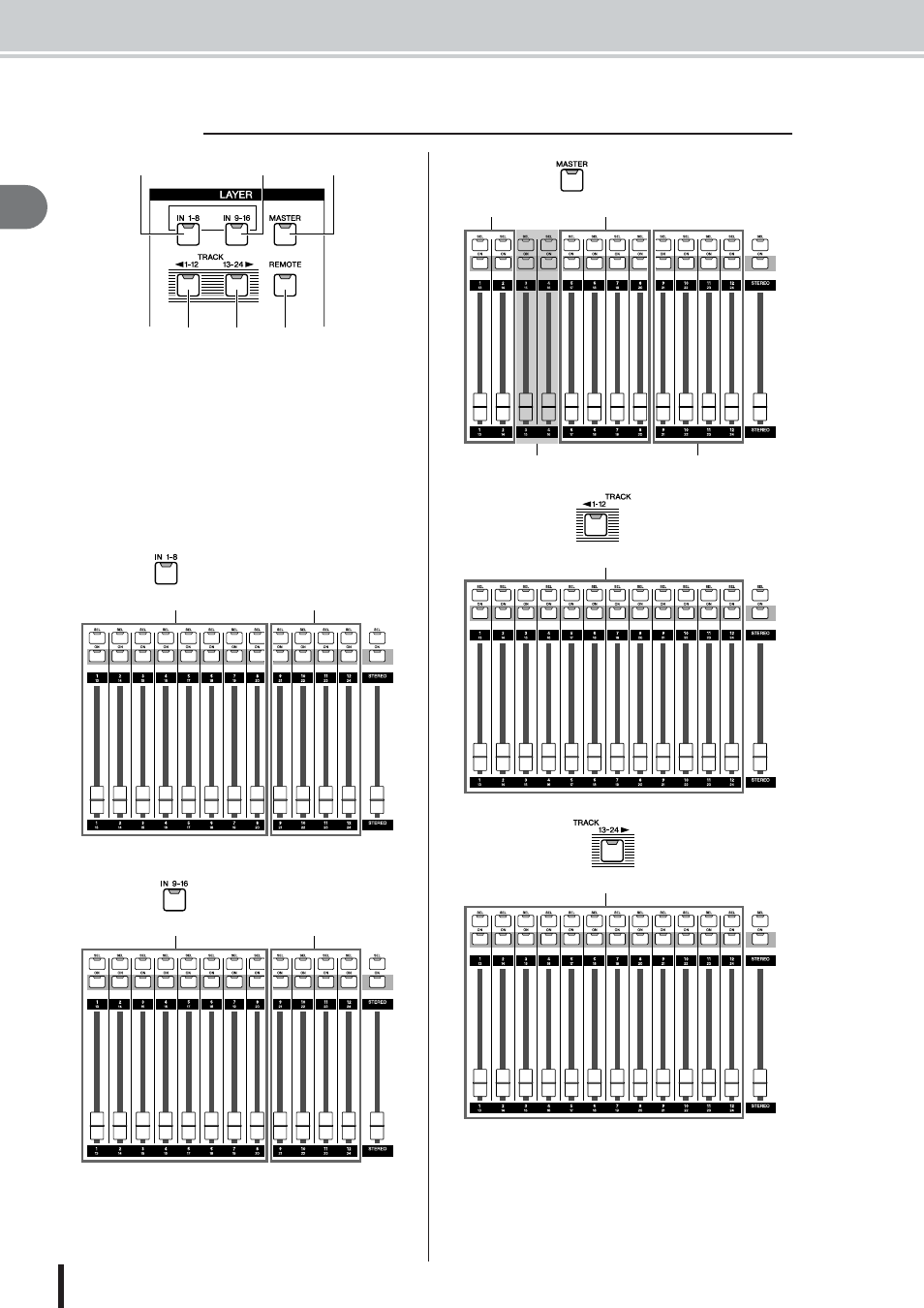

■ Layer section
5 D F
A B C
● [IN 1-8] key
Input channels 1–8 Effect Return channels 1–4
● [IN 9-16] key
Input channels 9–16 Effect Return channels 1–4
● [MASTER] key
Bus Master 1–2 AUX Send Master 1–4
No Control Effect Send Master 1–4
● [TRACK 1-12] key
Track channels 1–12
● [TRACK 13-24] key
Track channels 13–24
