204 Hardware Reference Manual
Intel
®
IXP2800 Network Processor
DRAM
The DRM Push Arbiter boundary conditions are:
• Make sure each of the push_request queues assert the full signal and back pressure the
requesting unit.
• Maintain 100% bus utilization, i.e., no holes.
5.12 DRAM Pull Arbiter Description
The general data flow for a push operation is as shown in Table 69 . The DRAM Pull Arbiter
functional blocks are shown in Figure 73 .
The pull arbiter is very similar to the push arbiter, except that it gathers the data from a data source
ID and delivers it to the requesting unit where it is written to DRAM memory.

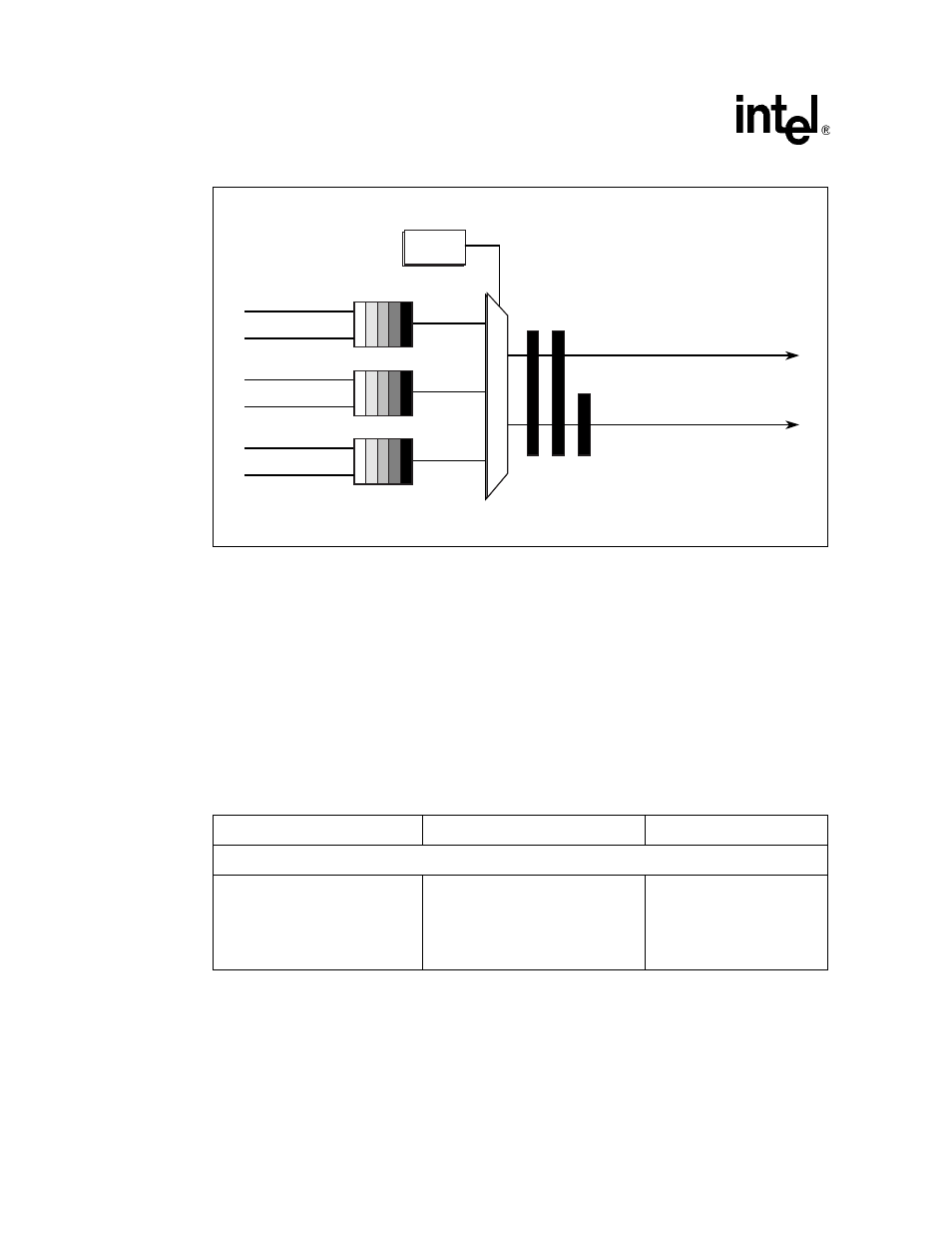

Figure 72. DRAM Push Arbiter Functional Blocks
A9732-01
D0_PUSH_REQ
DPXX_PUSH_ID
Round
Robin
A
R
B
I
T
E
R
D0_PUSH_ID
D1_PUSH_REQ
D1_PUSH_ID
D2_PUSH_REQ
D2_PUSH_ID
D0_PUSH_DATA
D1_PUSH_DATA
D2_PUSH_DATA
DPXX_PUSH_DATA
Table 69. DPLA Description
Pull Bus Master/Requestor Data Source Data Destination
IXP2800 Network Processor
D0 Unit
D1 Unit
D2 Unit
TC0 Cluster (Microengine 0 – 7)
TC1 Cluster (Microengine 8 – 15)
Intel XScale ® core
PCI Unit
MSF Unit
Current Master
