DS33Z41 Quad IMUX Ethernet Mapper
153 of 167

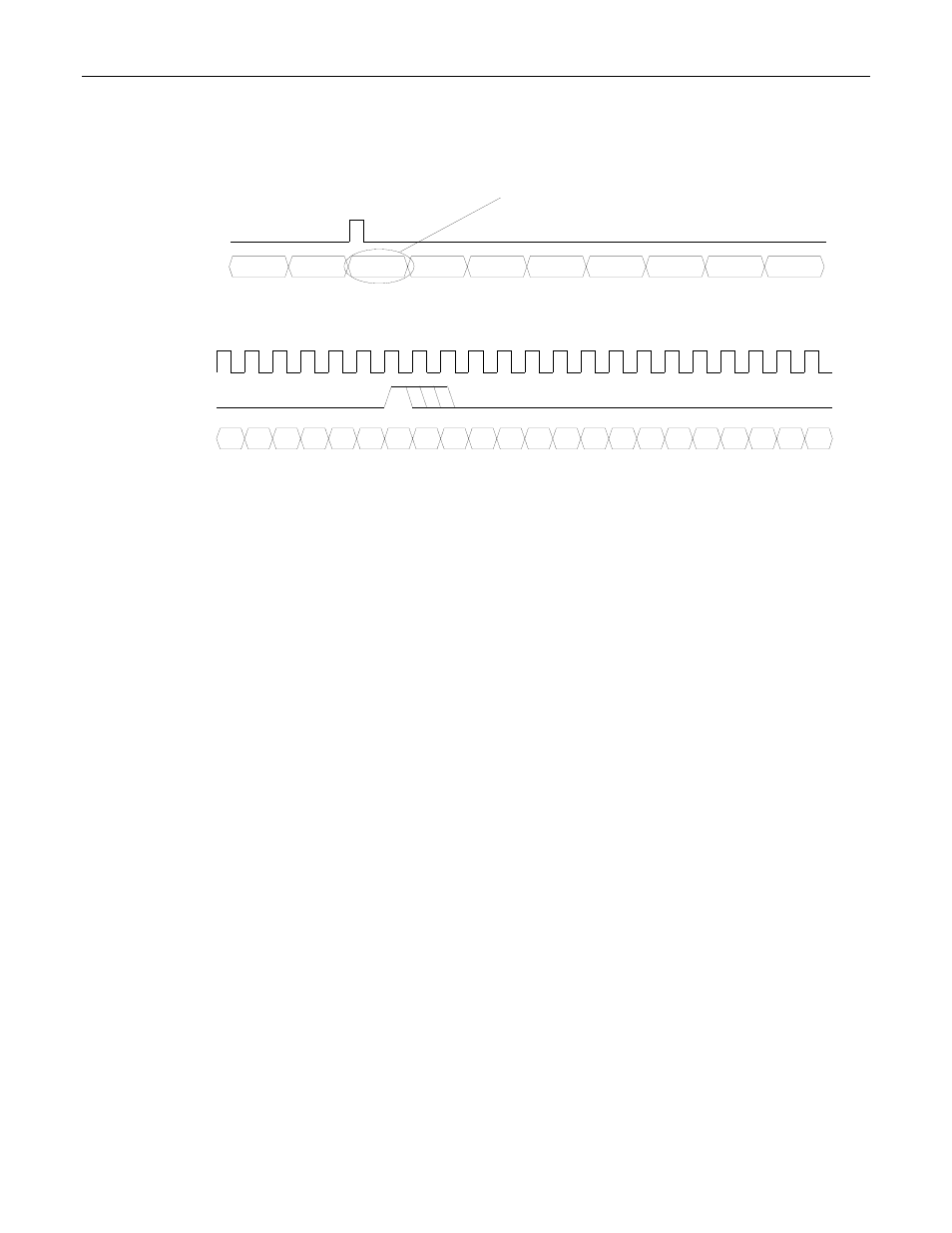

Figure 11-9. Receive IBO Channel Interleave Mode Timing
Note 1: 8.192MHz bus configuration.
Note 2: Data on unused channels must be filled with all ones.
RSER LSB
RCLKI
RSYNC
LINK 4, CHANNEL 32
MSB LSB
LINK 1, CHANNEL 1
MSB LSB
LINK 2, CHANNEL 1
RSYNC
RSER L3 C32 L4 C32 L1 C1 L2 C1 L3 C1 L4 C1 L1 C2 L2 C2 L3 C2 L4 C2
BIT LEVEL DETAIL
LINK #1, CHANNEL #1
